F ig . &
Index

Tektronix

Serial/Model No .

M fr
No .

P art No .

E ff

Dscont

Qty

1 2 3 4 5

N ame & Description

Code

M fr P art Number
2-1

334-5002-00

1

PLATE,IDENT :MKD TEKTRONIX

80009

334-5002-00
-2 426-1765-00

1 FRAME,CRT :

80009 426-1765-00
"""""""(ATTACHING
PARTS)"""""'
-3

211-0690-01

2

SCREW,MACHINE :6-32 Χ 0 .875 PNH,TORX DR,SLO

93907

OBD
""""""(END ATTACHING
PARTS)""""'
-4 337-2775-00

1 SHLD,IMPLOSION :

80009 337-2775-00
-5

366-1391-03

1

KNOB :DOVE GRAY,0
.081
ID Χ
0 .28 OD Χ 0 .32 Η

80009

366-1391-03
-6

366-2146-03

1

KNOB :DOVE GRAY,0 .235 ID Χ
0 .5 OD Χ0 .531 Η

80009

366-2146-03
-7

366-1833-01

4

KNOB :DOVE GRAY,0
.25
ID Χ
0 .392 OD Χ 0 .466

80009

366-1833-01
-8

366-1701-01

1

KNOB :GY,0 .127 ID Χ0 .392
OD
Χ
0 .

80009

366-1701-01
-9

210-0583-00

1

NUT,
ΡL ΑΙΝ , ΗΕΧ
:0 .25-32
Χ
0 .312 INCH,BRS

73743

2Χ 20317-402
-10

210-0021-00

1

WASHER, LOCK : INTL,0 .476 ID Χ
0 .60" ΟΟ ST

78189

1222-01-00-0541C
-11

366-2152-00

2

KNOB :DOVE GRAY,0
.284 ID Χ0 .392 OD Χ 0 .466

80009

366-2152-00
-12

366-2148-01

2

KNOB : G Υ ,V ΟLΤ S/DIV 0 .72
OD,0 .79H

80009

366-2148-01
-13

331-0328-00

1

DIAL,CONTROL :10 TURN
FOR 0 .25 DIA SHAFT

05129

461-S-70
-14

210-0840-00

1

WASHER, FLAT : 0 .39 ID Χ
0 .562 INCH OD,STL

89663

644R
-15

366-2013-00

9

PUSH,BUTTON :DIRTY
GRAY,0 .134 SO Χ0 .480

80009

366-2013-00
-16

366-2049-00

2

KNOB :GY,0 .712 ID Χ
0
.41
OD Χ 0 .496 H,W/BAR

80009

366-2049-00
-17

131-0126-00

2

CONNECTOR, R CPT, :BNC,FEMALE

77820

9663-1
NT-34
-18

366-2151-01

1

KNOBTLINT GRAY,0
.22 ID Χ 0 .392 OD Χ 0 .466

80009

366-2151-01
-19

210-0583-00

1

NUT,PLAIN,HEX :0 .25-32 Χ 0 .312 INCH,BRS

73743

2 Χ 20317-402
-20

366-1840-02

1

KNOB : G
Υ , ΤΙΜΕ
/DI V ,0 .127 ID Χ 0 .855

80009

366-1840-02
-21

366-1850-00

1

KNOB : CLΕΑ R ,0 .252 ID Χ 1 .2 OD Χ0

80009

366-1850-00
-22 131-0955-00

1 CONN,RCPT,ELEC
:BNC, FEMALE

13511 31-279
-23

210-0255-00

1

TERM
Ι
NAL,LUG :0 .391 ID,LOCKING,BRS CD PL

80009

210-0255-00
-24 333-2918-00

1 PANEL,FRONT :

80009 333-2918-00
-25 386-4850-00

1
SUBPANEL,FRONT :

80009
386-4850-00
"""""""(ATTACHING
PARTS)"""""'
-26

213-0881-00

3

SCREW,TAPPING
:6-32 Χ 0 .25 ΤΥΡΕ C

01536

OBD
-27

213-0882-00

2

SCREW,TAPPING
:6-32
Χ
0 .437 ΤΥΡΕ C

01536

OBD
""""""(END
ATTACHING PARTS)""""'
-28 348-0660-00

4 CUSHION,CRT :POLYURETHANE

80009 348-0660-00
-29

361-1192-00

1

S
PAC ER, SLEEVE : 0 .45 LΧ 0 .25 ID,AL

80009

361-1192-00
-30 407-2824-00

1 BRACKET,GROUND :PANEL

80009 407-2824-00
"""""""(ATTACHING
PARTS)"""""'
-31

210-0586-00

2

NUT,PL,ASSEM WA :4-40
Χ 0.25,STL

83385

OBD
""""""(END ATTACHING PARTS)""""'
-32

214-3375-00

2

LEVER,SWITCH
:AC-GND-DC, PLASTIC

80009

214-3375-00
-33 441-1631-00

1
CHASSIS,SCOPE :FRONT

80009
441-1631-00
-34

213-0881-00

4

SCREW,TAPPING
:6-32 Χ0 .25 ΤΥΡΕ C

01536

OBD
-35 386-4443-00

1
SUPPORT,SHIELD :CRT,FRONT, PLASTIC

80009
386-4443-00
-36

200-2519-00

1 .

CAP .,CRT SOCKET
:NATURAL LEXAN

80009

200-2519-00
-37 214-1061-05

1
SPAING,GROUND : PLATED

80009
214-1061-05
-38 426-1766-00

1 M OUNT,RESILIENT :CRT,REAR

80009 426-1766-00
-39

344-0347-00

1

CLIP, ELECTR ICAL : ANODE, 0 .72 OD,NYLON

80009

344-0347-00
-40

334-1379-00

1

LABEL : CRT,ADHESIVE B ACK

80009

334-1379-00
-41

334-1951-00

1

MARKER,IDENT :CRT W
ARNING

80009

334-1951-00
-42

337-2774-00

1

SHIELD, ELEC :CRT,STEEL

80009

337-2774-00
-43

----- -----

1

DELAY L INE,ELEC
:93NS,150 ΟΗΜ , Α SS Υ
----- -----

-

(SEEDL9210 CHASSIS
REPL)
-44

346-0121-00

2

STRARELEC
COMP :TIE DOWN,5 .0 L ONG

06383

PLC1
.51-S8
""""""'(ATTACHING
PARTS)"""""'
-45

213-0882-00

2

.SCREW,TAPPING
:6-32 Χ 0 .437 ΤΥΡΕ C

01536

OBD
""""'(END ATTACHING
PARTS)""""'
-46

346-0128-00

1

STRAP,TIE
DOWN :0 .1 W Χ 8 .0" L ONG,NYLON

06383

PLT2M
-47

136-0202-08

1

SKT,PL-1 Ν ELEK :ELECTRON
TUBE,14 CONTACT

80009

136-0202-08
-48

334-4251-00

1

MARKER,IDENT
:MKD CAUTION

80009

334-4251-00
-49

337-2772-00

1

SHIELD,ELEC :POWER
SUPPLY,AL

80009

337-2772-00
"""""""(ATTACHING
PARTS)"""""'
-50

211-0304-00

3

SCREW, MACHINE :4-40
Χ 0 .312, ΡΝΗ

01536

OBD
""""""(END
ATTACHING PARTS)""""'
-51

348-0555-00

1

GROMMET,PLASTIC
:SIL GY,U SHAPE,0 .52 ID

80009

348-0555-00
-52

344-0334-00

1

CLIRCIRCUIT B
D :PLASTIC

80009

344-0334-00
REVΜΑΥ
1983

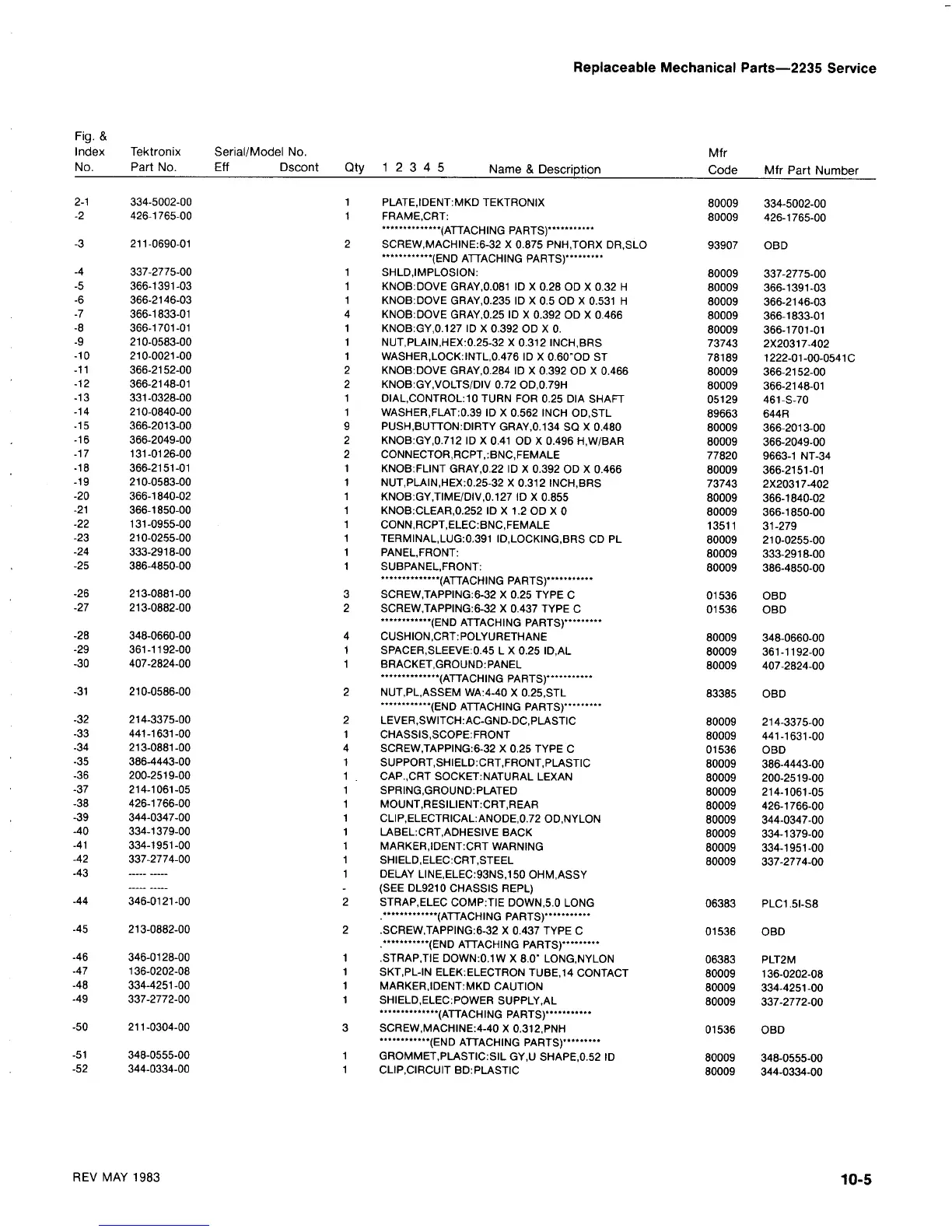

R e p lacea b le Mec h a nical P arts-2235
Service
10- 5

Tektronix 2235 Specifications

General

Bandwidth	100 MHz
Channels	2
Vertical Sensitivity	2 mV/div to 5 V/div
Maximum Input Voltage	400 V (DC + AC peak)
Rise Time	3.5 ns
Vertical Resolution	8 bit
Input Impedance	1 MΩ || 20 pF
Power Requirements	90 to 250 V AC, 48 to 440 Hz
Trigger Modes	Auto, Normal, Single
Display	CRT
Weight	17 lb (7.7 kg)
