Controls, Connectors, and Indicators
Word
Recognizer
Probe
Connector or
Probe Power
Connects the 17-Bit Word Recognizer Probe to the
instrument, only with the available WR (Option 09), or
supplies conditioned dc voltages to active probes, only
with Option 11.
L57)
WORD Provides an LSTTL-compatible, positive-going pulse
RECOG OUT when the Word Recognizer detects the selected word,
Connector or only with the available WR (Option 09), or supplies
Probe Power conditioned dc voltages to active probes, only with
Option 11.
58) GPIB
Connector
Provides the IEEE Std 488-1978 compatible electrical
and mechanical connection to the GPIB.
6860-08

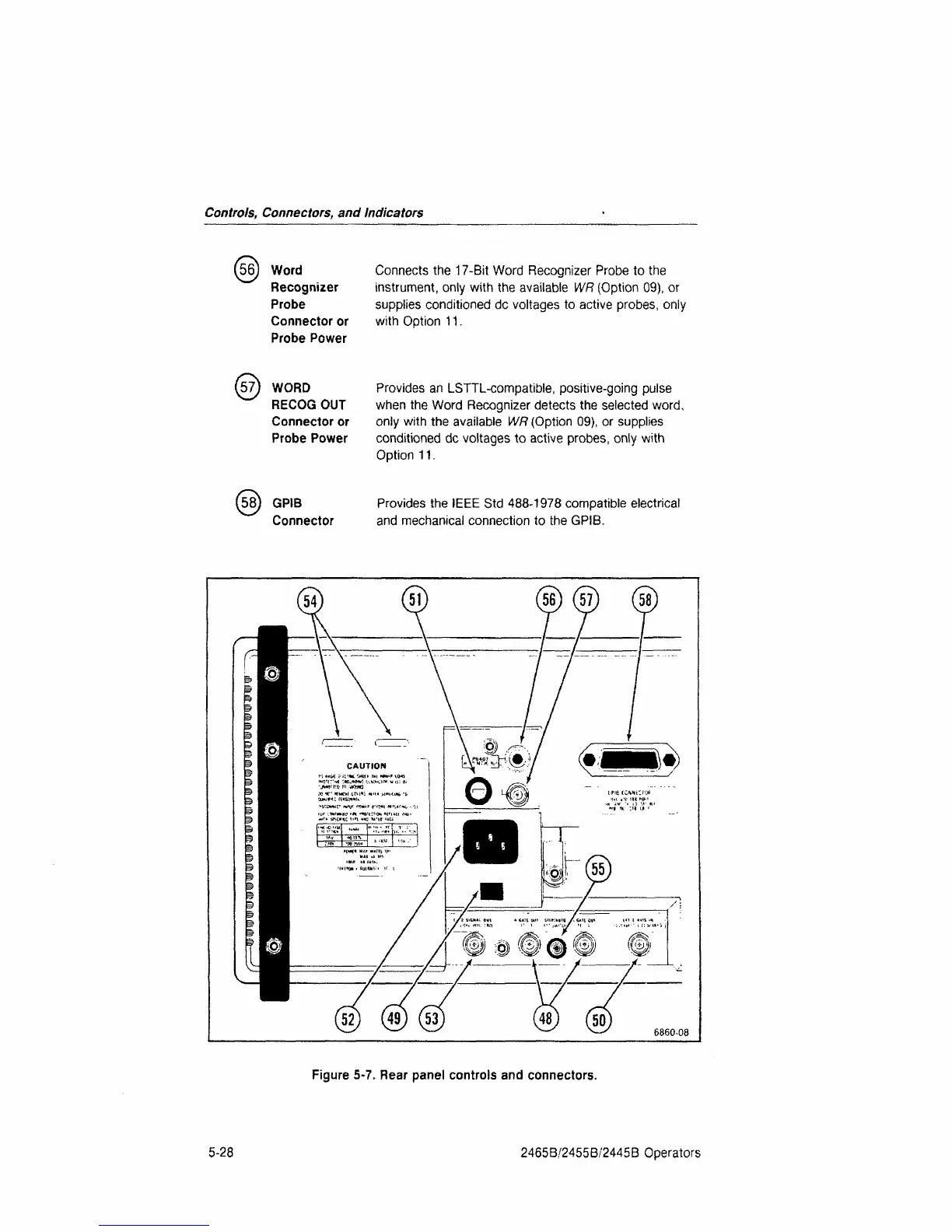

Figure 5-7. Rear panel controls and connectors.
5-28
2465B/2455B/2445B Operators
