Tektronix 2445B User Manual

Product: 2465B/2455B/2445B Oper Date: JJZ=G5=:9Ghange Reference: M73QQ9

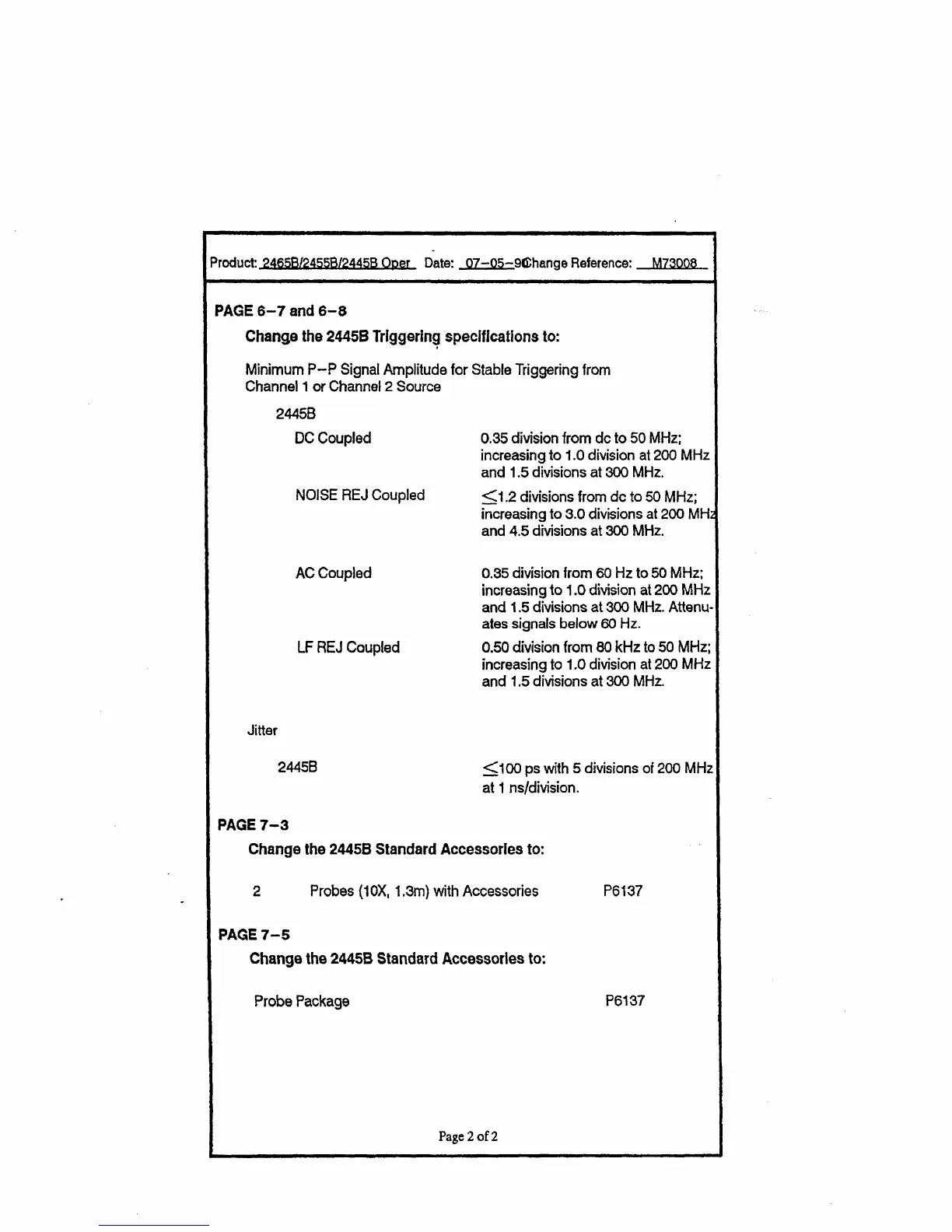

PAGE 6-7 and 6-8
Change the 2445B Triggering specifications to:
Minimum P-P Signal Amplitude for Stable Triggering from
Channel 1 or Channel 2 Source
2445B
DC Coupled
NOISE REJ Coupled
AC Coupled
LF REJ Coupled
Jitter
2445B
0.35 division from dc to 50 MHz;
increasing to 1.0 division at 200 MHz
and 1.5 divisions at 300 MHz.
<1.2 divisions from dc to 50 MHz;
increasing to 3.0 divisions at 200 MHz
and 4.5 divisions at 300 MHz.
0.35 division from 60 Hz to 50 MHz;
increasing to 1.0 division at 200 MHz
and 1.5 divisions at 300 MHz. Attenu-
ates signals below 60 Hz.
0.50 division from 80 kHz to 50 MHz;
increasing to 1.0 division at 200 MHz
and 1.5 divisions at 300 MHz.
<100 ps with 5 divisions of 200 MHz
at 1 ns/division.
PAGE 7-3
Change the 2445B Standard Accessories to:
2 Probes (1 OX, 1,3m) with Accessories
PAGE 7-5
Change the 2445B Standard Accessories to:
Probe Package
P6137
P6137
Page 2 of 2
