Operation

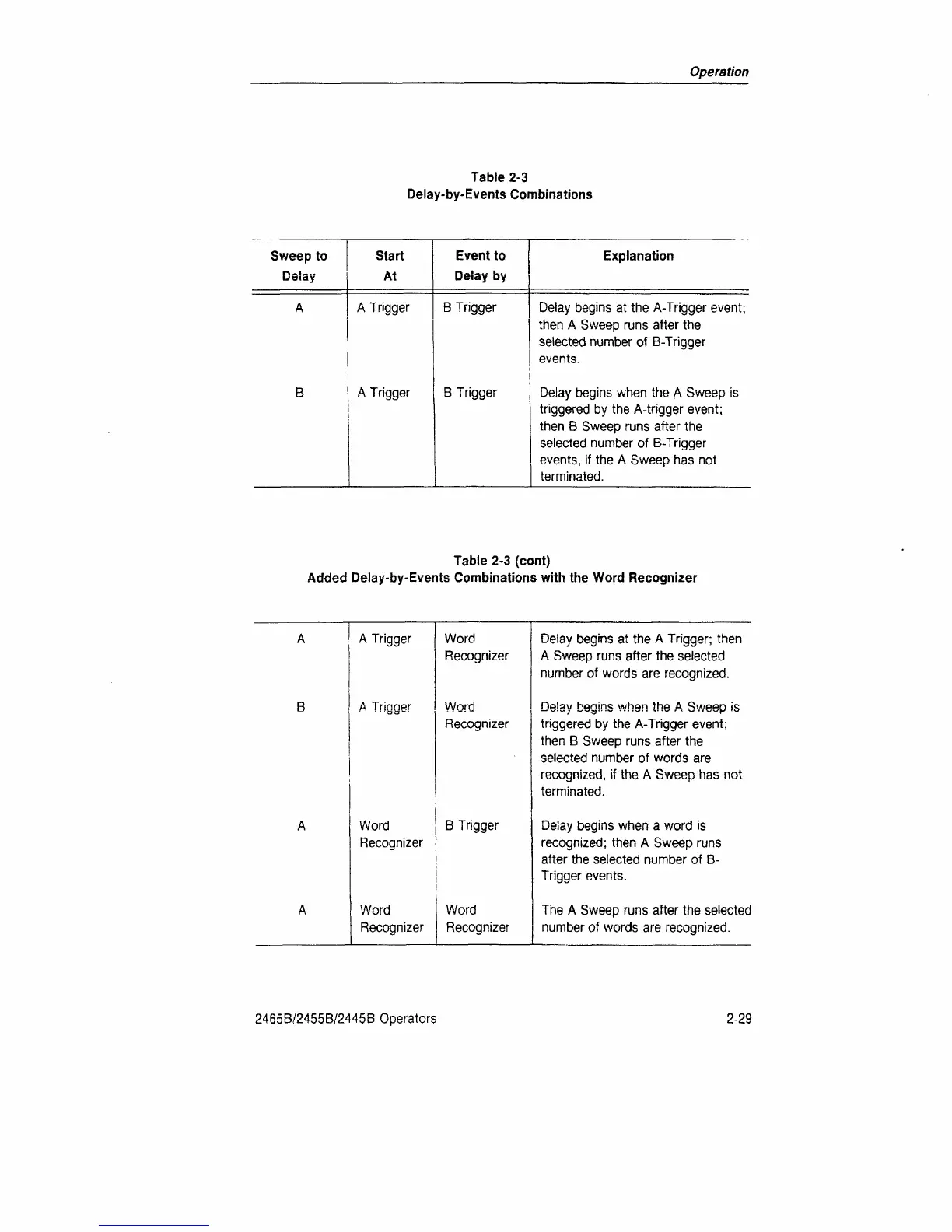

Table 2-3
Delay-by-Events Combinations
Sweep to
Delay
A
B
Start
Ml
A Trigger
A Trigger
Event to
Delay by
B Trigger
B Trigger
Explanation
Delay begins at the A-Trigger event;
then A Sweep runs after the
selected number of
B-Trigger
events.
Delay begins when the A Sweep is
triggered by the A-trigger event;
then B Sweep runs after the
selected number of
B-Trigger
events, if the A Sweep has not
terminated.
Table 2-3 (cont)
Added Delay-by-Events Combinations with the Word Recognizer
A
B
A
A
A Trigger
A Trigger
Word
Recognizer
Word
Recognizer
Word
Recognizer
Word
Recognizer
B Trigger
Word
Recognizer
Delay begins at the A Trigger; then
A Sweep runs after the selected
number of words are recognized.
Dplav hpnin<: whon thp A £u«apn ic
triggered by the A-Trigger event;
then B Sweep runs after the
selected number of words are
recognized, if the A Sweep has not
terminated.
Delay begins when a word is
recognized; then A Sweep runs
after the selected number of B-
Trigger events.
The A Sweep runs after the selected
number of words are recognized.
2465B/2455B/2445B Operators
2-29
