Tektronix 2465B Operator's Manual

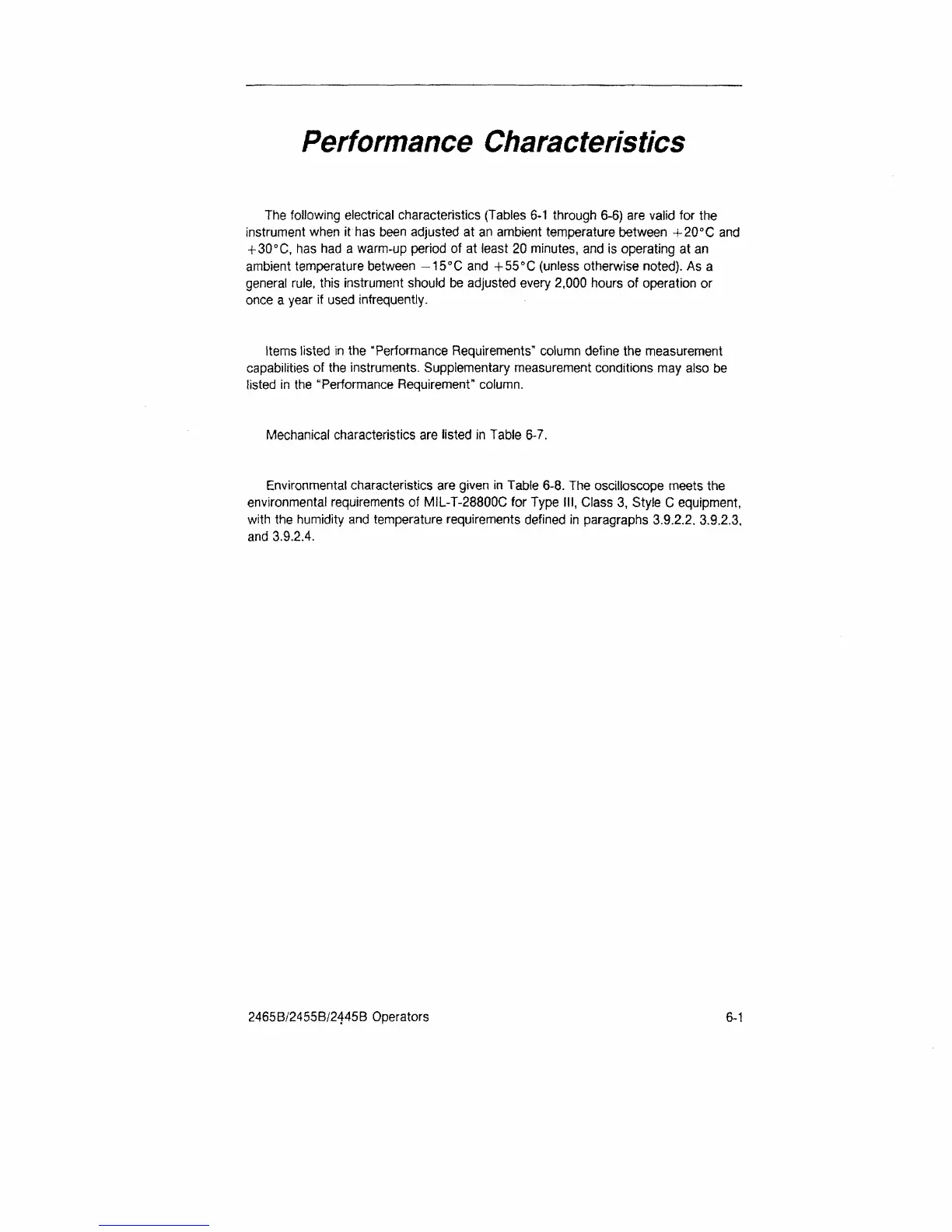

Performance Characteristics
The following electrical characteristics (Tables 6-1 through 6-6) are valid for the
instrument when it has been adjusted at an ambient temperature between + 20°C and
+30°C, has had a warm-up period of at least 20 minutes, and is operating at an
ambient temperature between -15°C and +55°C (unless otherwise noted). As a
general rule, this instrument should be adjusted every 2,000 hours of operation or
once a year if used infrequently.
Items listed in the "Performance Requirements" column define the measurement
capabilities of the instruments. Supplementary measurement conditions may also be
listed in the "Performance Requirement" column.
Mechanical characteristics are listed in Table 6-7.
Environmental characteristics are given in Table 6-8. The oscilloscope meets the
environmental requirements of MIL-T-28800C for Type III, Class 3, Style C equipment,
with the humidity and temperature requirements defined in paragraphs 3.9.2.2. 3.9.2.3,
and 3.9.2.4.
2465B/2455B/2445B Operators
6-1

Tektronix 2465B Specifications

General

Bandwidth	400 MHz
Channels	4
Vertical Sensitivity	2 mV/div to 5 V/div
Maximum Input Voltage	400 V (DC + peak AC)
Display	CRT
Trigger Modes	Auto, Normal, Single
Time Base Range	500 ps/div to 0.5 s/div
Rise Time	875 ps
Power Supply	48 to 440 Hz
Dimensions	495 mm
