Tektronix 2465B Operator's Manual

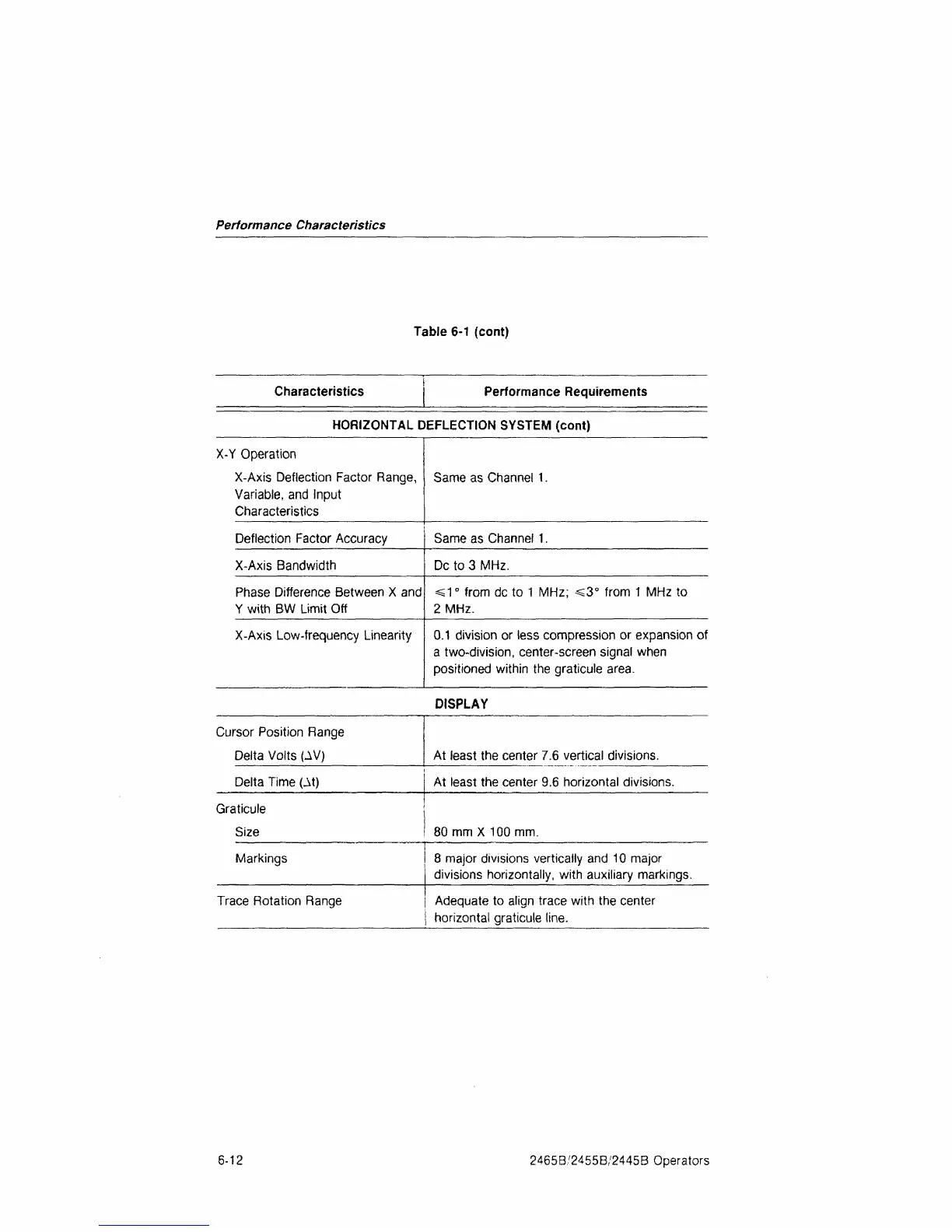

Performance Characteristics
Table 6-1 (cont)
Characteristics Performance Requirements
HORIZONTAL DEFLECTION SYSTEM (cont)
X-Y Operation
X-Axis Deflection Factor Range,
Variable, and Input
Characteristics
Deflection Factor Accuracy
X-Axis Bandwidth
Phase Difference Between X and
Y with BW Limit Off
X-Axis Low-frequency Linearity
Same as Channel 1.
Same as Channel 1.
Dc to 3 MHz.
*£1 ° from dc to 1 MHz; <3° from 1 MHz to
2 MHz.
0.1 division or less compression or expansion of
a two-division, center-screen signal when
positioned within the graticule area.
DISPLAY
Cursor Position Range
Delta Volts (AV) At least the center 7.6 vertical divisions.
Delta Time (At)
At least the center 9.6 horizontal divisions.
Graticule j
Size I 80 mm X 100 mm.
Markings
Trace Rotation Range
8 major divisions vertically and 10 major
divisions horizontally, with auxiliary markings.
Adequate to align trace with the center
horizontal graticule line.
6-12
2465B/2455B/2445B Operators

Tektronix 2465B Specifications

General

Bandwidth	400 MHz
Channels	4
Vertical Sensitivity	2 mV/div to 5 V/div
Maximum Input Voltage	400 V (DC + peak AC)
Display	CRT
Trigger Modes	Auto, Normal, Single
Time Base Range	500 ps/div to 0.5 s/div
Rise Time	875 ps
Power Supply	48 to 440 Hz
Dimensions	495 mm
