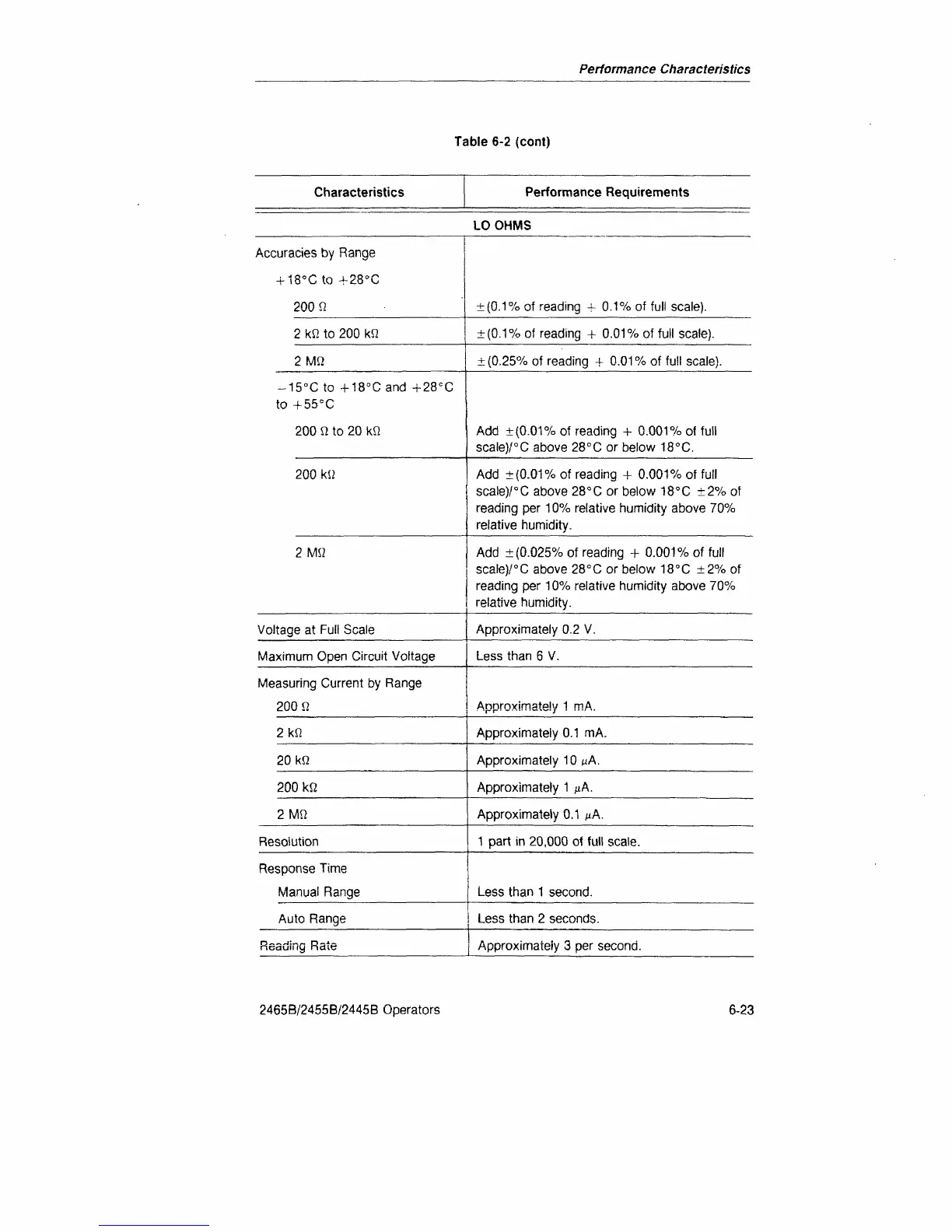

Performance Characteristics
Table 6-2 (cont)
Characteristics
Performance Requirements
LO OHMS
Accuracies by Range
+ 18°C to -f28°C
200
Q
±(0.1%
of reading +
0.1%
of full scale).
2 kfi to 200 kfi
:(0.1%
of reading +
0.01%
of full scale).
2 MQ
:
(0.25%
of reading +
0.01 %
of full scale).
-15°C to + 18°Cand +28
C
C
to +55°C
200 fl to 20 kfi
Add
±(0.01%
of reading +
0.001%
of full
scale)/
0
C above 28°C or below 18°C.
200
kS2
Add
±(0.01%
of reading +
0.001%
of full
scale)/°C above 28°C or below 18°C ±2% of
reading per 10% relative humidity above 70%
relative humidity.
2IVU2
Add ±(0.025% of reading +
0.001%
of full
scale)/°C above 28°C or below 18°C ±2% of
reading per 10% relative humidity above 70%
relative humidity.
Voltage at Full Scale
Maximum Open Circuit
Voltage
Measuring Current by Range
200
9.
2kfl
20 kfl
200 kfi
2MQ
Resolution
Response Time
Manual Range
Auto Range
Reading Rate
Approximately 0.2 V.
Less than 6 V.
Annrnvirnatoly 1 mA
Approximately 0.1 mA.
Approximately 10 ^A.
Approximately
1
juA.
Approximately 0.1 MA.
1 part in 20,000 of full scale.
Less than
1
second.
Less than 2 seconds.
Approximately 3 per second.
