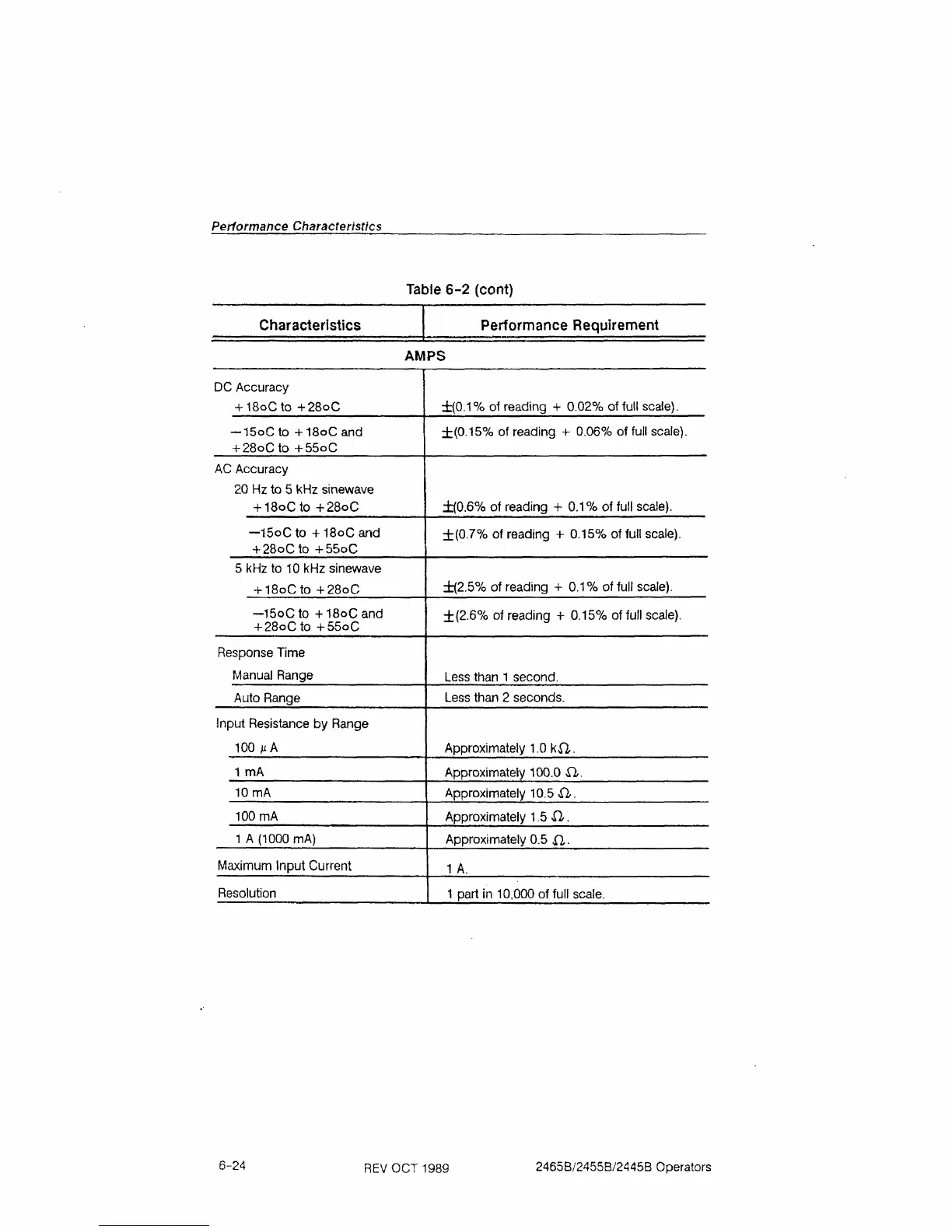

Performance Characteristics
Table 6-2 (cont)
Characteristics
Performance Requirement
AMPS
DC Accuracy
+ 18oCto +28oC
15oCto +18oCand
+ 28oCto +55oC
AC Accuracy
20 Hz to 5 kHz sinewave
+ 18oCto +28oC
-15oCto +18oCand
+ 28oCto +55oC
5 kHz to 10 kHz sinewave
+ l8oCto +28oC
-l5oCto +18oCand
+ 28oCto +55oC
Response Time
Manual Range
Auto Range
Input Resistance by Range
100 jiA
1 mA
10 mA
100 mA
1 A (1000 mA)
Maximum Input Current
Resolution
±(0.1%
of reading + 0.02% of full scale).
±(0.15%
of reading + 0.06% of full scale).
±(0.6%
of reading +
0.1%
of full scale).
±(0.7%
of reading + 0.15% of full scale).
±(2.5%
of reading + 0.1% of full scale).
±(2.6%
of reading + 0.15% of full scale).
Less than 1 second.
Less than 2 seconds.
Approximately 1.0 KQ,.
Approximately 100.0 il.
Approximately 10.5 £1.
Approximately 1.5 £1.
Approximately 0.5 £l.
1 A.
1 part in 10,000 of full scale.
6-24
REV OCT 1989
