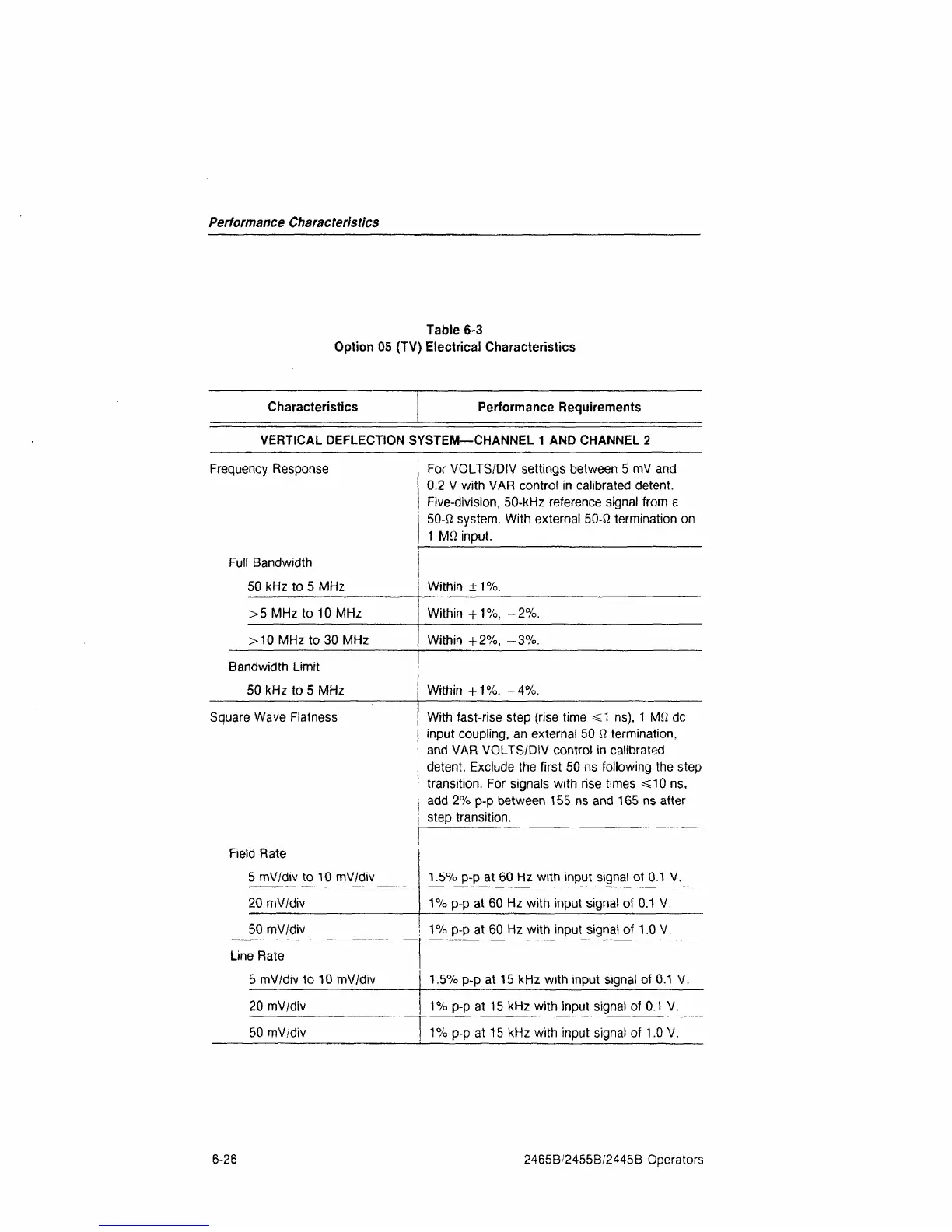

Performance Characteristics
Table 6-3
Option 05 (TV) Electrical Characteristics
Characteristics
Performance Requirements
VERTICAL DEFLECTION SYSTEM—CHANNEL
1
AND CHANNEL 2
Frequency Response
Full Bandwidth
50 kHz
to 5
MHz
>5 MHz
to
10 MHz
>10 MHz
to
30 MHz
Bandwidth Limit
50 kHz
to 5
MHz
Square Wave Flatness
Field Rate
5 mV/div
to 10
mV/div
20 mV/div
50 mV/div
For VOLTS/DIV settings between
5 mV and
0.2
V
with
VAR
control
in
calibrated detent.
Five-division, 50-kHz reference signal from
a
50-12 system. With external 50-Q termination
on
1
Mil
input.
Within ±1%.
Within +1%,
-2%.
Within
+2%, -3%.
Within +1%,
-4%.
With fast-rise step (rise time =ss1
ns), 1 Mil dc
input coupling,
an
external
50 0
termination,
and
VAR
VOLTS/DIV control
in
calibrated
detent. Exclude
the
first
50 ns
following
the
step
transition.
For
signals with rise times
<10 ns,
add
2% p-p
between
155 ns and 165 ns
after
step transition.
1.5%
p-p at 60 Hz
with input signal
of
0.1
V.
1%
p-p at 60 Hz
with input signal
of
0.1
V.
1%
p-p at 60 Hz
with input signal
of 1.0 V.
Line Rate
5mV/div
to 10
mV/div
20 mV/div
50 mV/div
1.5%
p-p at 15 kHz
with input signal
of
0.1
V.
1%
p-p at 15 kHz
with input signal
of
0.1
V.
1%
p-p at 15 kHz
with input signal
of 1.0 V.
6-26
2465B/2455B/2445B Operators
