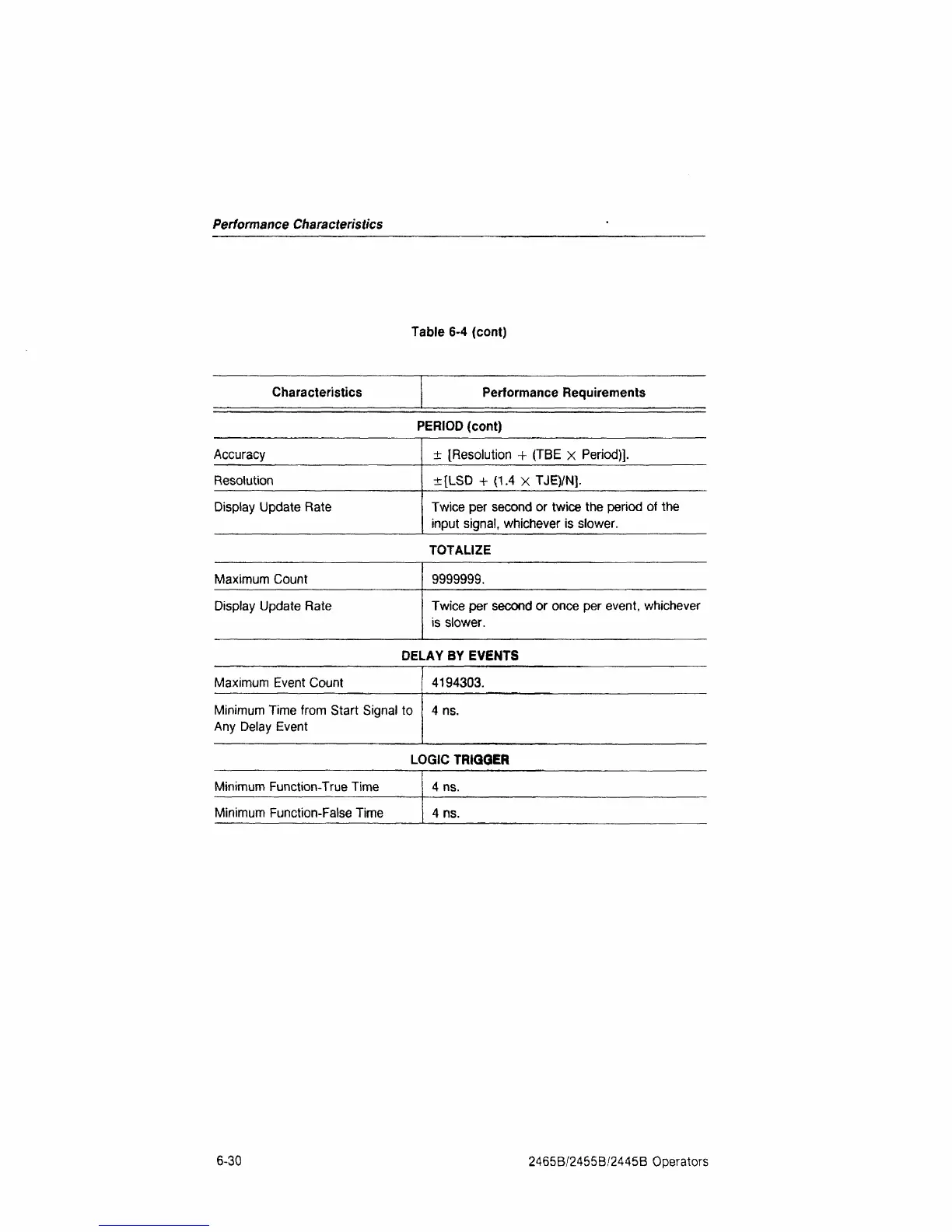

Performance Characteristics
Table 6-4 (cont)
Characteristics Performance Requirements
PERIOD (cont)
Accuracy
Resolution
Display Update Rate
± [Resolution + (TBE x Period)].
±[LSD + (1.4 X TJE)/N].
Twice per second or twice the period of the
input signal, whichever is slower.
TOTALIZE
Maximum Count
Display Update Rate
9999999.
Twice per second or once per event, whichever
is slower.
DELAY BY EVENTS
Maximum Event Count
Minimum Time from Start Signal to
Any Delay Event
4194303.
4 ns.
LOGIC TRIGGER
Minimum Function-True Time
Minimum Function-False Time
4 ns.
4 ns.
6-30
2465B/2455B/2445B Operators
