Performance Characteristics

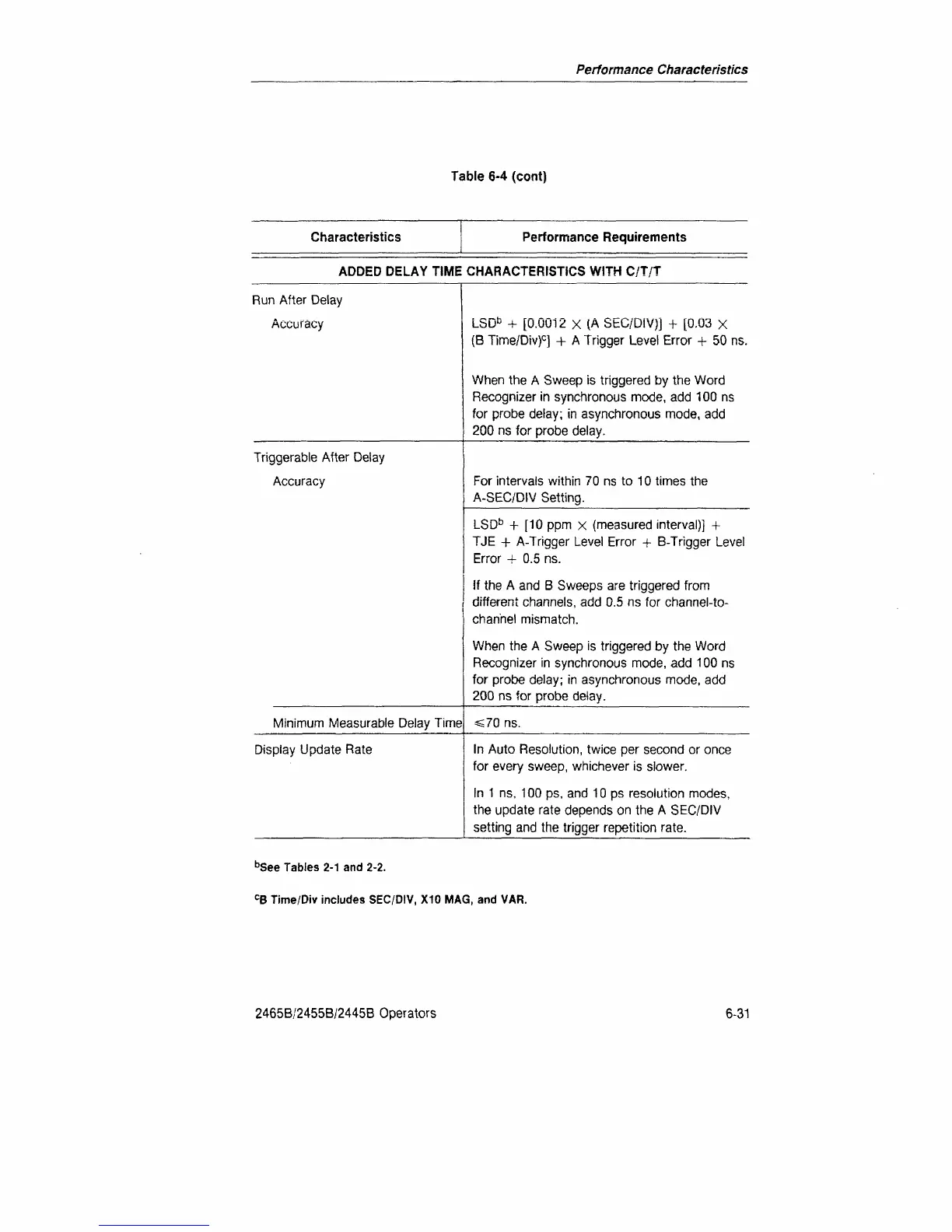

Table 6-4 (cont)
Characteristics Performance Requirements
ADDED DELAY TIME CHARACTERISTICS WITH C/T/T
Run After Delay
Accuracy
Triggerable After Delay
Accuracy
Minimum Measurable Delay Time
LSD
b
4- [0.0012 X (A StU/UiVjj + [0.03 X
(B Time/Div)
c
] + A Trigger Level Error + 50 ns.
When the A Sweep is triggered by the Word
Recognizer in synchronous mode, add 100 ns
for probe delay; in asynchronous mode, add
200 ns for probe delay.
For intervals within 70 ns to 10 times the
A-SEC/DIV Setting.
LSD
b
+ [10 ppm x (measured interval)] +
TJE + A-Trigger Level Error + B-Trigger Level
Error + 0.5 ns.
if the A and B Sweeps are triggered from
different channels, add 0.5 ns for channel-to-
channel mismatch.
When the A Sweep is triggered by the Word
Recognizer in synchronous mode, add 100 ns
for probe delay; in asynchronous mode, add
200 ns for probe delay.
«70 ns.
Display Update Rate In Auto Resolution, twice per second or once
for every sweep, whichever is slower.
In 1 ns, 100 ps, and 10 ps resolution modes,
the update rate depends on the A SEC/DIV
setting and the trigger repetition rate.
b
See Tables 2-1 and 2-2.
C
B Time/Div includes SEC/DIV, X10 MAG, and VAR.
2465B/2455B/2445B Operators
6-31
