Performance Characteristics

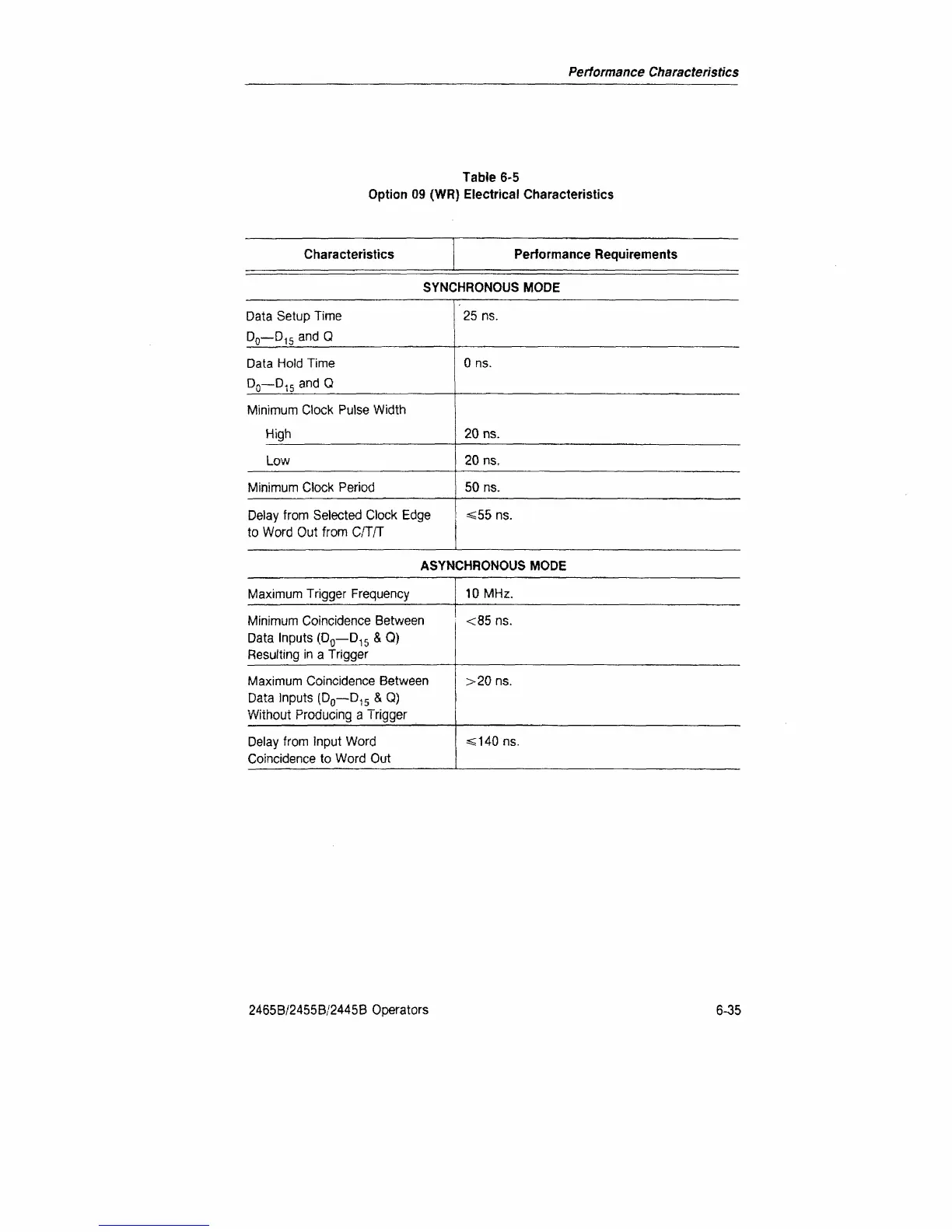

Table 6-5
Option 09 (WR) Electrical Characteristics
Characteristics Performance Requirements
SYNCHRONOUS MODE
Data Setup Time
D
0
—D
15
and Q
Data Hold Time
D
0
—D
15
and Q
Minimum Clock Pulse Width
High
Low
Minimum Clock Period
Delay from Selected Clock Edge
to Word Out from C/T/T
25 ns.
0 ns.
20 ns.
20 ns.
50 ns.
«55 ns.
ASYNCHRONOUS MODE
Maximum Trigger Frequency
Minimum Coincidence Between
Data Inputs (D
0
—D
15
& Q)
Resulting in a Trigger
Maximum Coincidence Between
Data Inputs (D
0
—D
15
& Q)
Without Producing a Trigger
Delay from Input Word
Coincidence to Word Out
10 MHz.
<85 ns.
>20 ns.
*s140 ns.
2465B/2455B/2445B Operators
6-35
