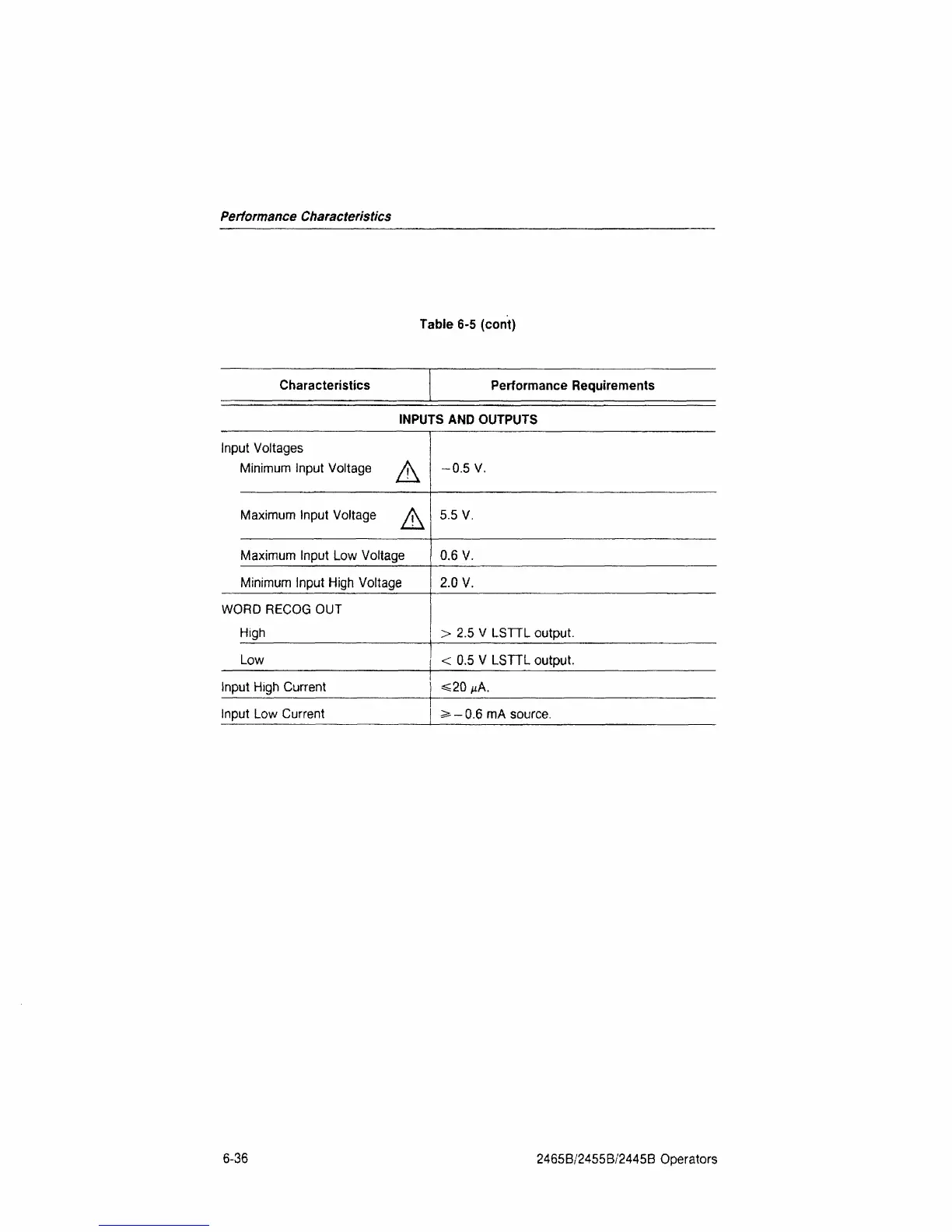

Performance Characteristics
Table 6-5 (cont)
Characteristics Performance Requirements
INPUTS AND OUTPUTS
Input Voltages
Minimum Input Voltage /K
Maximum Input Voltage /\
Maximum Input Low Voltage
Minimum Input High Voltage
WORD RECOG OUT
High
Low
Input High Current
Input Low Current
-0.5 V.
5.5 V.
0.6 V.
2.0 V.
> 2.5 V LSTTL output.
< 0.5 V LSTTL output.
^20
M
A.
> - 0.6 mA source.
