Performance Characteristics

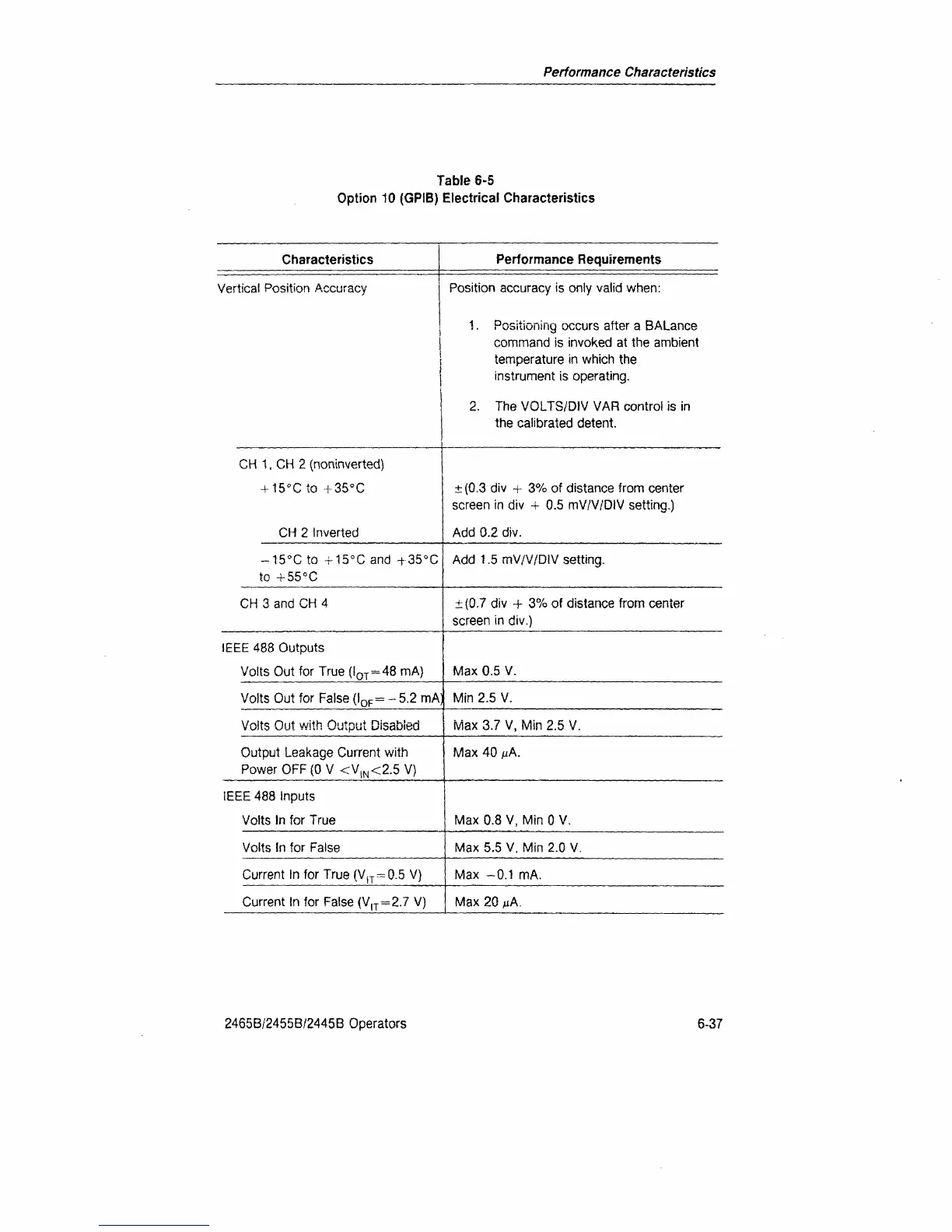

Table 6-5
Option 10 (GPIB) Electrical Characteristics
Characteristics
Performance Requirements
Vertical Position Accuracy
Position accuracy is only valid when:
1. Positioning occurs after a BALance
command is invoked at the ambient
temperature in which the
instrument is operating.
2. The VOLTS/DIV VAR control is in
the calibrated detent.
CH 1, CH 2 (noninverted)
+ 15°C to -f35°C
CH 2 Inverted
-15°C to + 15°C and +35°C
to + 55°C
CH 3 and CH 4
IEEE 488 Outputs
Volts Out for True (l
OT
= 48 mA)
Volts Out for False (l
0F
= - 5.2 mA)
Volts Out with Output Disabled
Output Leakage Current with
Power OFF (0 V <V
|N
<2.5 V)
IEEE 488 Inputs
Volts In for True
Volts In for False
Current In for True (V
iT
-0.5 V}
Current In for False (V
(T
-2.7 V)
± (0.3 div -f 3% of distance from center
screen in div + 0.5 mV/V/DIV setting.)
Add 0.2 div.
Add 1.5 mV/V/DIV setting.
±(0.7 div + 3% of distance from center
screen in div.)
Max 0.5 V.
Min 2.5 V.
Max 3.7 V, Min 2.5 V.
Max 40 fiA.
Max 0.8 V, Min 0 V.
Max 5.5 V, Min 2.0 V.
Max -0.1 mA.
Max 20 MA.
2465B/2455B/2445B Operators
6-37
