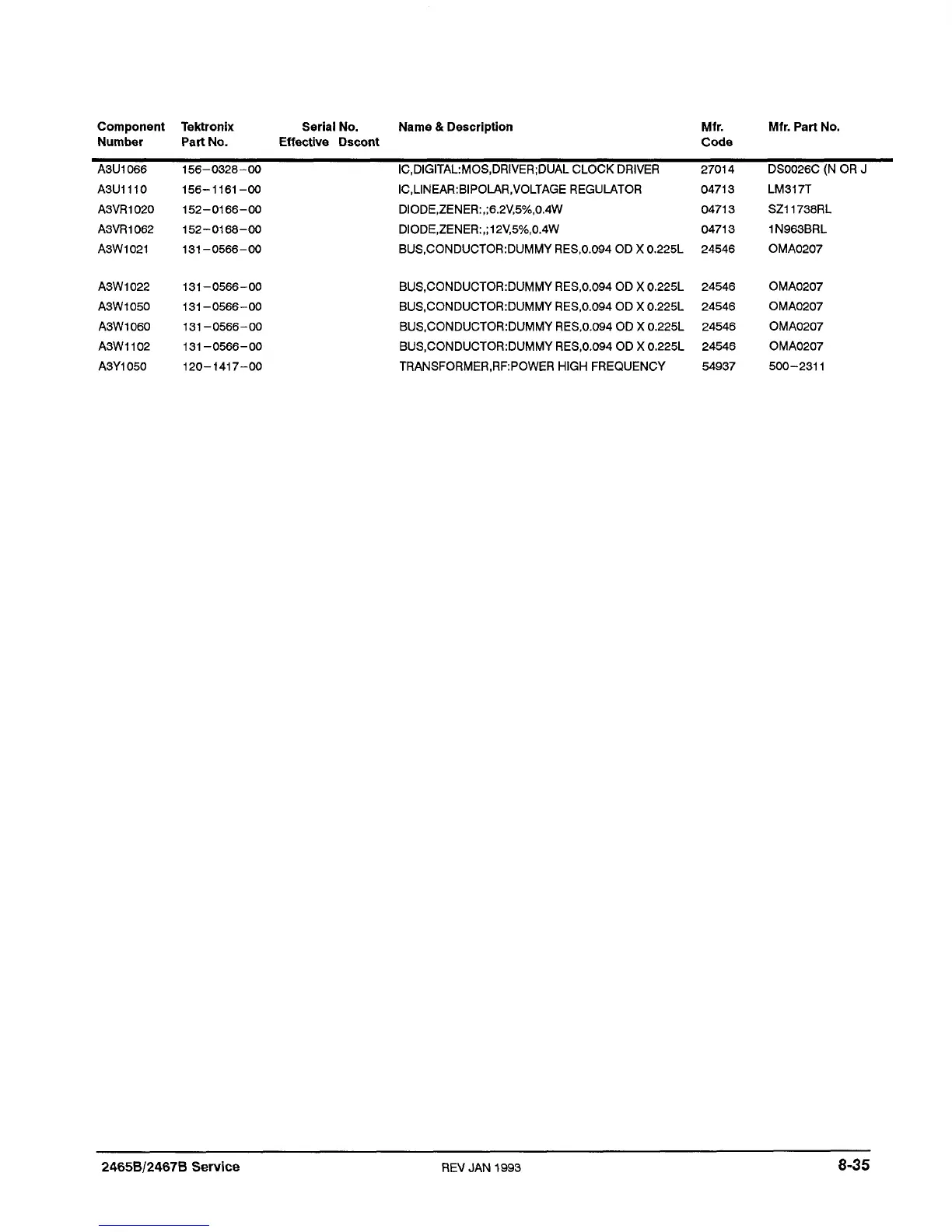

Tektronix 2465B Service Manual

Component Tektronix
Number Part No.
Serial No.
Effective Dscont
Name & Description
Mfr.
Code
27014
04713
04713
04713
24546
24546
24546
24546
24546
54937
Mfr. Part No.
DS0026C (N OR J
LM317T
SZ11738RL
1N963BRL
OMA0207
OMA0207
OMA0207
OMA0207
OMA0207
500-2311
A3U1066
A3U1110
A3VR1020
A3VR1062
A3W1021
A3W1022
A3W1050
A3W1060
A3W1102
A3Y1050
156-0328-00
156-1161-00
152-0166-00
152-0168-00
131-0566-00
131-0566-00
131-0566-00
131-0566-00
131-0566-00
120-1417-00
IC,DIGITAL:MOS,DRIVER;DUAL CLOCK DRIVER
IC,LINEAR:BIPOLAR,VOLTAGE REGULATOR
DIODE,ZENER:,;6.2V,5%,0.4W
DIODE,ZENER:,;12V,5%,0.4W
BUS,CONDUCTOR:DUMMY RES.0.094 OD X 0.225L
BUS,CONDUCTOR:DUMMY RES.0.094 OD X 0.225L
BUS,CONDUCTOR:DUMMY RES.0.094 OD X 0.225L
BUS,CONDUCTOR:DUMMY RES.0.094 OD X 0.225L
BUS,CONDUCTOR:DUMMY RES.0.094 OD X 0.225L
TRANSFORMER.RRPOWER HIGH FREQUENCY
2465B/2467B Service
REV JAN 1993
8-35

Tektronix 2465B Specifications

General

Bandwidth	400 MHz
Channels	4
Vertical Sensitivity	2 mV/div to 5 V/div
Maximum Input Voltage	400 V (DC + peak AC)
Display	CRT
Trigger Modes	Auto, Normal, Single
Time Base Range	500 ps/div to 0.5 s/div
Rise Time	875 ps
Power Supply	48 to 440 Hz
Dimensions	495 mm
