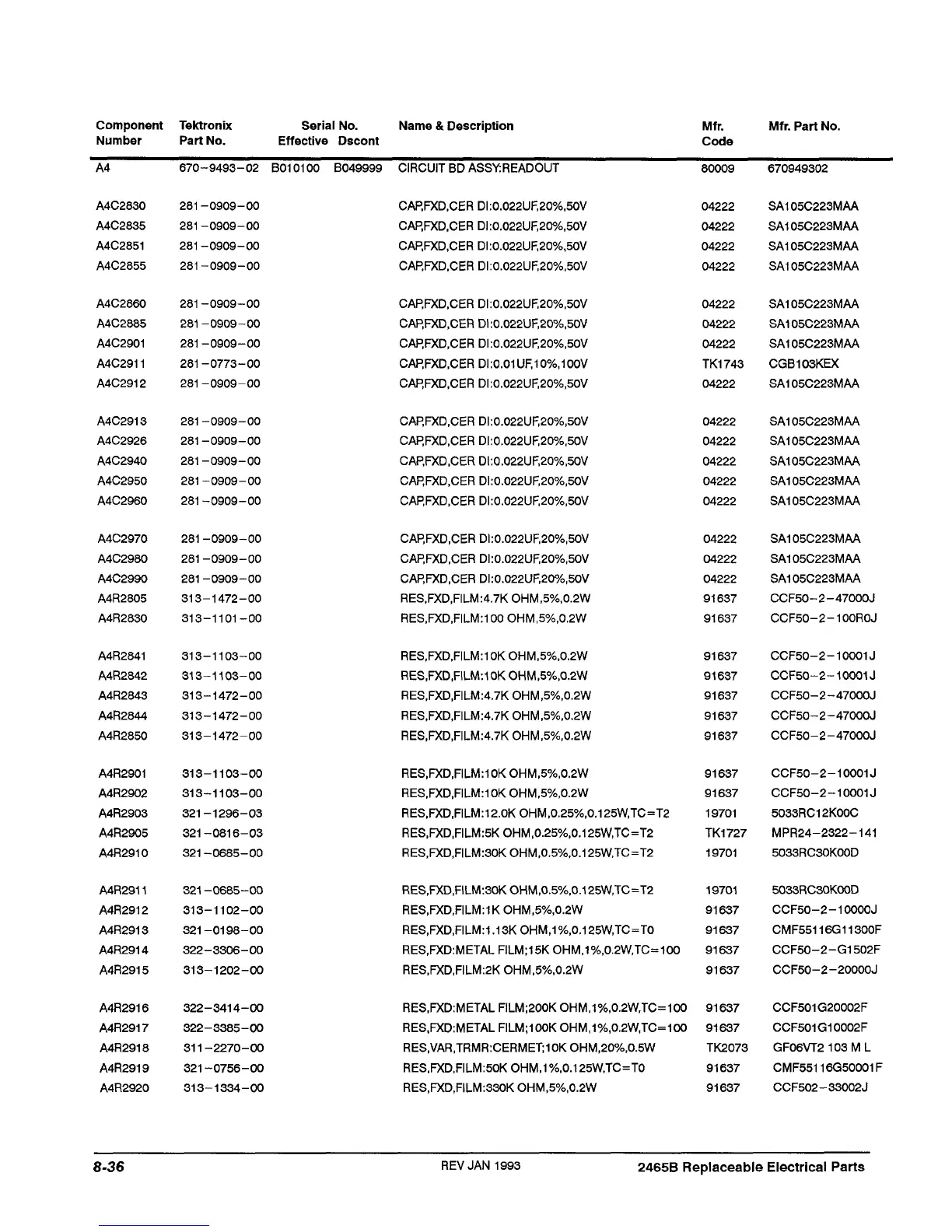

Component Tektronix Serial No. Name & Description
Number Part No. Effective Dscont
Mfr. Mfr. Part No.
Code
A4
670-9493-02 B010100 B049999 CIRCUIT BD ASSYREADOUT
80009 670949302
A4C2830
A4C2835
A4C2851
A4C2855
281 -0909-00
281 -0909-00
281 -0909-00
281 -0909-00
CAP.FXD.CER DI:0.022UF,20%,50V
CARFXD.CER DI:0.022UF,20%,50V
CARFXD.CER DI:0.022UF,20%,50V
CAP.FXD.CER DI:0.022UF,20%,50V
04222
04222
04222
04222
SA105C223MAA
SA105C223MAA
SA105C223MAA
SA105C223MAA
A4C2860
A4C2885
A4C2901
A4C2911
A4C2912
281 -0909-00
281 -0909-00
281 -0909-00
281 -0773-00
281 -0909-00
CAP.FXD.CER DI:0.022UF,20%,50V
CAP.FXD.CER DI:0.022UF,20%,50V
CAP.FXD.CER DI:0.022UF,20%,50V
CAP.FXD.CER DI:0.01UF,10%,100V
CAP.FXD.CER DI:0.022UF,20%,50V
04222 SA105C223MAA
04222 SA105C223MAA
04222 SA105C223MAA
TK1743 CGB103KEX
04222 SA105C223MAA
A4C2913
A4C2926
A4C2940
A4C2950
A4C2960
A4C2970
A4C2980
A4C2990
A4R2805
A4R2830
A4R2841
A4R2842
A4R2843
A4R2844
A4R2850
281 -0909-00
281 -0909-00
281 -0909-00
281 -0909-00
281 -0909-00
281 -0909-00
281 -0909-00
281 -0909-00
313-1472-00
313-1101-00
313-1103-00
313-1103-00
313-1472-00
313-1472-00
313-1472-00
CAP.FXD.CER DI:0.022UF,20%,50V
CAP.FXD.CER DI:0.022UF,20%,50V
CAP.FXD.CER DI:0.022UF,20%,50V
CAP.FXD.CER DI:0.022UF,20%,50V
CAP.FXD.CER DI:0.022UF,20%,50V
CAP.FXD.CER DI:0.022UF,20%,50V
CAP.FXD.CER DI:0.022UF,20%,50V
CAP.FXD.CER DI:0.022UF,20%,50V
RES,FXD,FILM:4.7K OHM,5%,0.2W
RES,FXD,FILM:100 OHM,5%,0.2W
RES,FXD,FILM:10K OHM,5%,0.2W
RES,FXD,FILM:10K OHM,5%.0.2W
RES,FXD,FILM:4.7K OHM,5%,0.2W
RES,FXD,FILM:4.7K OHM,5%,0.2W
RES,FXD,FILM:4.7K OHM,5%,0.2W
04222
04222
04222
04222
04222
04222
04222
04222
91637
91637
91637
91637
91637
91637
91637
SA105C223MAA
SA105C223MAA
SA105C223MAA
SA105C223MAA
SA105C223MAA
SA105C223MAA
SA105C223MAA
SA105C223MAA
CCF50-2-47000J
CCF50-2-100R0J
CCF50-2-10001J
CCF50-2-10001J
CCF50-2-47000J
CCF50-2-47000J
CCF50-2-47000J
A4R2901
A4R2902
A4R2903
A4R2905
A4R2910
313-1103-00
313-1103-00
321-1296-03
321-0816-03
321 -0685-00
RES,FXD,FILM:10K OHM,5%,0.2W
RES,FXD,FILM:10K OHM,5%,0.2W
RES,FXD,FILM:12.0KOHM,0.25%,0.125W,TC=T2
RES,FXD,FILM:5KOHM,0.25%,0.125W,TC=T2
RES,FXD,FILM:30KOHM,0.5%,0.125W,TC=T2
91637 CCF50-2-10001J
91637 CCF50-2-10001J
19701 5033RC12K00C
TK1727 MPR24-2322-141
19701 5033RC30K00D
A4R2911
A4R2912
A4R2913
A4R2914
A4R2915
321
-0685-00
313-1102-00
321-0198-00
322-3306-00
313-1202-00
RES,FXD,FILM:30K OHM,0.5%,0.125W,TC=T2 19701
RES,FXD,FILM:1K OHM,5%,0.2W 91637
RES,FXD,FILM:1.13KOHM,1%,0.125W,TC=T0 91637
RES,FXD:METAL FILM;15K OHM,1%,0.2W,TC=100 91637
RES,FXD,FILM:2K OHM,5%,0.2W 91637
5033RC30KO0D
CCF50-2-10000J
CMF55116G11300F
CCF50-2-G1502F
CCF50-2-20000J
A4R2916
A4R2917
A4R2918
A4R2919
A4R2920
322-3414-00
322-3385-00
311-2270-00
321
-0756-00
313-1334-00
RES,FXD:METAL FILM;200K OHM,1%,0.2W,TC=100 91637
RES,FXD:METAL FILM;100K OHM,1%,0.2W,TC=100 91637
RES,VAR,TRMR:CERMET;10K OHM,20%,0.5W TK2073
RES,FXD,FILM:50K OHM,1%,0.125W,TC=T0 91637
RES,FXD,FILM:330K OHM,5%,0.2W 91637
CCF501G20002F
CCF501G10002F
GF06VT2 103ML
CMF55116G50001F
CCF502-33002J
8-36
REV JAN 1993
