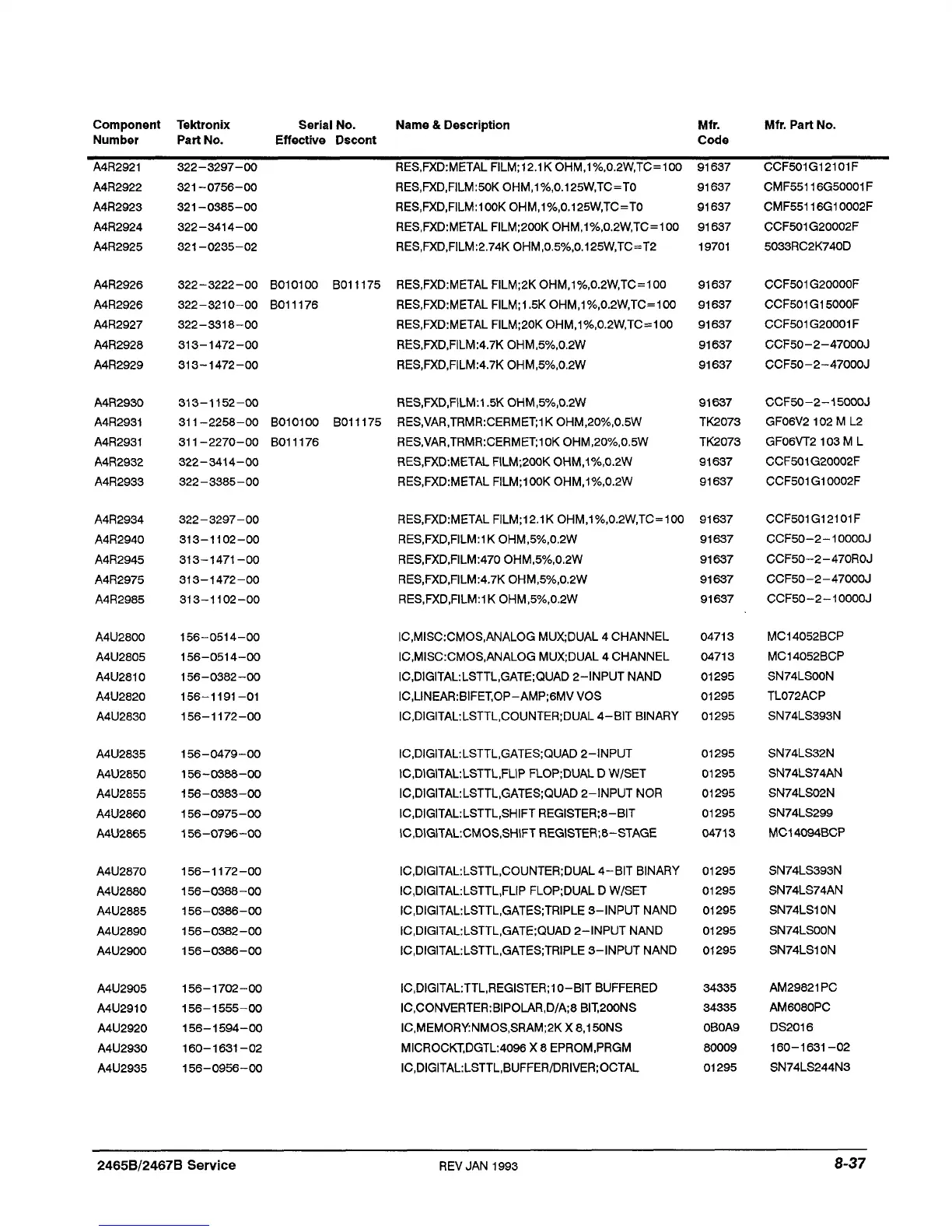

Tektronix 2465B Service Manual

Component Tektronix Serial No. Name & Description
Number Part No. Effective Dscont
Mfr. Mfr. Part No.
Code
A4R2921
A4R2922
A4R2923
A4R2924
A4R2925
A4R2926
A4R2926
A4R2927
A4R2928
A4R2929
A4R2930
A4R2931
A4R2931
A4R2932
A4R2933
A4R2934
A4R2940
A4R2945
A4R2975
A4R2985
A4U2800
A4U2805
A4U2810
A4U2820
A4U2830
A4U2835
A4U2850
A4U2855
A4U2860
A4U2865
A4U2870
A4U2880
A4U2885
A4U2890
A4U2900
A4U2905
A4U2910
A4U2920
A4U2930
A4U2935
322-3297-00
321 -0756-00
321 -0385-00
322-3414-00
321 -0235-02
322-3222-00 B010100 B011175
322-3210-00 B011176
322-3318-00
313-1472-00
313-1472-00
313-1152-00
311-2258-00 B010100 B011175
311-2270-00 B011176
322-3414-00
322-3385-00
322-3297-00
313-1102-00
313-1471-00
313-1472-00
313-1102-00
156-0514-00
156-0514-00
156-0382-00
156-1191-01
156-1172-00
156-0479-00
156-0388-00
156-0383-00
156-0975-00
156-0796-00
156-1172-00
156-0388-00
156-0386-00
156-0382-00
156-0386-00
156-1702-00
156-1555-00
156-1594-00
160-1631-02
156-0956-00
RES,FXD:METAL FILM; 12.1 K OHM,1%,0.2W,TC=100 91637
RES,FXD,FILM:50K OHM,1%,0.125W,TC=T0 91637
RES,FXD,FILM:100K OHM,1%,0.125W,TC=T0 91637
RES,FXD:METAL FILM;200K OHM,1%,0.2W,TC=100 91637
RES,FXD,FILM:2.74K OHM,0.5%,0.125W,TC=T2 19701
RES,FXD:METAL FILM;2K OHM,1%,0.2W,TC=100 91637
RES,FXD:METALFILM;1.5KOHM,1%,0.2W,TC = 100 91637
RES,FXD:METAL FILM;20K OHM,1%,0.2W,TC=100 91637
RES,FXD,FILM:4.7K OHM,5%,0.2W 91637
RES,FXD,FILM:4.7K OHM,5%,0.2W 91637
RES,FXD,FILM:1.5K OHM,5%,0.2W
RES,VAR,TRMR:CERMET;1 K OHM,20%,0.5W
RES,VAR,TRMR:CERMET;10KOHM,20%,0.5W
RES,FXD:METAL FILM;200K OHM,1%,0.2W
RES,FXD:METAL FILM;100K OHM,1%,0.2W
RES,FXD:METAL FILM;12.1K OHM,1%,0.2W,TC = 100 91637
RES,FXD,FILM:1KOHM,5%,0.2W 91637
RES,FXD,FILM:470 OHM,5%,0.2W 91637
RES,FXD,FILM:4.7K OHM,5%,0.2W 91637
RES,FXD,FILM:1K OHM,5%,0.2W 91637
IC,MISC:CMOS,ANALOG MUX;DUAL 4 CHANNEL 04713
IC,MISC:CMOS,ANALOG MUX;DUAL 4 CHANNEL 04713
IC,DIGITAL:LSTTL,GATE;QUAD 2-INPUT NAND 01295
IC,LINEAR:BIFET,OP-AMP;6MV VOS 01295
IC,DIGITAL:LSTTL,COUNTER;DUAL 4-BIT BINARY 01295
IC,DIGITAL:LSTTL,GATES;QUAD 2-INPUT 01295
IC,DIGITAL:LSTTL,FLIP FLOP;DUAL D W/SET 01295
IC,DIGITAL:LSTTL,GATES;QUAD 2-INPUT NOR 01295
ICDIGITALLSTTL.SHIFT REGISTER;8-BIT 01295
IC,DIGITAL:CMOS,SHIFT REGISTER;8-STAGE 04713
IC,DIGITAL:LSTTL,COUNTER;DUAL 4-BIT BINARY 01295
IC,DIGITAL:LSTTL,FLIP FLOP;DUAL D W/SET 01295
IC,DIGITAL:LSTTL,GATES;TRIPLE 3-INPUT NAND 01295
IC,DIGITAL:LSTTL,GATE;QUAD 2-INPUT NAND 01295
IC,DIGITAL:LSTTL,GATES;TRIPLE 3-INPUT NAND 01295
IC,DIGITAL:TTL,REGISTER;10-BIT BUFFERED 34335
IC,CONVERTER:BIPOLAR,D/A;8 BIT.200NS 34335
IC,MEMORY:NMOS,SRAM;2KX8,150NS 0B0A9
MICROCKT,DGTL:4096 X 8 EPROM.PRGM 80009
IC,DIGITAL:LSTTL,BUFFER/DRIVER;OCTAL 01295
CCF501G12101F
CMF55116G50001F
CMF55116G10002F
CCF501G20002F
5033RC2K740D
CCF501G20000F
CCF501G15000F
CCF501G20001F
CCF50-2-47000J
CCF50-2-47000J
91637 CCF50-2-15000J
TK2073 GF06V2 102ML2
TK2073 GF06VT2 103 M L
91637 CCF501G20002F
91637 CCF501G10002F
CCF501G12101F
CCF50-2-10000J
CCF50-2-470R0J
CCF50-2-47000J
CCF50-2-10000J
MC14052BCP
MC14052BCP
SN74LS00N
TL072ACP
SN74LS393N
SN74LS32N
SN74LS74AN
SN74LS02N
SN74LS299
MC14094BCP
SN74LS393N
SN74LS74AN
SN74LS10N
SN74LS00N
SN74LS10N
AM29821PC
AM6080PC
DS2016
160-1631-02
SN74LS244N3
2465B/2467B Service
REV JAN 1993
8-37
