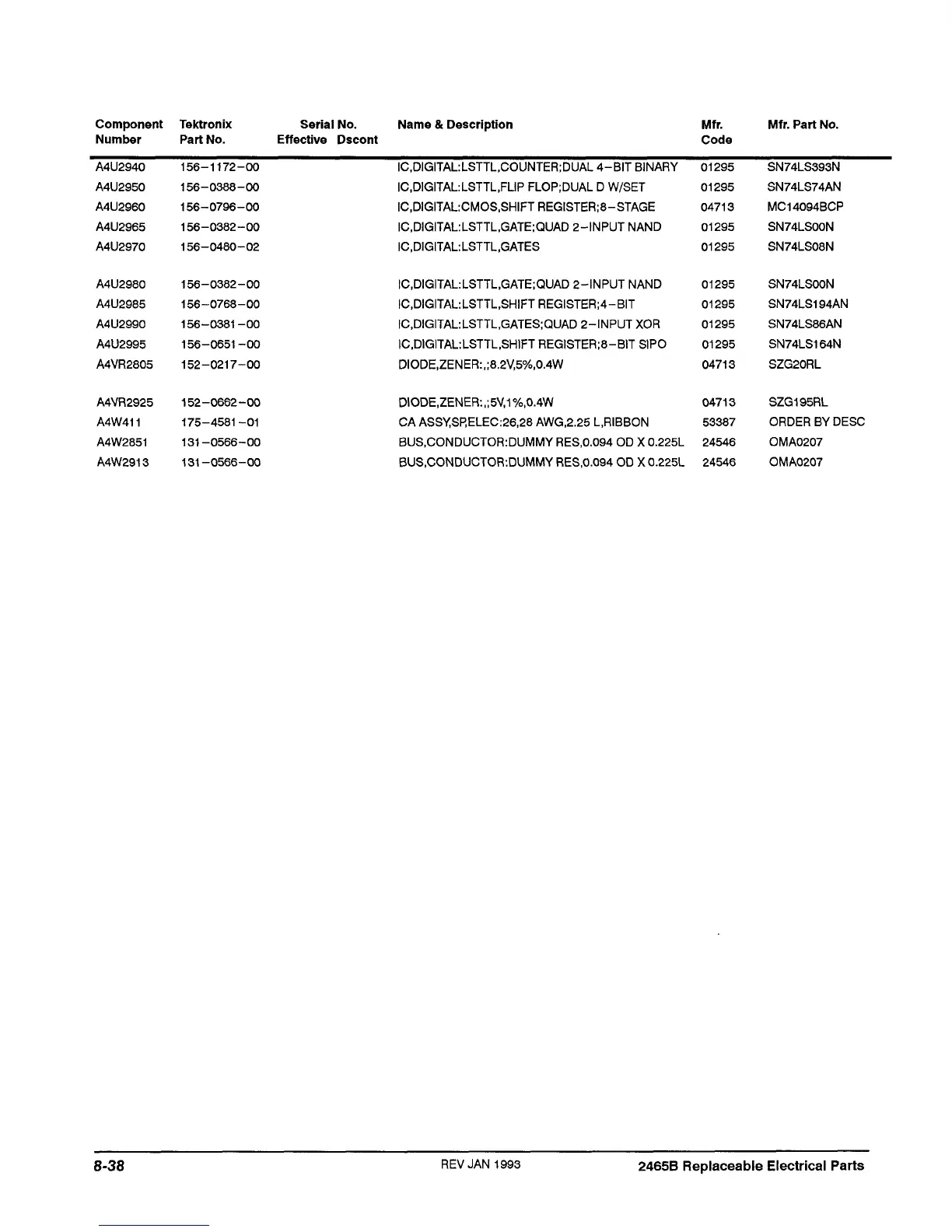

Tektronix 2465B Service Manual

Component Tektronix Serial No. Name & Description
Number Part No. Effective Dscont
Mfr. Mfr. Part No.
Code
A4U2940
A4U2950
A4U2960
A4U2965
A4U2970
156-1172-00
156-0388-00
156-0796-00
156-0382-00
156-0480-02
IC,DIGITAL:LSTTL,COUNTER;DUAL 4-BIT BINARY 01295 SN74LS393N
IC,DIGITAL:LSTTL,FLIP FLOP;DUAL D W/SET 01295 SN74LS74AN
IC,DIGITAL:CMOS,SHIFTREGISTER;8-STAGE 04713 MC14094BCP
IC,DIGITAL:LSTTL,GATE;QUAD2-INPUTNAND 01295 SN74LS00N
IC,DIGITAL:LSTTL,GATES 01295 SN74LS08N
A4U2980
A4U2985
A4U2990
A4U2995
A4VR2805
156-0382-00
156-0768-00
156-0381-00
156-0651-00
152-0217-00
IC,DIGITAL:LSTTL,GATE;QUAD 2-INPUT NAND 01295 SN74LS00N
IC,DIGITAL:LSTTL,SHIFTREGISTER;4-BIT 01295 SN74LS194AN
IC,DIGITAL:LSTTL,GATES;QUAD 2-INPUT XOR 01295 SN74LS86AN
IC,DIGITAL:LSTTL,SHIFTREGISTER;8-BITSIPO 01295 SN74LS164N
DIODE,ZENER:,;8.2V,5%,0.4W 04713 SZG20RL
A4VR2925
A4W411
A4W2851
A4W2913
152-0662-00
175-4581-01
131-0566-00
131-0566-00
DIODE,ZENER:,;5V,1%,0.4W 04713 SZG195RL
CA ASSYSP,ELEC:26,28 AWG.2.25 L.RIBBON 53387 ORDER BY DESC
BUS,CONDUCTOR:DUMMYRES,0.094ODX0.225L 24546 OMA0207
BUS,CONDUCTOR:DUMMYRES,0.094ODX0.225L 24546 OMA0207
8-38
REV JAN 1993
2465B Replaceable Electrical Parts
