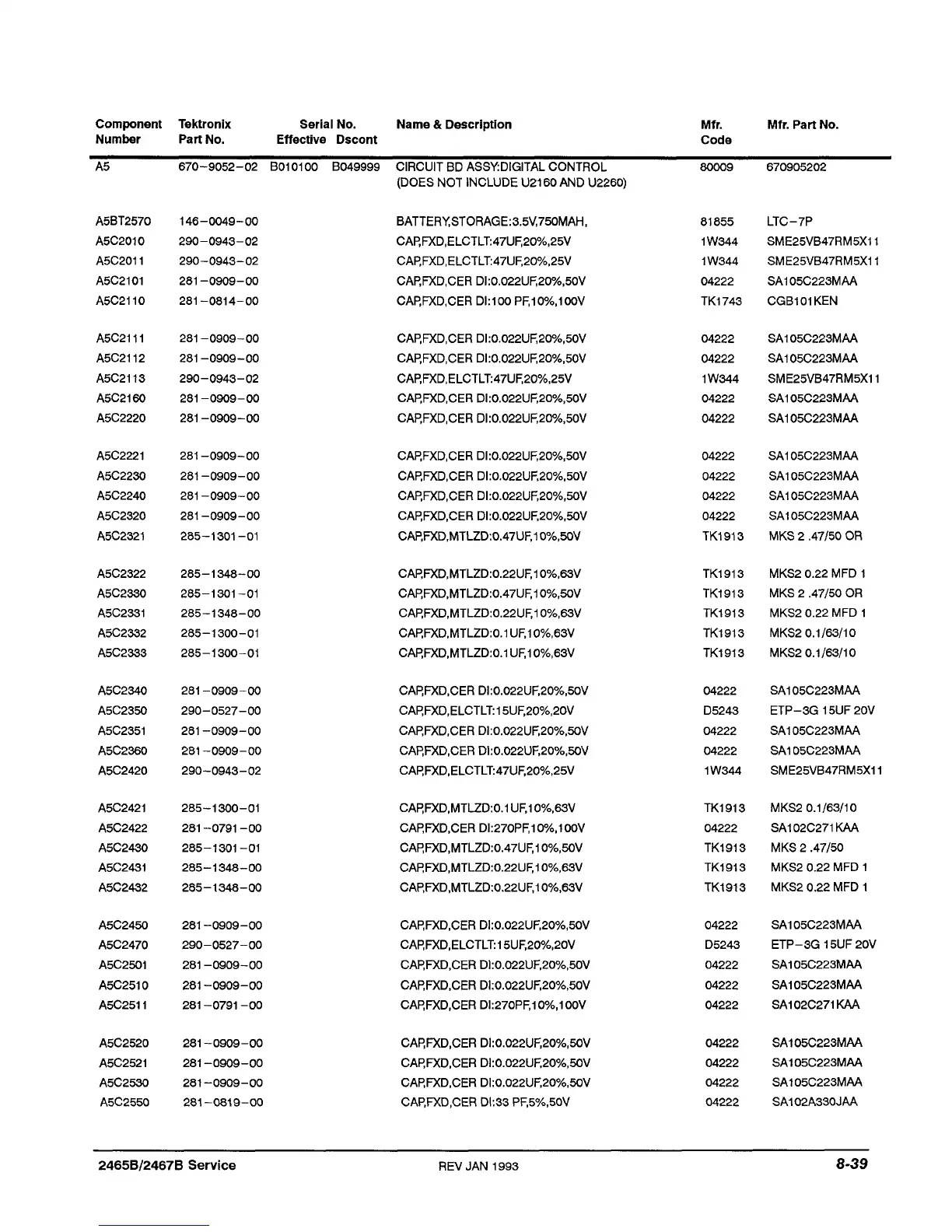

Tektronix 2465B Service Manual

Component Tektronix Serial No.
Number Part No. Effective Dscont
A5 670-9052-02 B010100 B049999
A5BT2570 146-0049-00
A5C2010 290-0943-02
A5C2011 290-0943-02
A5C2101 281-0909-00
A5C2110 281-0814-00
A5C2111 281-0909-00
A5C2112 281-0909-00
A5C2113 290-0943-02
A5C2160 281-0909-00
A5C2220 281 -0909-00
A5C2221 281-0909-00
A5C2230 281-0909-00
A5C2240 281-0909-00
A5C2320 281-0909-00
A5C2321 285-1301-01
A5C2322 285-1348-00
A5C2330 285-1301-01
A5C2331 285-1348-00
A5C2332 285-1300-01
A5C2333 285-1300-01
A5C2340 281 -0909-00
A5C2350 290-0527-00
A5C2351 281 -0909-00
A5C2360 281 -0909-00
A5C2420 290-0943-02
A5C2421 285-1300-01
A5C2422 281 -0791 -00
A5C2430 285-1301-01
A5C2431 285-1348-00
A5C2432 285-1348-00
A5C2450 281 -0909-00
A5C2470 290-0527-00
A5C2501 281 -0909-00
A5C2510 281 -0909-00
A5C2511 281 -0791 -00
A5C2520 281 -0909-00
A5C2521 281 -0909-00
A5C2530 281-0909-00
A5C2550 281-0819-00
2465B/2467B Service
Name & Description
CIRCUIT BD ASSY:DIGITAL CONTROL
(DOES NOT INCLUDE U2160 AND U2260)
BATTERYSTORAGE:3.5V,750MAH,
CAP,FXD,ELCTLT:47UF,20%,25V
CARFXD,ELCTLT:47UF,20%,25V
CARFXD.CER DI:0.022UF,20%,50V
CARFXD.CER Dl:100 PF,10%,100V
CARFXD.CER DI:0.022UF,20%,50V
CARFXD.CER DI:0.022UF,20%,50V
CARFXD,ELCTLT:47UF,20%,25V
CARFXD.CER DI:0.022UF,20%,50V
CARFXD.CER DI:0.022UF,20%,50V
CARFXD.CER DI:0.022UF,20%,50V
CARFXD.CER DI:0.022UF,20%,50V
CARFXD.CER DI:0.022UF,20%,50V
CARFXD.CER DI:0.022UF,20%,50V
CAP,FXD,MTLZD:0.47UF,10%,50V
CARFXD,MTLZD:0.22UF,10%,63V
CAP,FXD,MTLZD:0.47UF,10%,50V
CAP,FXD,MTLZD:0.22UF,10%,63V
CAP,FXD,MTLZD:0.1UF,10%,63V
CAP,FXD,MTLZD:0.1 UF.10%,63V
CARFXD.CER DI:0.022UF,20%,50V
CARFXD.ELCTLT: 15UF,20%,20V
CARFXD.CER DI:0.022UF,20%,50V
CARFXD.CER DI:0.022UF,20%,50V
CARFXD,ELCTLT:47UF,20%,25V
CAP,FXD,MTLZD:0.1 UF.10%,63V
CARFXD.CER DI:270PF,10%,100V
CAP,FXD,MTLZD:0.47UF,10%,50V
CAP,FXD,MTLZD:0.22UF,10%,63V
CARFXD,MTLZD:0.22UF,10%,63V
CARFXD.CER DI:0.022UF,20%,50V
CARFXD.ELCTLT: 15UF,20%,20V
CARFXD.CER DI:0.022UF,20%,50V
CARFXD.CER DI:0.022UF,20%,50V
CARFXD.CER DI:270PF,10%,100V
CARFXD.CER DI:0.022UF,20%,50V
CARFXD.CER DI:0.022UF,20%,50V
CARFXD.CER DI:0.022UF,20%,50V
CARFXD.CER Dl:33 PF,5%,50V
REV JAN 1993
Mfr. Mfr. Part No.
Code
80009 670905202
81855 LTC-7P
1W344 SME25VB47RM5X11
1W344 SME25VB47RM5X11
04222 SA105C223MAA
TK1743 CGB101KEN
04222 SA105C223MAA
04222 SA105C223MAA
1W344 SME25VB47RM5X11
04222 SA105C223MAA
04222 SA105C223MAA
04222 SA105C223MAA
04222 SA105C223MAA
04222 SA105C223MAA
04222 SA105C223MAA
TK1913 MKS2.47/50OR
TK1913 MKS2 0.22 MFD 1
TK1913 MKS2.47/50OR
TK1913 MKS2 0.22 MFD 1
TK1913 MKS2 0.1/63/10
TK1913 MKS2 0.1/63/10
04222 SA105C223MAA
D5243 ETP-3G 15UF 20V
04222 SA105C223MAA
04222 SA105C223MAA
1W344 SME25VB47RM5X11
TK1913 MKS2 0.1/63/10
04222 SA102C271KAA
TK1913 MKS2.47/50
TK1913 MKS2 0.22 MFD 1
TK1913 MKS2 0.22 MFD 1
04222 SA105C223MAA
D5243 ETP-3G 15UF 20V
04222 SA105C223MAA
04222 SA105C223MAA
04222 SA102C271KAA
04222 SA105C223MAA
04222 SA105C223MAA
04222 SA105C223MAA
04222 SA102A330JAA
8-39
