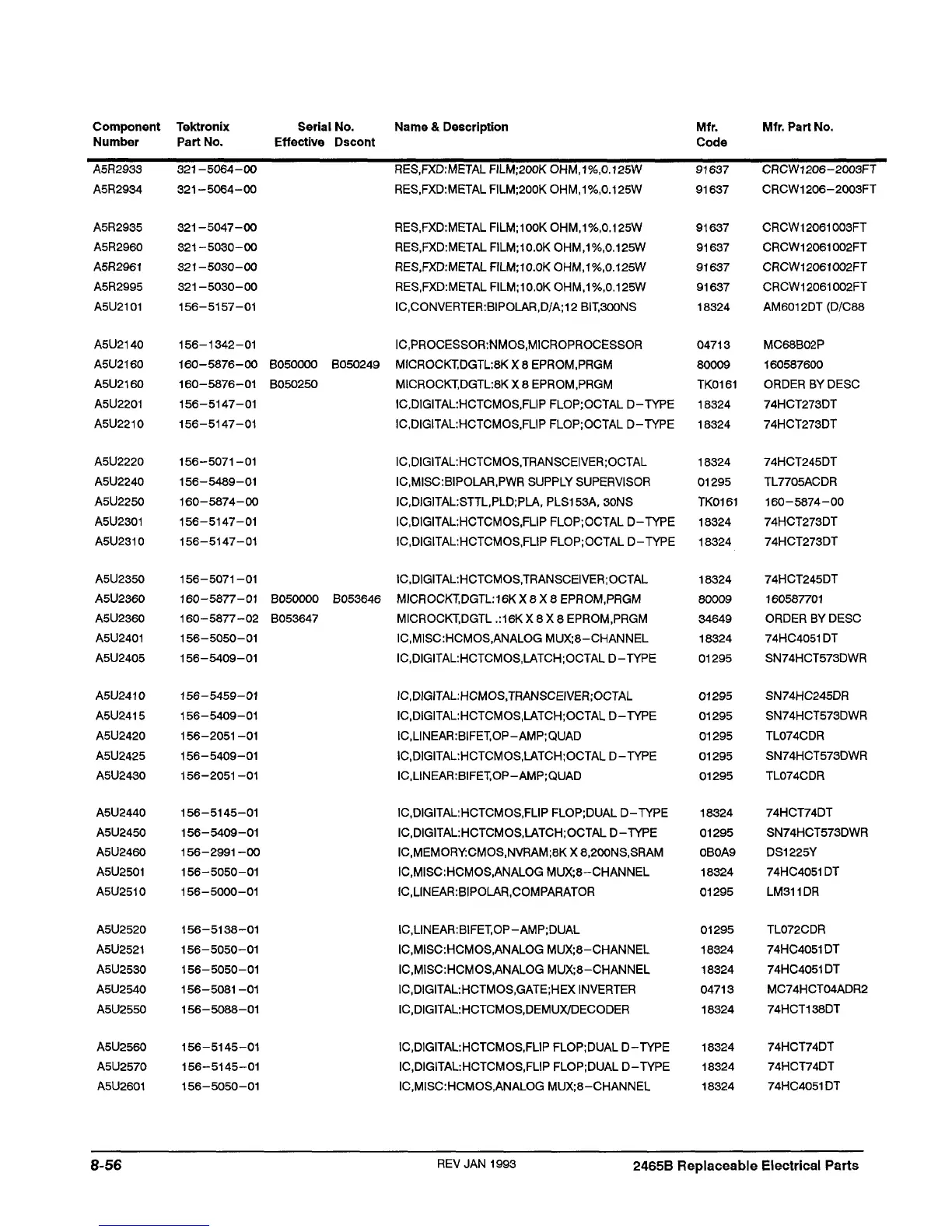

Tektronix 2465B Service Manual

Component Tektronix Serial No. Name & Description
Number Part No. Effective Dscont
Mfr. Mfr. Part No.
Code
A5R2933
A5R2934
A5R2935
A5R2960
A5R2961
A5R2995
A5U2101
A5U2140
A5U2160
A5U2160
A5U2201
A5U2210
A5U2220
A5U2240
A5U2250
A5U2301
A5U2310
A5U2350
A5U2360
A5U2360
A5U2401
A5U2405
A5U2410
A5U2415
A5U2420
A5U2425
A5U2430
A5U2440
A5U2450
A5U2460
A5U2501
A5U2510
A5U2520
A5U2521
A5U2530
A5U2540
A5U2550
A5U2560
A5U2570
A5U2601
321 -5064-00
321-5064-00
321 -5047-00
321 -5030-00
321-5030-00
321 -5030-00
156-5157-01
RES.FXD:METAL FILM;200K OHM,1%,0.125W
RES,FXD:METAL FILM;200K OHM,1%,0.125W
RES,FXD:METAL FILM;100K OHM,1%,0.125W
RES,FXD:METAL FILM;10.0K OHM,1%,0.125W
RES,FXD:METAL FILM;10.0K OHM,1%,0.125W
RES,FXD:METALFILM;10.0KOHM,1%,0.125W
IC,CONVERTER:BIPOLAR,D/A;12BIT,300NS
156-1342-01 IC,PROCESSOR:NMOS,MICROPROCESSOR
160-5876-00 B050000 B050249 MICROCKT,DGTL:8K X 8 EPROM.PRGM
160-5876-01 B050250 MICROCKT.DGTL8K X 8 EPROM.PRGM
156-5147-01 IC.DIGITALHCTCMOS.FLIP FLOP;OCTAL D-TYPE
156-5147-01 IC.DIGITALHCTCMOS.FLIP FLOP;OCTAL D-TYPE
156-5071-01
156-5489-01
160-5874-00
156-5147-01
156-5147-01
IC,DIGITAL:HCTCMOS,TRANSCEIVER;OCTAL
IC,MISC:BIPOLAR,PWR SUPPLY SUPERVISOR
IC,DIGITAL:STTL,PLD;PLA, PLS153A, 30NS
IC.DIGITALHCTCMOS.FLIP FLOP;OCTAL D-TYPE
IC.DIGITALHCTCMOS.FLIP FLOP;OCTAL D-TYPE
156-5071 -01 IC.DIGITALHCTCMOS.TRANSCEIVER; OCTAL
160-5877-01 B050000 B053646 MICROCKT.DGTL16KX8 X 8 EPROM.PRGM
160-5877-02 B053647 MICROCKT.DGTL .:16KX8X8 EPROM.PRGM
156-5050-01 IC,MISC:HCMOS,ANALOG MUX;8-CHANNEL
156-5409-01 IC,DIGITAL:HCTCMOS,LATCH;OCTAL D-TYPE
156-5459-01
156-5409-01
156-2051-01
156-5409-01
156-2051-01
156-5145-01
156-5409-01
156-2991-00
156-5050-01
156-5000-01
156-5138-01
156-5050-01
156-5050-01
156-5081-01
156-5088-01
156-5145-01
156-5145-01
156-5050-01
IC,DIGITALHCMOS,TRANSCEIVER;OCTAL
IC,DIGITAL:HCTCMOS,LATCH;OCTAL D-TYPE
IC,LINEAR:BIFET,OP-AMP;QUAD
IC,DIGITAL:HCTCMOS,LATCH;OCTAL D-TYPE
IC,LINEAR:BIFET,OP-AMP;QUAD
IC.DIGITALHCTCMOS.FLIP FLOP;DUAL D-TYPE
IC,DIGITAL:HCTCMOS,LATCH;OCTAL D-TYPE
IC,MEMORY:CMOS,NVRAM;8KX8,200NS,SRAM
IC,MISC:HCMOS,ANALOGMUX;8-CHANNEL
IC,LINEAR:BIPOLAR,COMPARATOR
IC,LINEAR:BlFET,OP-AMP;DUAL
IC,MISC:HCMOS,ANALOGMUX;8-CHANNEL
IC,MISC:HCMOS,ANALOGMUX;8-CHANNEL
IC,DIGITAL:HCTMOS,GATE;HEX INVERTER
IC,DIGITAL:HCTCMOS,DEMUX/DECODER
IC.DIGITALHCTCMOS.FLIP FLOP;DUAL D-TYPE
IC.DIGITALHCTCMOS.FLIP FLOP;DUAL D-TYPE
IC,MISC:HCMOS,ANALOGMUX;8-CHANNEL
91637
91637
91637
91637
91637
91637
18324
04713
80009
TK0161
18324
18324
18324
01295
TK0161
18324
18324
18324
80009
34649
18324
01295
01295
01295
01295
01295
01295
18324
01295
0B0A9
18324
01295
01295
18324
18324
04713
18324
18324
18324
18324
CRCW1206-2003FT
CRCW1206-2003FT
CRCW12061003FT
CRCW12061002FT
CRCW12061002FT
CRCW12061002FT
AM6012DT(D/C88
MC68B02P
160587600
ORDER BY DESC
74HCT273DT
74HCT273DT
74HCT245DT
TL7705ACDR
160-5874-00
74HCT273DT
74HCT273DT
74HCT245DT
160587701
ORDER BY DESC
74HC4051DT
SN74HCT573DWR
SN74HC245DR
SN74HCT573DWR
TL074CDR
SN74HCT573DWR
TL074CDR
74HCT74DT
SN74HCT573DWR
DS1225Y
74HC4051 DT
LM311DR
TL072CDR
74HC4051DT
74HC4051DT
MC74HCT04ADR2
74HCT138DT
74HCT74DT
74HCT74DT
74HC4051 DT
8-56
REV JAN 1993
2465B Replaceable Electrical Parts

Tektronix 2465B Specifications

General

Bandwidth	400 MHz
Channels	4
Vertical Sensitivity	2 mV/div to 5 V/div
Maximum Input Voltage	400 V (DC + peak AC)
Display	CRT
Trigger Modes	Auto, Normal, Single
Time Base Range	500 ps/div to 0.5 s/div
Rise Time	875 ps
Power Supply	48 to 440 Hz
Dimensions	495 mm
