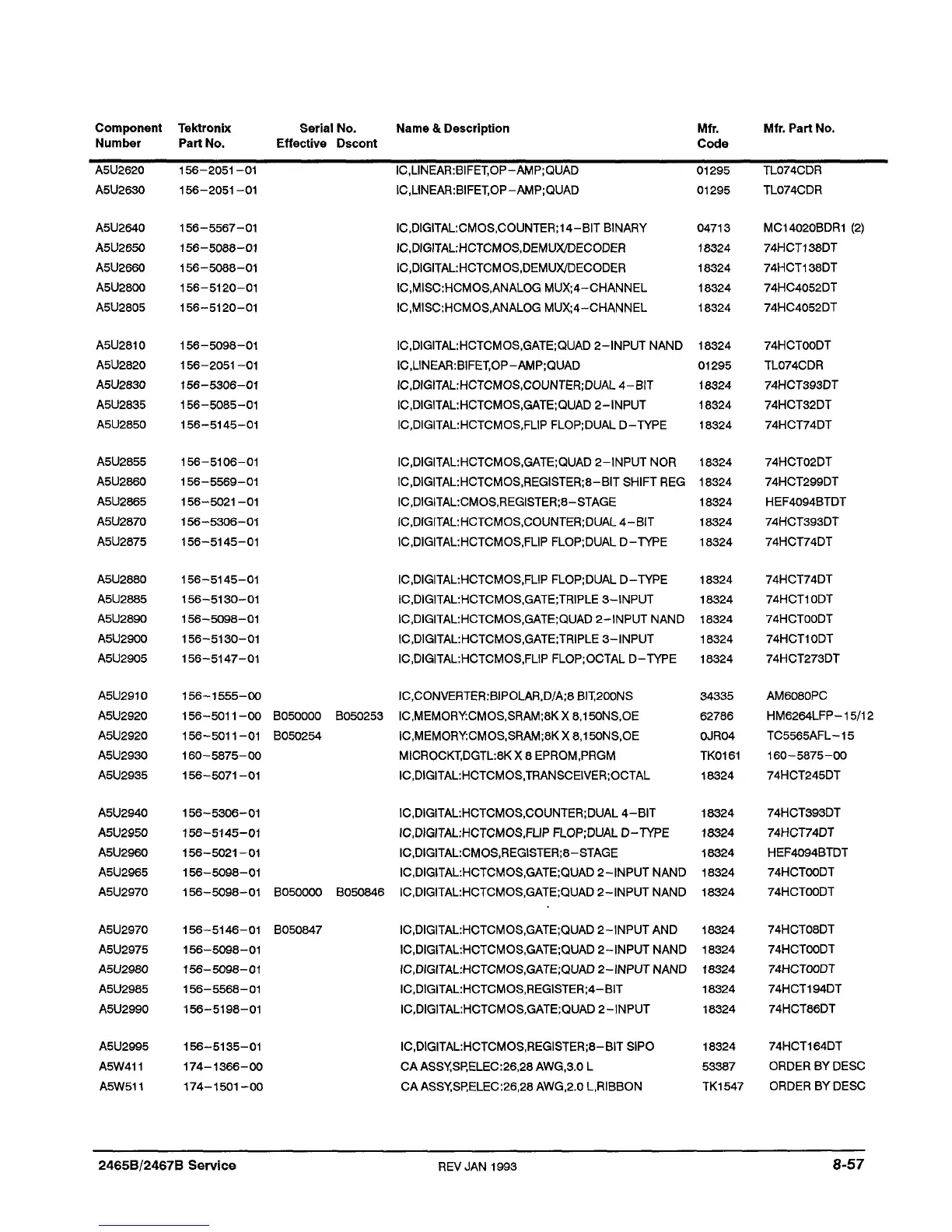

Tektronix 2465B Service Manual

Component Tektronix Serial No. Name & Description
Number Part No. Effective Dscont
Mfr. Mfr. Part No.
Code
A5U2620
A5U2630
156-2051-01
156-2051-01
IC,LINEAR:BIFET,OP-AMP;QUAD
IC,LINEAR:BIFET,OP-AMP;QUAD
01295
01295
TL074CDR
TL074CDR
A5U2640
A5U2650
A5U2660
A5U2800
A5U2805
156-5567-01
156-5088-01
156-5088-01
156-5120-01
156-5120-01
IC,DIGITAL:CMOS,COUNTER;14-BIT BINARY 04713
IC,DIGITAL:HCTCMOS,DEMUX/DECODER 18324
IC,DIGITAL:HCTCMOS,DEMUX/DECODER 18324
IC,MISC:HCMOS,ANALOG MUX;4-CHANNEL 18324
IC,MISC:HCMOS,ANALOG MUX;4-CHANNEL 18324
MC14020BDR1 (2)
74HCT138DT
74HCT138DT
74HC4052DT
74HC4052DT
A5U2810
A5U2820
A5U2830
A5U2835
A5U2850
156-5098-01
156-2051-01
156-5306-01
156-5085-01
156-5145-01
IC,DIGITAL:HCTCMOS,GATE;QUAD 2-INPUT NAND 18324 74HCT00DT
IC,LINEAR:BIFET,OP-AMP;QUAD 01295 TL074CDR
IC,DIGITAL:HCTCMOS,COUNTER;DUAL 4-BIT 18324 74HCT393DT
IC,DIGITAL:HCTCMOS,GATE;QUAD 2-INPUT 18324 74HCT32DT
IC,DIGITAL:HCTCMOS,FLIP FLOP;DUAL D-TYPE 18324 74HCT74DT
A5U2855
A5U2860
A5U2865
A5U2870
A5U2875
156-5106-01
156-5569-01
156-5021-01
156-5306-01
156-5145-01
IC,DIGITAL:HCTCMOS,GATE;QUAD 2-INPUT NOR 18324 74HCT02DT
IC,DlGITALHCTCMOS,REGISTER;8-BIT SHIFT REG 18324 74HCT299DT
IC,DIGITAL:CMOS,REGISTER;8-STAGE 18324 HEF4094BTDT
IC,DIGITALHCTCMOS,COUNTER;DUAL 4-BIT 18324 74HCT393DT
IC,DIGITAL:HCTCMOS,FLIPFLOP;DUAL D-TYPE 18324 74HCT74DT
A5U2880
A5U2885
A5U2890
A5U2900
A5U2905
156-5145-01
156-5130-01
156-5098-01
156-5130-01
156-5147-01
IC.DIGITALHCTCMOS.FLIP FLOP;DUAL D-TYPE 18324 74HCT74DT
IC,DIGITALHCTCMOS,GATE;TRIPLE3-INPUT 18324 74HCT10DT
IC,DIGITAL:HCTCMOS,GATE;QUAD 2-INPUT NAND 18324 74HCT00DT
IC,DIGITAL:HCTCMOS,GATE;TRIPLE3-INPUT 18324 74HCT10DT
IC.DIGITALHCTCMOS.FLIP FLOP;OCTAL D-TYPE 18324 74HCT273DT
A5U2910 156-1555-00 IC,CONVERTER:BIPOLAR,D/A;8 BIT.200NS 34335
A5U2920 156-5011-00 B050000 B050253 IC,MEMORY:CMOS,SRAM;8KX 8.150NS.OE 62786
A5U2920 156-5011-01 B050254 IC,MEMORY:CMOS,SRAM;8KX8,150NS,OE 0JR04
A5U2930 160-5875-00 MICROCKT.DGTL8KX8 EPROM.PRGM TK0161
A5U2935 156-5071-01 IC,DIGITALHCTCMOS,TRANSCEIVER;OCTAL 18324
AM6080PC
HM6264LFP-15/12
TC5565AFL-15
160-5875-00
74HCT245DT
A5U2940
A5U2950
A5U2960
A5U2965
A5U2970
156-5306-01
156-5145-01
156-5021-01
156-5098-01
IC,DIGITAL:HCTCMOS,COUNTER;DUAL 4-BIT 18324
IC.DIGITALHCTCMOS.FLIP FLOP;DUAL D-TYPE 18324
IC,DIGITAL:CMOS,REGISTER;8-STAGE 18324
IC,DIGITALHCTCMOS,GATE;QUAD 2-INPUT NAND 18324
156-5098-01 B050000 B050846 IC,DIGITALHCTCMOS,GATE;QUAD 2-INPUT NAND 18324
74HCT393DT
74HCT74DT
HEF4094BTDT
74HCT00DT
74HCT00DT
A5U2970
A5U2975
A5U2980
A5U2985
A5U2990
156-5146-01
156-5098-01
156-5098-01
156-5568-01
156-5198-01
B050847 IC,DIGITAL:HCTCMOS,GATE;QUAD 2-INPUT AND 18324 74HCT08DT
IC,DIGITALHCTCMOS,GATE;QUAD 2-INPUT NAND 18324 74HCT00DT
IC,DIGITAL:HCTCMOS,GATE;QUAD 2-INPUT NAND 18324 74HCT00DT
IC,DIGITAL:HCTCMOS,REGISTER;4-BIT 18324 74HCT194DT
IC,DIGITAL:HCTCMOS,GATE;QUAD 2-INPUT 18324 74HCT86DT
A5U2995
A5W411
A5W511
156-5135-01
174-1366-00
174-1501-00
IC,DIGITAL:HCTCMOS,REGISTER;8-BITSIPO
CA ASSYSP,ELEC:26,28 AWG.3.0 L
CA ASSY,SP,ELEC:26,28 AWG.2.0 L.RIBBON
18324 74HCT164DT
53387 ORDER BY DESC
TK1547 ORDER BY DESC
2465B/2467B Service
REV JAN 1993 8-57

Tektronix 2465B Specifications

General

Bandwidth	400 MHz
Channels	4
Vertical Sensitivity	2 mV/div to 5 V/div
Maximum Input Voltage	400 V (DC + peak AC)
Display	CRT
Trigger Modes	Auto, Normal, Single
Time Base Range	500 ps/div to 0.5 s/div
Rise Time	875 ps
Power Supply	48 to 440 Hz
Dimensions	495 mm
