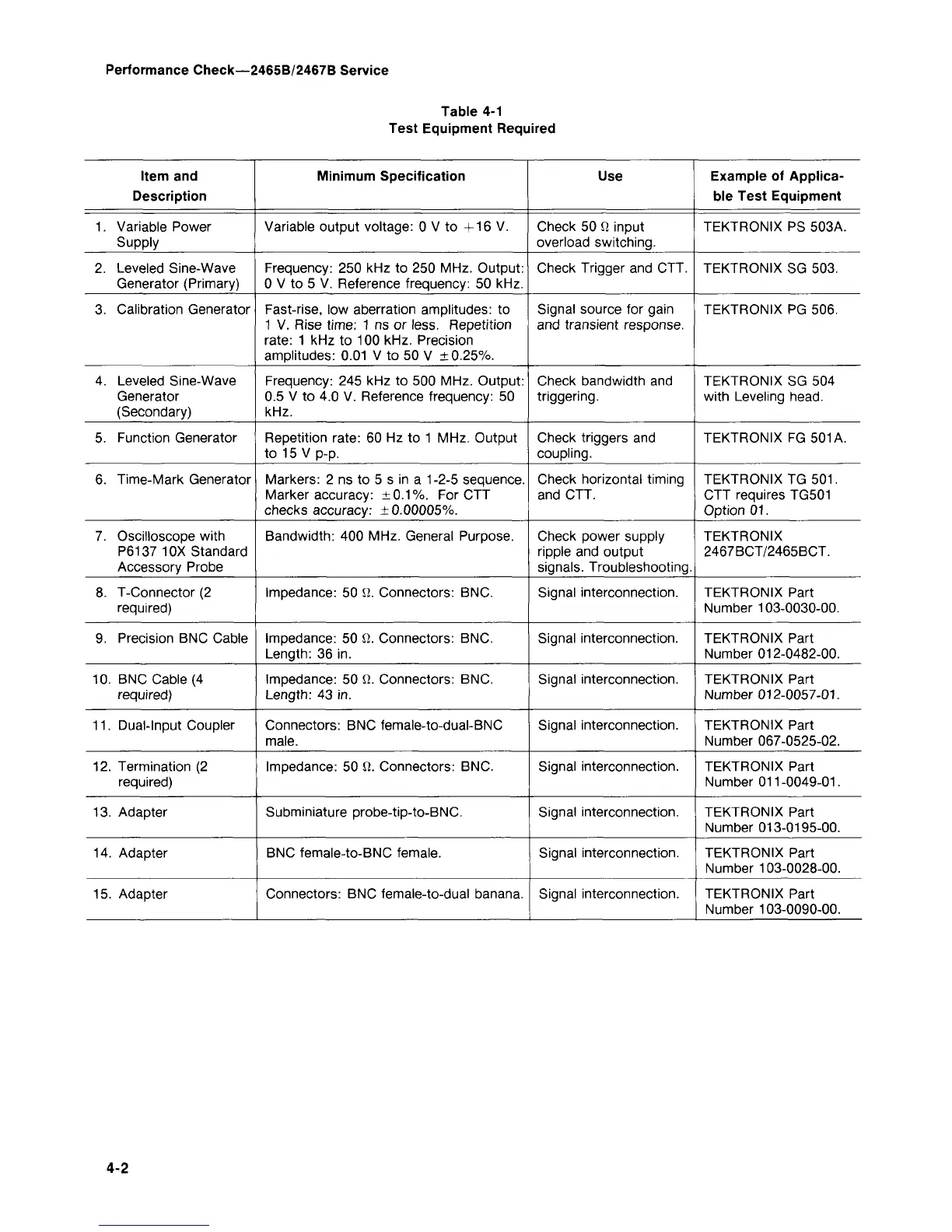

Performance Check—2465B/2467B Service
Table 4-1
Test Equipment Required
Item and
Description
1. Variable Power
Supply
2. Leveled Sine-Wave
Generator (Primary)
3. Calibration Generator
4. Leveled Sine-Wave
Generator
(Secondary)
5. Function Generator
6. Time-Mark Generator
7. Oscilloscope with
P6137 10X Standard
Accessory Probe
8. T-Connector (2
required)
9. Precision BNC Cable
10. BNC Cable (4
required)
11. Dual-Input Coupler
12. Termination (2
required)
13. Adapter
14. Adapter
15. Adapter
Minimum Specification
Variable output voltage: 0 V to +16 V.
Frequency: 250 kHz to 250 MHz. Output:
0 V to 5 V. Reference frequency: 50 kHz.
Fast-rise, low aberration amplitudes: to
1 V. Rise time: 1 ns or less. Repetition
rate: 1 kHz to 100 kHz. Precision
amplitudes: 0.01 V to 50 V ±0.25%.
Frequency: 245 kHz to 500 MHz. Output:
0.5 V to 4.0 V. Reference frequency: 50
kHz.
Repetition rate: 60 Hz to 1 MHz. Output
to 15 V p-p.
Markers: 2 ns to 5 s in a 1-2-5 sequence.
Marker accuracy: ±0.1%. For CTT
checks accuracy: ±0.00005%.
Bandwidth: 400 MHz. General Purpose.
Impedance: 50 Q. Connectors: BNC.
Impedance: 50 ft. Connectors: BNC.
Length: 36 in.
Impedance: 50 ft. Connectors: BNC.
Length: 43 in.
Connectors: BNC female-to-dual-BNC
male.
Impedance: 50 ft. Connectors: BNC.
Subminiature probe-tip-to-BNC.
BNC female-to-BNC female.
Connectors: BNC female-to-dual banana.
Use
Check 50 Q input
overload switching.
Check Trigger and CTT.
Signal source for gain
and transient response.
Check bandwidth and
triggering.
Check triggers and
coupling.
Check horizontal timing
and CTT.
Check power supply
ripple and output
signals. Troubleshooting.
Signal interconnection.
Signal interconnection.
Signal interconnection.
Signal interconnection.
Signal interconnection.
Signal interconnection.
Signal interconnection.
Signal interconnection.
Example of Applica-
ble Test Equipment
TEKTRONIX PS 503A.
TEKTRONIX SG 503.
TEKTRONIX PG 506.
TEKTRONIX SG 504
with Leveling head.
TEKTRONIX FG 501 A.
TEKTRONIX TG 501.
CTT requires TG501
Option 01.
TEKTRONIX
2467BCT/2465BCT.
TEKTRONIX Part
Number 103-0030-00.
TEKTRONIX Part
Number 012-0482-00.
TEKTRONIX Part
Number 012-0057-01.
TEKTRONIX Part
Number 067-0525-02.
TEKTRONIX Part
Number 011-0049-01.
TEKTRONIX Part
Number 013-0195-00.
TEKTRONIX Part
Number 103-0028-00.
TEKTRONIX Part
Number 103-0090-00.
4-2
