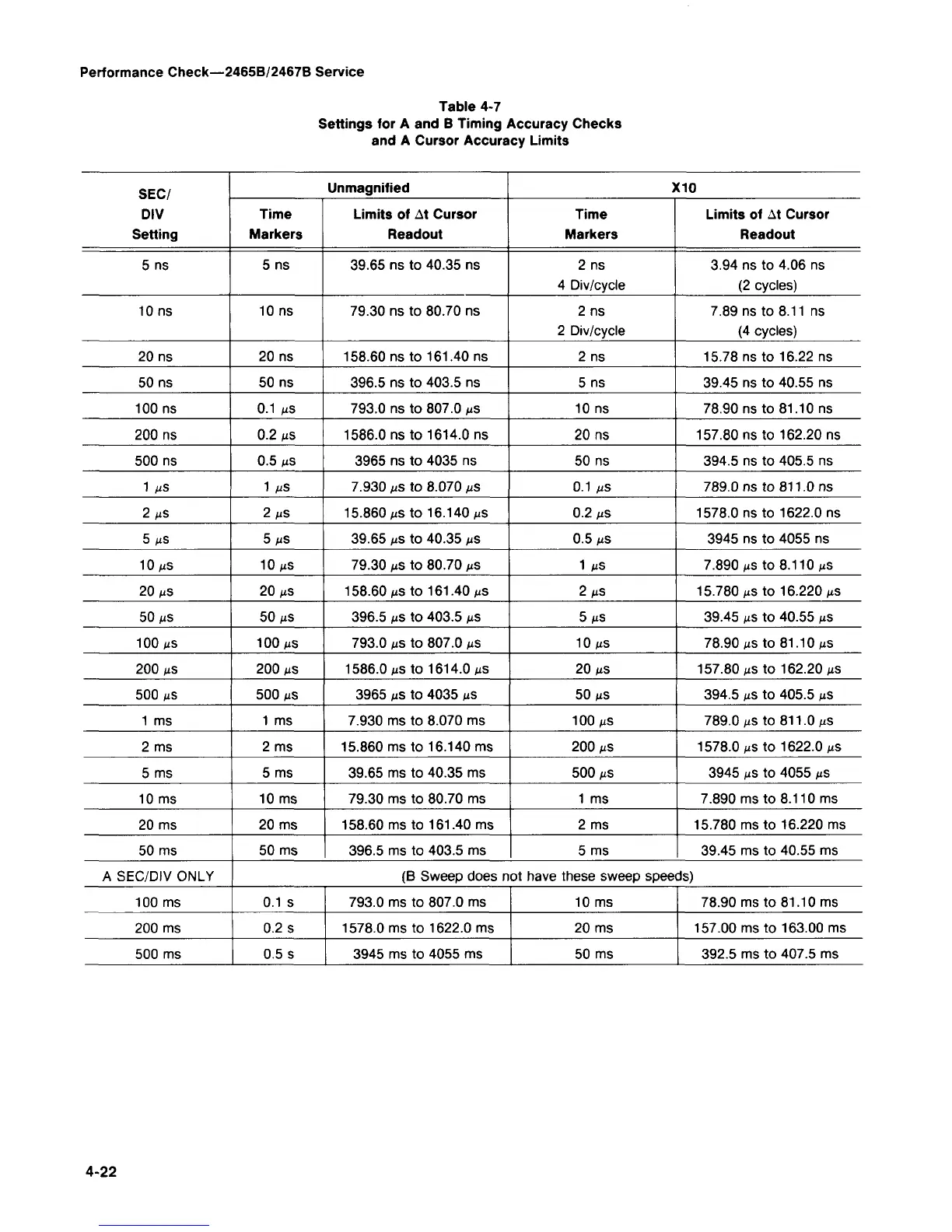

Performance Check—2465B/2467B Service
Table 4-7
Settings for A and B Timing Accuracy Checks
and A Cursor Accuracy Limits
SEC/
DIV
Setting
5 ns
10 ns
20 ns
50 ns
100 ns
200 ns
500 ns
1 MS
2 MS
5 MS
10 MS
20 MS
50 MS
100 MS
200 MS
500 MS
1 ms
2 ms
5 ms
10 ms
20 ms
50 ms
A SEC/DIV ONLY
100 ms
200 ms
500 ms
Unmagnified
Time
Markers
5 ns
10 ns
20 ns
50 ns
0.1 MS
0.2 MS
0.5 MS
1 MS
2 MS
5 MS
10 MS
20 MS
50 MS
100 MS
200 MS
500 MS
1 ms
2 ms
5 ms
10 ms
20 ms
50 ms
Limits of At Cursor
Readout
39.65 ns to 40.35 ns
79.30 ns to 80.70 ns
158.60 ns to 161.40 ns
396.5 ns to 403.5 ns
793.0 ns to 807.0 MS
1586.0 ns to 1614.0 ns
3965 ns to 4035 ns
7.930 MS to 8.070 MS
15.860 MS to 16.140 MS
39.65 MS to 40.35 MS
79.30 MS to 80.70 MS
158.60 MS to 161.40 MS
396.5 MS to 403.5 MS
793.0 MS to 807.0 MS
1586.0 MS to 1614.0 MS
3965 MS to 4035 MS
7.930 ms to 8.070 ms
15.860 ms to 16.140 ms
39.65 ms to 40.35 ms
79.30 ms to 80.70 ms
158.60 ms to 161.40 ms
396.5 ms to 403.5 ms
X10
Time
Markers
2 ns
4 Div/cycle
2 ns
2 Div/cycle
2 ns
5 ns
10 ns
20 ns
50 ns
0.1 MS
0.2 MS
0.5 MS
1 MS
2 MS
5 MS
10 MS
20 MS
50 MS
100 MS
200 MS
500 MS
1 ms
2 ms
5 ms
Limits of At Cursor
Readout
3.94 ns to 4.06 ns
(2 cycles)
7.89 ns to 8.11 ns
(4 cycles)
15.78 ns to 16.22 ns
39.45 ns to 40.55 ns
78.90 ns to 81.10 ns
157.80 ns to 162.20 ns
394.5 ns to 405.5 ns
789.0 ns to 811.0 ns
1578.0 ns to 1622.0 ns
3945 ns to 4055 ns
7.890 MS to 8.110 MS
15.780 MS to 16.220 MS
39.45 MS to 40.55 MS
78.90 MS to 81.10 MS
157.80 MS to 162.20 MS
394.5 MS to 405.5 MS
789.0 MS to 811.0 MS
1578.0 MS to 1622.0 MS
3945 MS to 4055 MS
7.890 ms to 8.110 ms
15.780 ms to 16.220 ms
39.45 ms to 40.55 ms
(B Sweep does not have these sweep speeds)
0.1 s
0.2 s
0.5 s
793.0 ms to 807.0 ms
1578.0 ms to 1622.0 ms
3945 ms to 4055 ms
10 ms
20 ms
50 ms
78.90 ms to 81.10 ms
157.00 ms to 163.00 ms
392.5 ms to 407.5 ms
4-22
