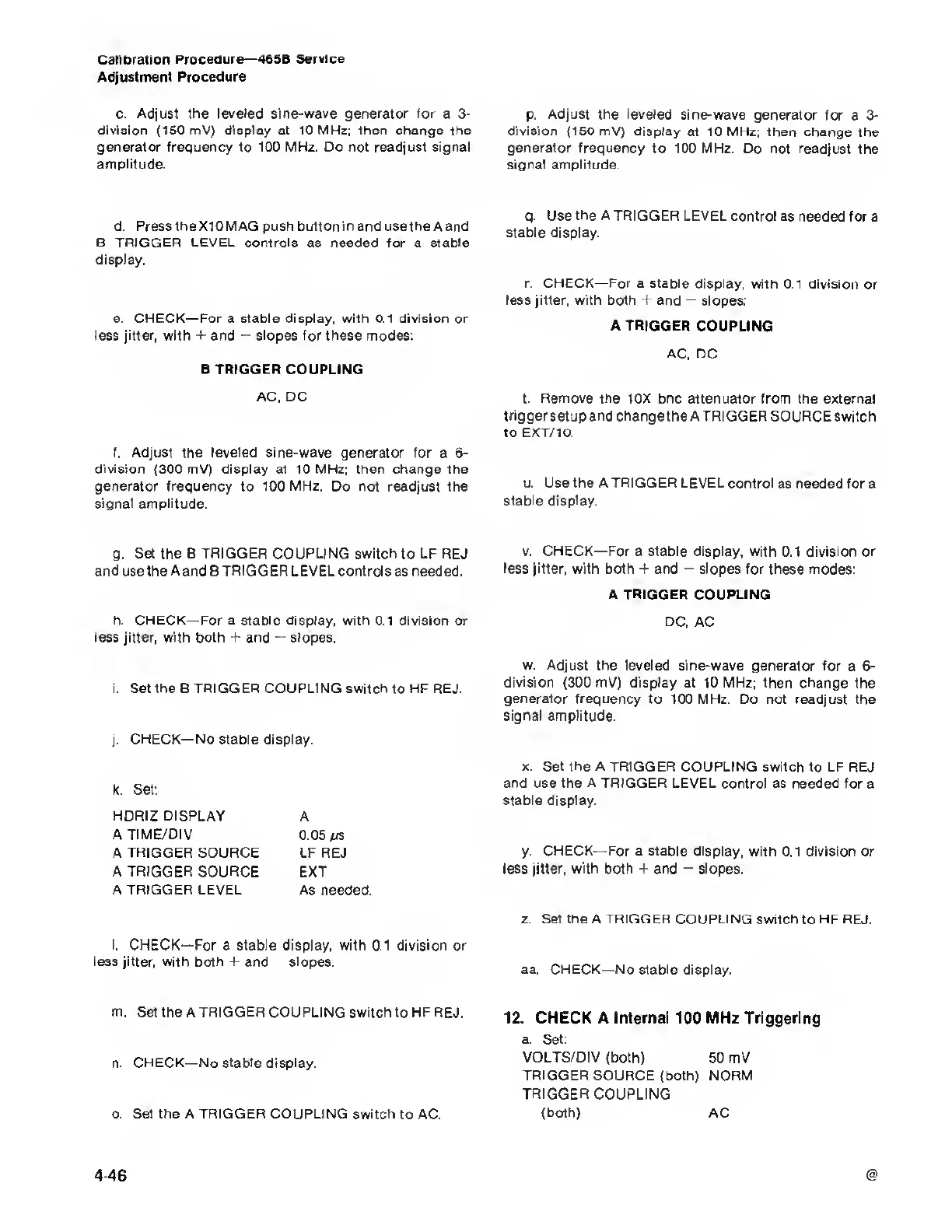

Calibration Procedure
—465B Service
Adjustment Procedure
c. Adjust the leveled sine- wave generator for a
3-
division
(150 mV)
display
at 10
MHz;
then change the
generator frequency to 100
MHz. Do not
readjust signal
amplitude.
d. Press the
XI
0 MAG push button in and usetheAand
B TRIGGER LEVEL controls as needed for a stable
display.
e. CHECK— For a stable display, with
0.1
division
or
less jitter, with
+
and
-
slopes for these modes;
B TRIGGER COUPLING
AC, DC
1. Adjust
the
leveled
sine-wave generator for a
6-
division
(300
mV) display at 10 MHz; then change the
generator frequency to 100 MHz. Do not readjust the
signal amplitude.
g.
Set the B
TRIGGER
COUPLING
switch
to LF REJ
and use the A and B TRIGGER LEVEL controls
as
needed.
h. CHECK— For a stable display, with 0.1 division
or
less jitter, with both +
and
-
slopes.
i. Set the B TRIGGER COUPLING
switch to HF REJ.
j.
CHECK—
No
stable display.
K.
Set:
HORIZ DISPLAY A
ATIME/DIV
0.05
f/s
A TRIGGER SOURCE LF REJ
A TRIGGER SOURCE EXT
A TRIGGER
LEVEL As needed.
I. CHECK—For a stable display, with
0.1
division
or
Ies3
jitter, with both + and slopes.
m. Set the A TRIGGER COUPLING switch
to
HF
REJ.
n. CHECK—
No
stable display.
o. Set
the A TRIGGER
COUPLING switch to AC.
p.
Adjust
the leveled
sine-wave generator
for a
3-
division
(150 mV) display at 10 MHz;
then change the
generator
frequency to 100 MHz. Do not
readjust the
signal
amplitude.
q.
Use the A TRIGGER LEVEL
control as needed for a
stable display.
r.
CHECK—For
a stable display, with 0.1 division
or
less jitter, with
both
+
and
-
slopes:
A
TRIGGER COUPLING
AC, DC
t. Remove the 10X bnc attenuator
from the
external
trigger
setup and change the A TRIGGER SOURCE switch
to
EXT/10.
u. Use the A TRIGGER
LEVEL control as needed for a
stable display.
v. CHECK—
For a
stable display,
with 0.1 division or
less jitter, with both + and
-
slopes for
these modes:
A
TRIGGER
COUPLING
DC, AC
w. Adjust the leveled sine-wave
generator for a
6-
division (300 mV) display
at 10 MHz; then change the
generator frequency to 100 MHz.
Do not
readjust
the
signal amplitude.
x. Set the A TRIGGER COUPLING
switch to LF REJ
and use the A TRIGGER LEVEL
control as needed for a
stable display.
y.
CHECK—For a stable display,
with 0.1 division or
less
jitter,
with
both + and
-
slopes.
z. Set the A
TRIGGER
COUPLING switch
to
HF REJ
aa. CHECK—No stable display.
12. CHECK A Internal 100 MHz Triggering
a. Set:
VOLTS/DIV
(both) 50 mV
TRIGGER
SOURCE
(both) NORM
TRIGGER COUPLING
(both) AC
