Operating
Instructions—
465B Service

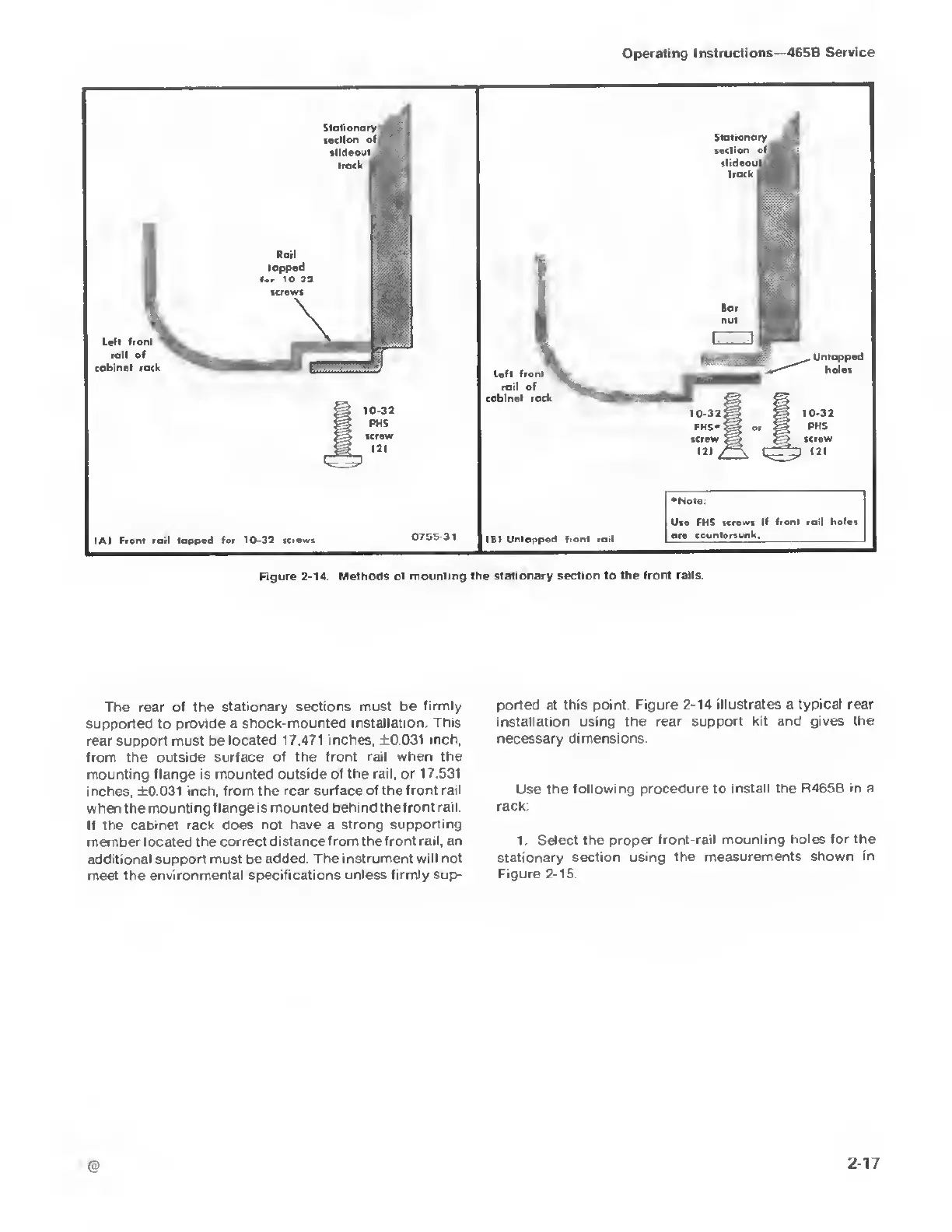

Figure
2-14.
Methods of mounting the
stationary section to the front rails.
The rear of the
stationary sections must be firmly
ported at
this point. Figure
2-14 illustrates a typical rear
supported to provide a shock-mounted
installation This
installation using the rear support kit
and gives the
rear support must be located
17.471 inches, ±0.031 inch,
necessary dimensions
from the outside surface of the front
rail when the
mounting
flange
is
mounted outside of the rail,
or 17.531
inches, ±0.031
inch, from the rear surface of the
front rail
Use the
following procedure to install the
R465B in a
when the mounting
flange
is
mounted behi nd the front
rail.
rack:
If the cabinet rack does not
have
a
strong supporting
member located the correct
distance from the front
rail,
an
1 Select
the proper
front-rail
mounting
holes for the
additional support must be
added. The instrument
will not
stationary section using the
measurements shown in
meet the
environmental specifications unless firmly sup-
Figure
2-15.
2-17
