Theory
of Operation—
465B Service

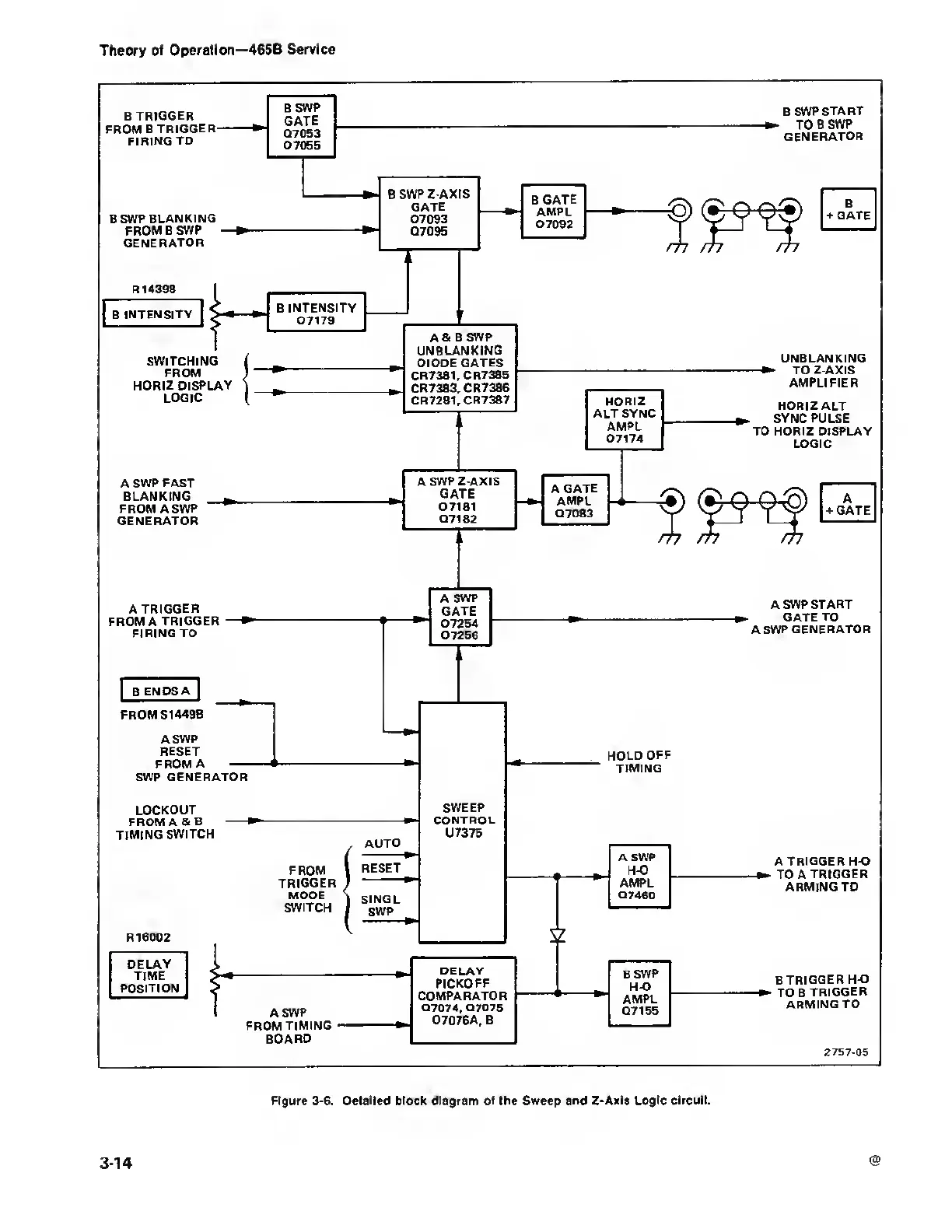

Figure
3-6.
Detailed block diagram of the Sweep and Z-Axis
Logic circuit.
3-14
