Field or control Description
Number of sec windings Sets the number of secondary windings to measure. The range is from 1 to 6. Measure the
magnetic property of secondary windings such as in a coupled inductor or a transformer that
has multiple windings on the same core.

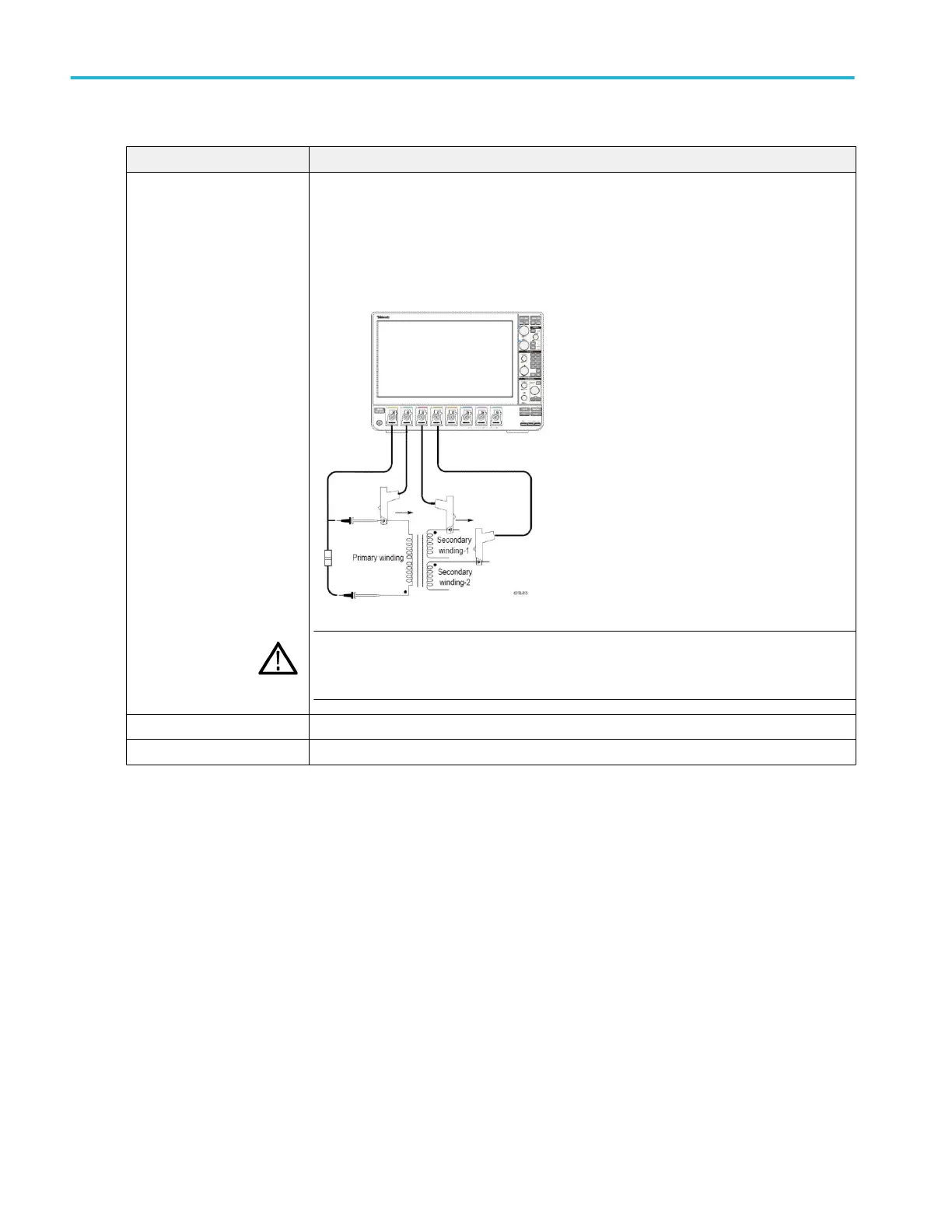

Follow the connection combinations of the voltage and current probe at the primary or the main
winding at the secondary or the other windings to the · dot as shown in the following figure. The
voltage probe should be connected such that the voltage is read as positive when the current
rises.
WARNING. When connecting to a circuit with hazardous voltages, see the warnings for the
individual products and verify that the probes and other components used are within their
ratings. For more information, refer to the topic General safety summary.
Winding (1-6) Sets the signal source used to measure the selected winding. The range is from 1 to 6.
Turns (1-6) Sets the number of turns in the respective secondary winding.
Menus and dialog boxes
184 MSO54, MSO56, MSO58, MSO58LP, MSO64 Help
