Specifications
Table 1-23: Sync clock output (cont.)
Characteristics Description
Output amplitude 1.0 ± 0.15 V
pp
into 50 Ω
Frequency
Clock output ÷ 80
Table 1-24: Sequencer
Characteristics Description
Maximum number of steps
16,383
Waveform repeat Selectable:
Infinity
Variable from 1
to 1,048,576

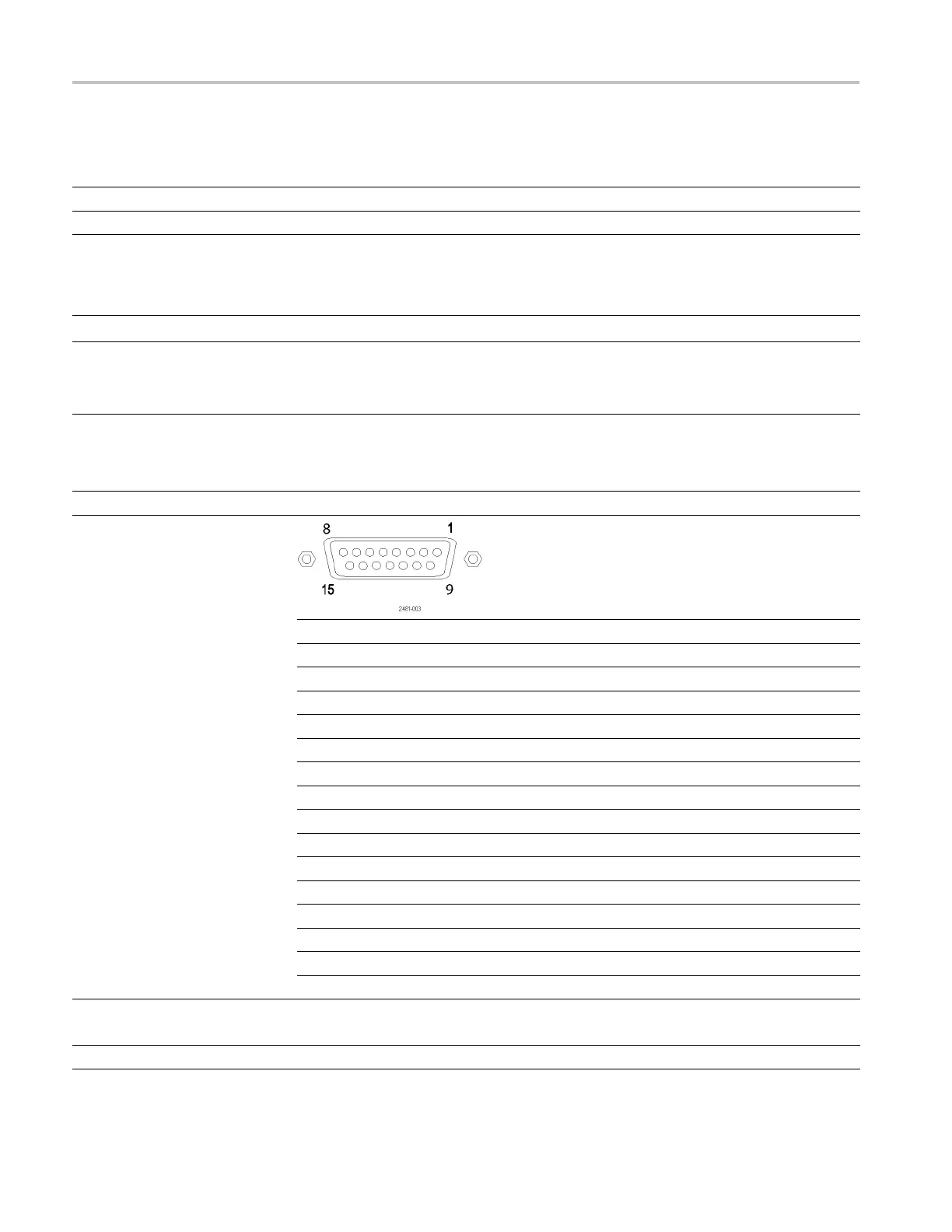

Table 1-25: Pattern Jump In connector
Characteristics Description
Connector type 15-pin D-sub female connector on rear panel
Pin assignments
1
GND
2 Data bit 0, input
3 Data bit 1, input
4 Data bit 2, input
5
Data bit 3, input
6
GND
7
Strobe, input
8
GND
9
GND
10 Data bit 4, input
11 Data bit 5, input
12 Data bit 6, input
13 Data bit 7, input
14
GND
Input signal pin assignment
15
GND
Input levels
3.3 V LVCMOS
5 V TTL compliant
Input impedance
1kΩ resistor pull down to GND
1–16 AWG70000A Series and AWGSYNC01 Technical Reference

Tektronix AWG70001A Specifications
