Tektronix AWG70001A User Manual

Performance verification procedures
Input and output options
The instrument has two USB ports on the front panel, and four USB ports on
the rear panel. (See Figure 2-1.) These ports can be used for an external mouse
and/or keyboard. Additionally, an external video display can be connected to the
VGA display port on the rear panel.

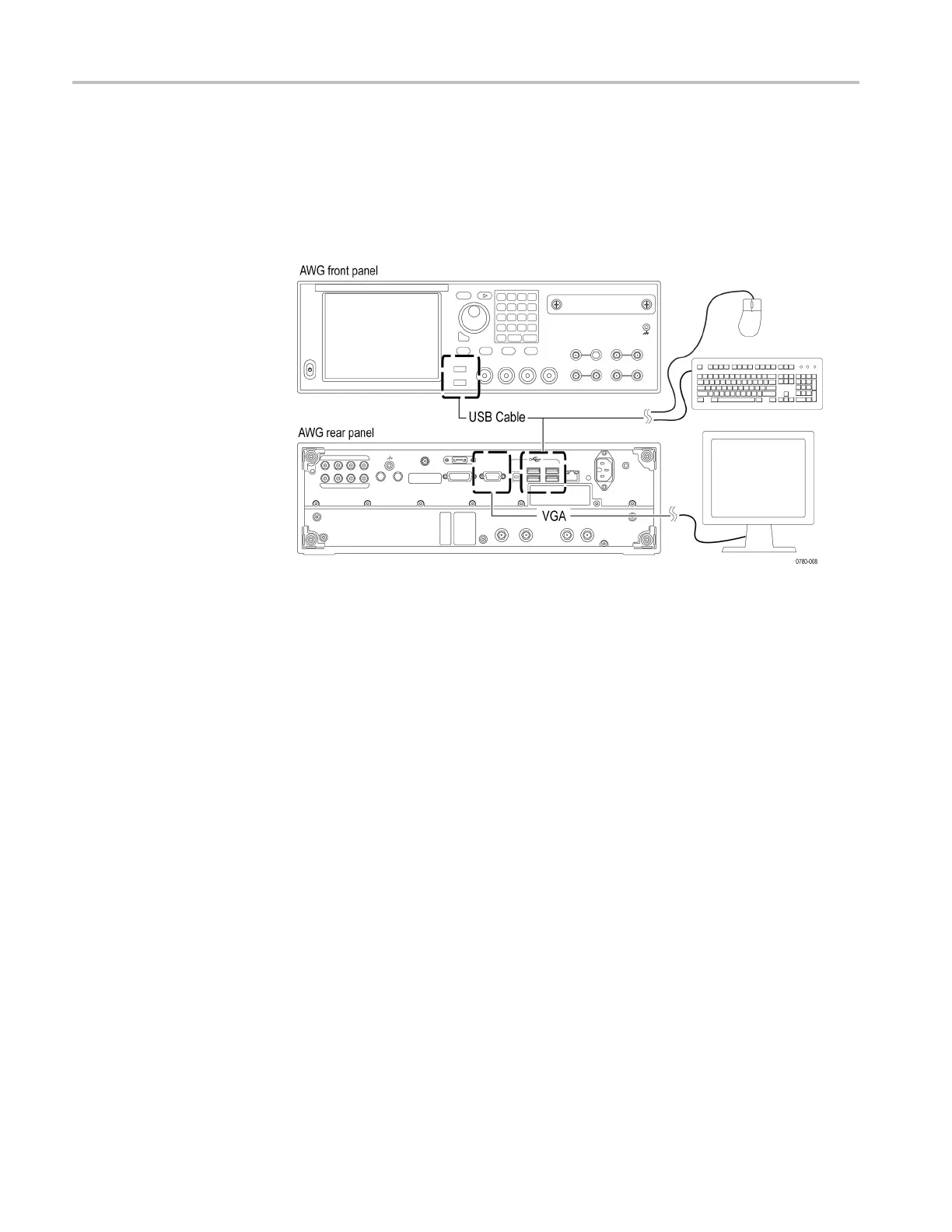

Figure 2-1: Peripheral connections
2–2 AWG70000A Series and AWGSYNC01 Technical Reference
