Tektronix DPO70000C/DX Series User Manual

Analyzing wavef
orms

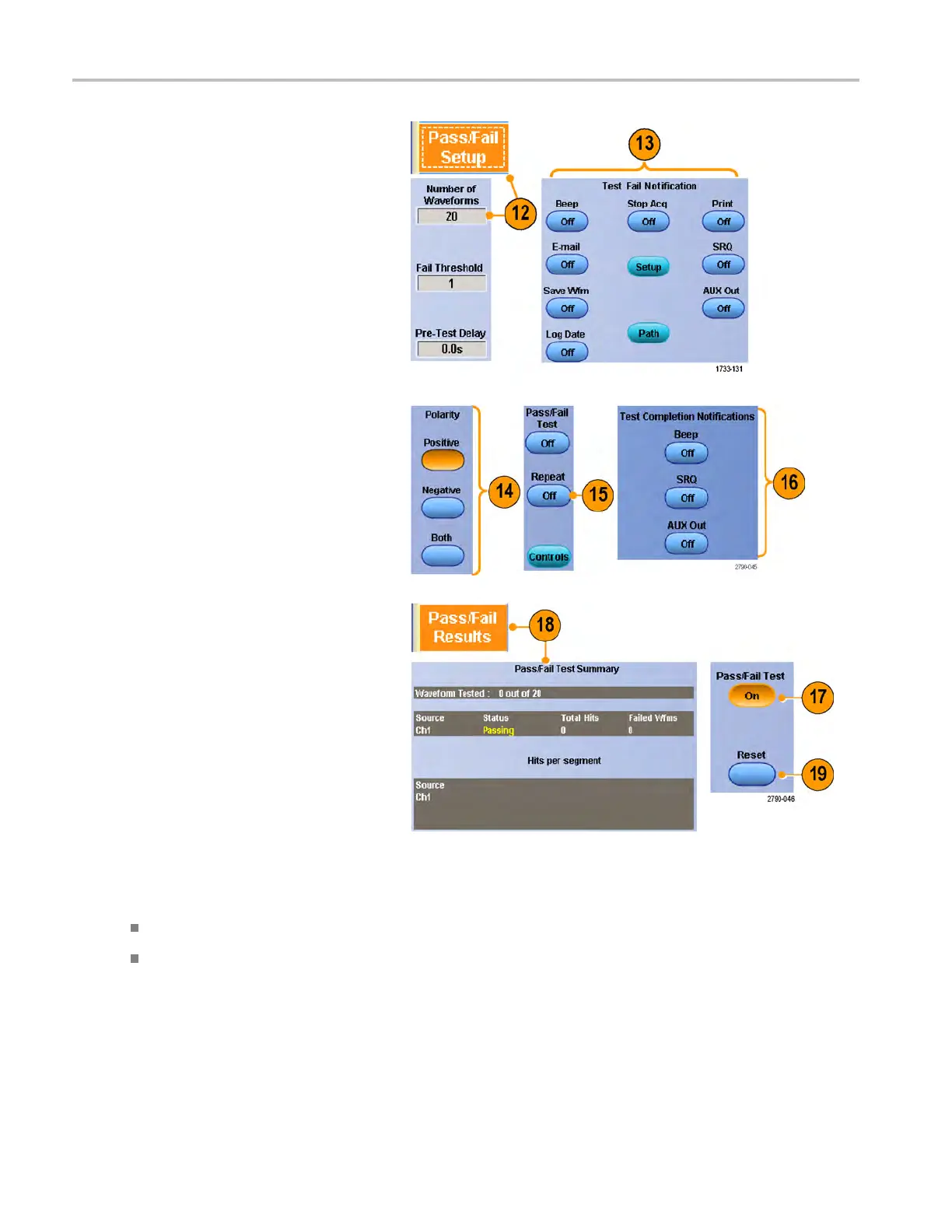

12. Select the Pass/Fail Setup tab, and then
set up the pass/fail parameters. (When
acquisition m
ode is Waveform Database,
the # of Wfms label becomes Samples.)
13. S elect your Pass/Fail Test Notifications.
14. S elect the polarity of the waveform you
want to test.
15. Toggle Repeat On to run the mask test
continuously.
16. S elect the notice you want when the test
is complete.
17. Click the Pass/Fail Results tab to view
the tes
t results.
18. Click P
ass/Fail Test On to start the mask
test.
19. Click Reset to reset the totals and clear
any violations.
Quick tips
Mask testing i s not available on digital channel waveforms.
If the signal is not within the mask, enable Autoset to center the waveform in the mask.
140 MSO/DPO70000DX, MSO/DPO70000C, DPO7000C, and MSO /DP O5000 Series U ser Manual
