Tektronix DPO70000C/DX Series User Manual

Appendix D
Connecting the probe to the oscilloscope

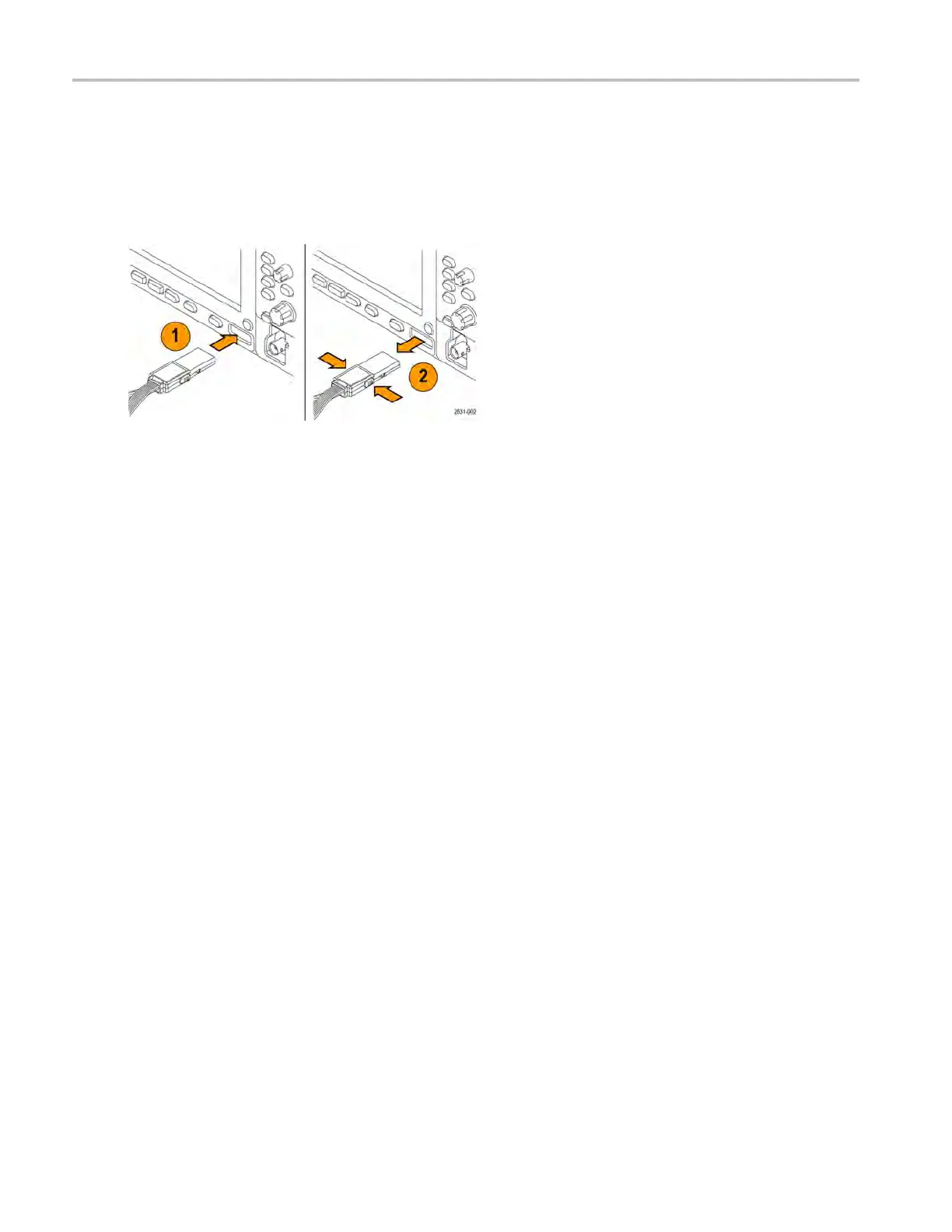

Connect the probe as shown in the illustration below.
1. Insert the probe label-side up into the connector on the oscilloscope.
2. To remove the probe, squeeze the buttons on the side and pull out the probe.
