Tektronix DPO70000C/DX Series User Manual

Acquisition
Settingupabus
You can set up serial (optional) and parallel buses.

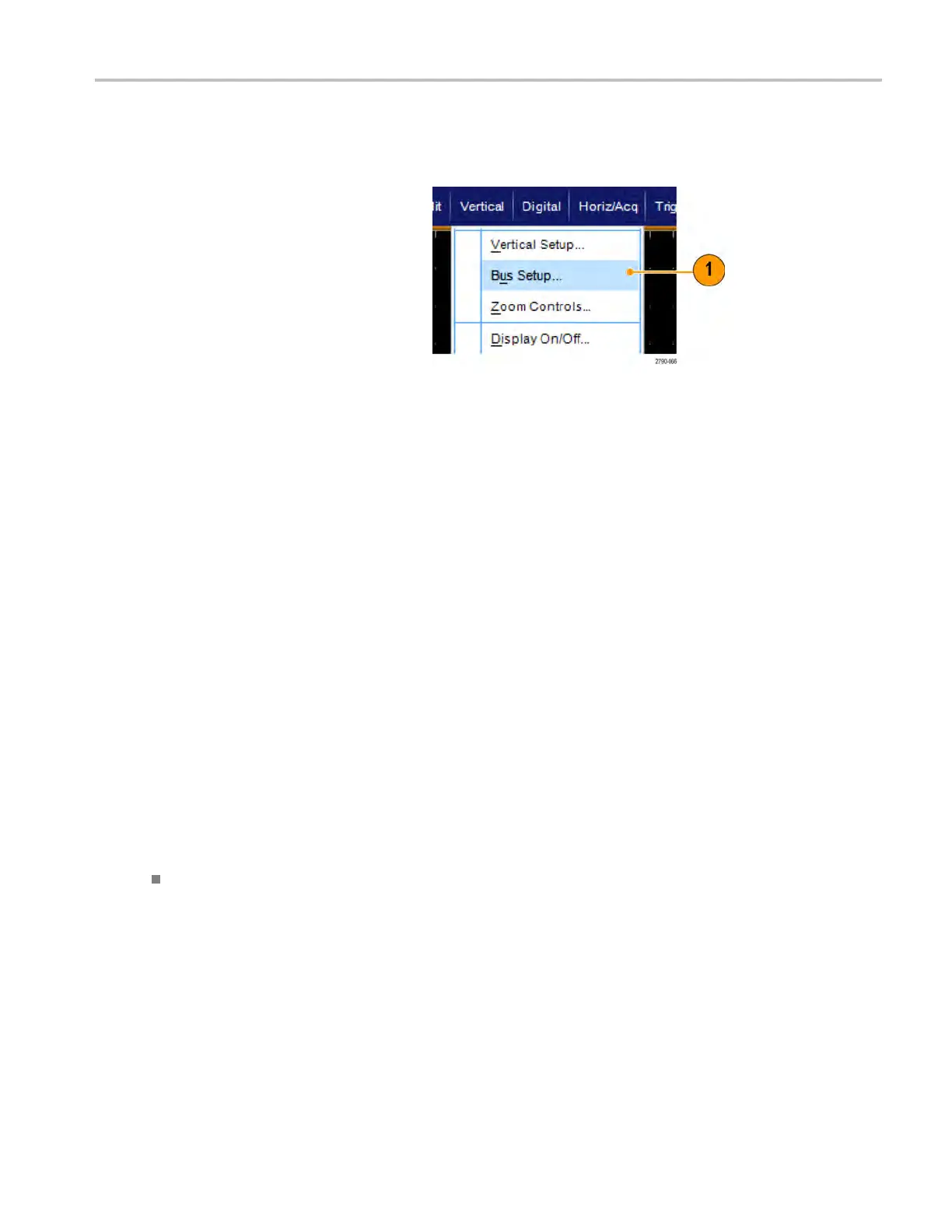

1. Select Vertical > Bus S etup or, on some
instruments, Digital > Bu s Setup.
2. Select the Config tab.
3. Scroll to, and then select the bus to set
up.
4. To toggle the display of the bus on or off,
click the
Bus button.
5. To chang
e the default label of the bus,
click Label and enter a new label using
the keyboard.
6. To change the displayed position of the
bus, cl
ick Bus Position and use the
keyboard or multipurpose knob to enter
a new bus position.
7. To select the bus type, click Bus Type
Serial or Parallel.
You ca
n set up each bus type.
(See page 54, Set up a serial bus.) or (See
page 55, Set up a parallel bus.)
Qui
ck tips
Position a bus or waveform by clicking on the bus or waveform handle and dragging the handle to the desired position.
MSO/DPO70000DX, MSO/DPO70000C, DP O7000C, and MS O/DPO5000 Series U ser M anual 53
