Tektronix DPO70000C/DX Series User Manual

Getting acquain
ted with your instrument

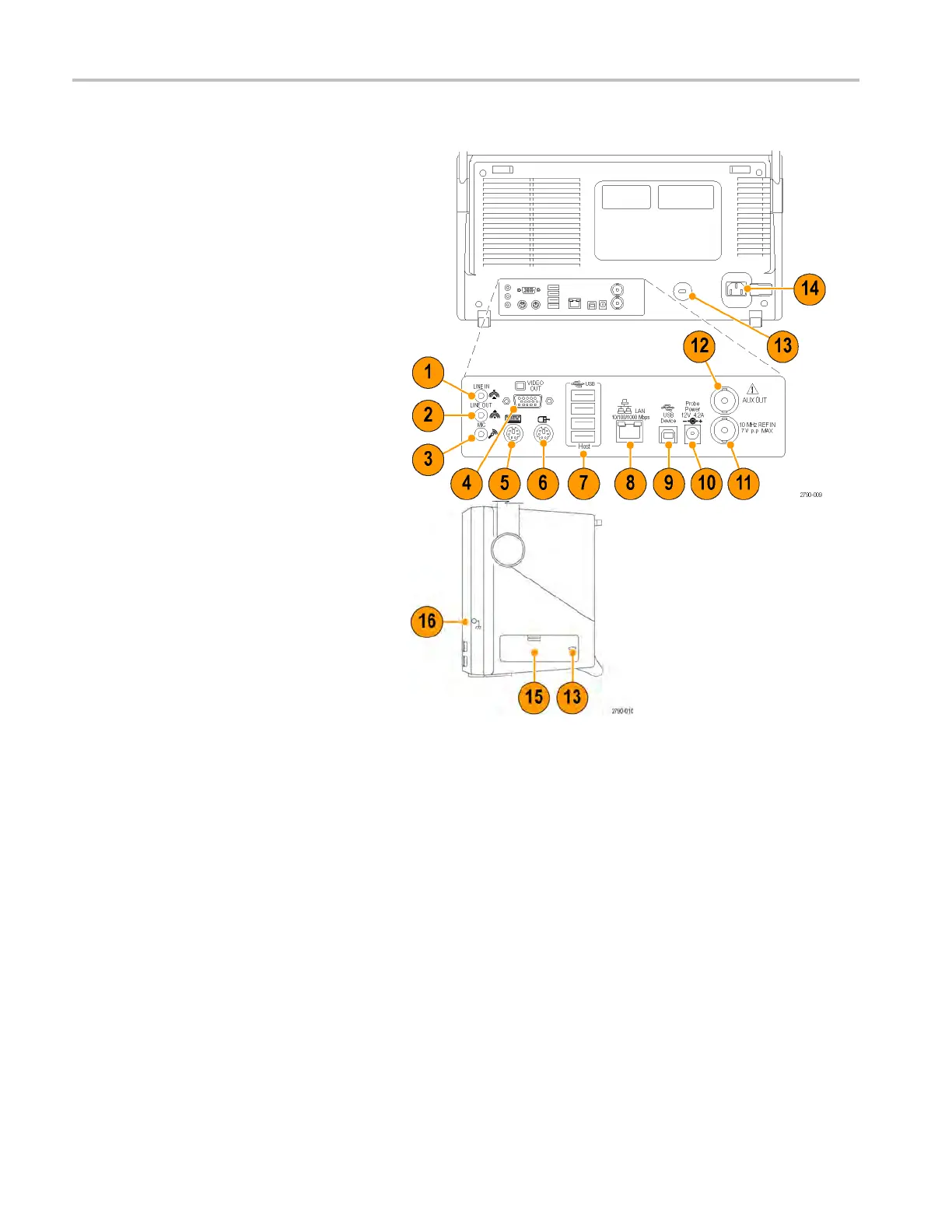

MSO5000 and DPO5000
1. Line In connector
2. Line Out connector for speaker
3. Mic connector for microphone
4. Video port to connect a monitor
5. PS-2 connector for keyboard
6. PS-2 connector for mouse
7. USB host ports
8. RJ-45 LAN connector to connect to
network
9. USBDeviceport
10. Probe Power input, use 119-7465-xx
power supply
11. External reference input
12. A uxiliary output
13. S ecurity lock input
14. AC Power input
15. Rem ovable hard disk drive cover
16. Ground connection
MSO5000 and DPO5000 Series
22 MSO/DPO70000DX, MSO/DPO70000C, DPO7000C, and MSO /DP O5000 Series U ser Manual
