Acquisition

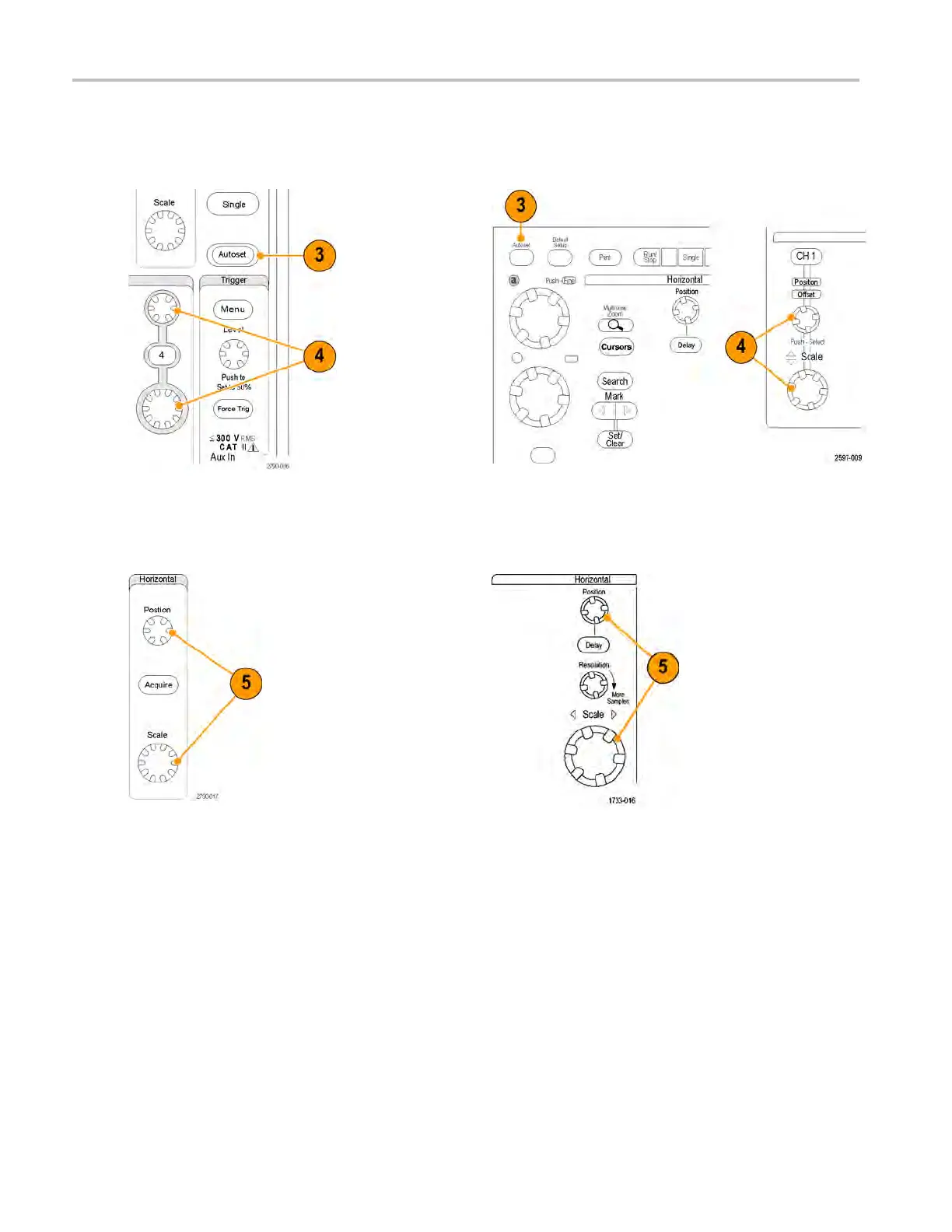

3. Push Autoset.

4. Adjust the ver

tical position, scale, and offset using the front-panel knobs.

MSO5000 a

nd DPO5000 Series

MSO/DPO7 0000DX, MSO/DPO70000C, and DPO7000C Ser ies

5. Adjust th

e horizontal position and scale using the front-panel knobs.

The horizontal position determines the number of pretrigger and posttrigger samples.

MSO5000 and DPO5000 Seri es

MSO/DPO7 0000DX, MSO/DPO70000C, and DPO7000C Ser ies

34 MSO/DPO70000DX, MSO/DPO70000C, DPO7000C, and MSO /DP O5000 Series U ser Manual
