To use.
■

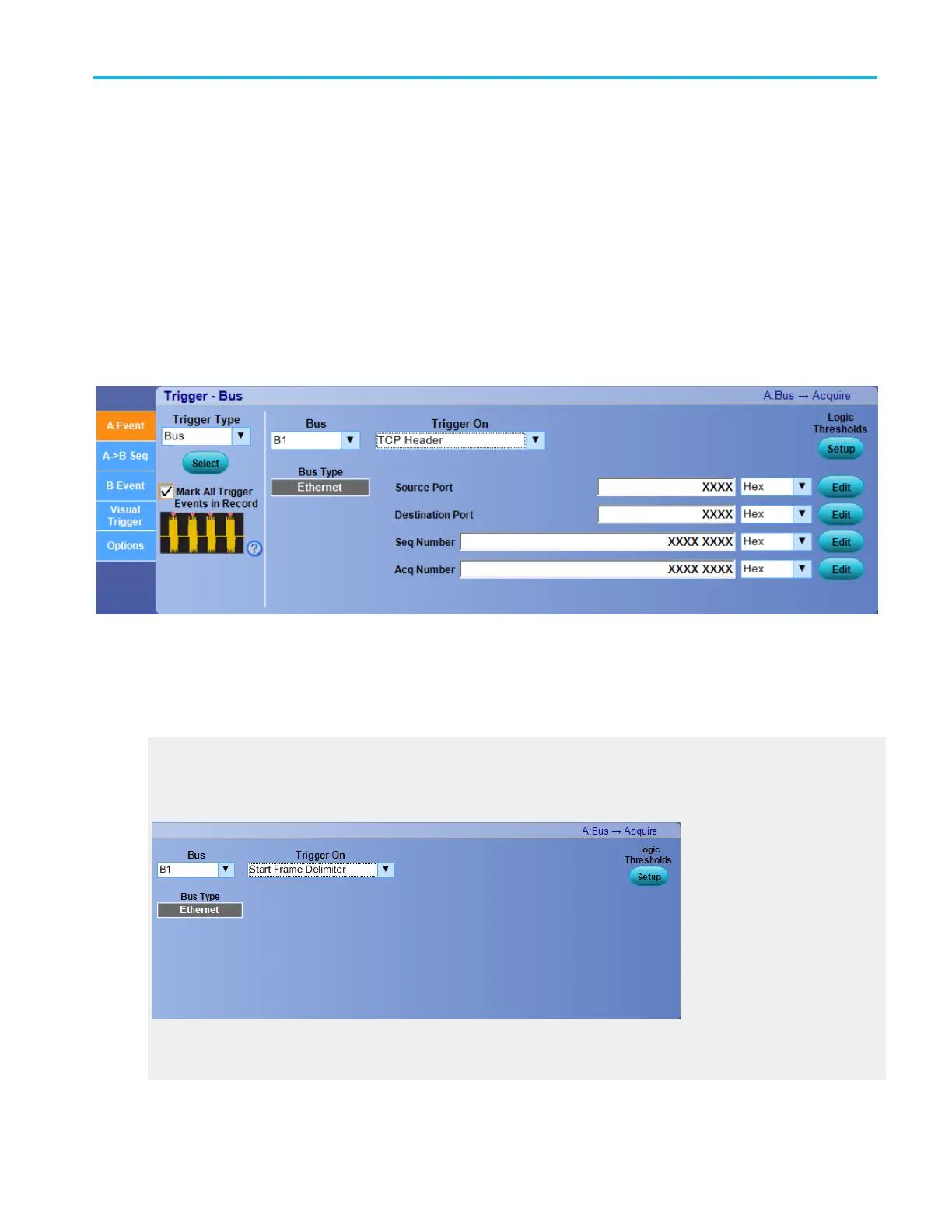

Click the Trigger Type box and select Bus from the drop-down list.
■
Click the Bus box and select the bus number or name from the drop-down list.
■
Click the Logic Thresholds Setup button to set the voltage threshold levels for the channels in the bus.
■
Select the type of bus cycle or activity to use as the trigger from the Trigger On drop-down list.
■
For some Trigger On selections, you must set additional fields to define other parameters such as for a TCP Header.
In this example, you need to set the Source Port, Destination Port, Seq Number, and set the Acq Number.
Click the Trigger On selections Start Frame Delimiter, MAC Addresses, Q-Tag Control Information, MAC Length/Type, IPv4
Header, TCP/IPv4 Client Data, MAC Data, End of Packet, Idle, or FCS (CRC) Error to view their parameters.
What do you want to do next?
Learn about bus setups.
Trigger on Start Frame Delimiter
Select Start Frame Delimiter to trigger on an Ethernet Start Frame Delimiter.
Trigger on MAC Addresses
For Trigger On MAC Addresses you need to set the Source MAC and the Destination MAC.
Trigger setups
DPO70000SX, MSO/DPO70000DX, MSO/DPO70000C, DPO7000C, and MSO/DPO5000B Series 409
