This command se
ts a delay time (or distance) for the specified Mag channel
waveforms between the trigger event and the horizontal reference point for the
Mag timebase, which is set with the HORizontal:MAG<x>:REFPoint command.
The minimum position you can set is limited to one of the following settings,
depending on the current hardware configuration:
If there are no sampling modules on extender cables, the minimum horizontal
position is set to the insertion delay of the module having the highest insertion
delay specification. This is the typical value, not the actual hardware
minimum va
lue (insertion delay, or the minimum time from an external
trigger event to the fi rst acquired sample).
If there a
re one or more sampling modules on extender cables, then the
minimum horizontal position is set to the combined insertion delay and
extender delay of the module having the highest combination of insertion
delay specification plus attached extender delay. The minimum horizontal
position governs the smallest horizontal position you can set. C hanging
the main timebase position can affect the position of each Mag timebase;
howeve
r, Mag timebase positions cannot affect the main timebase position.
Mag acquisitions are contained within the Main timebase acquisitions.

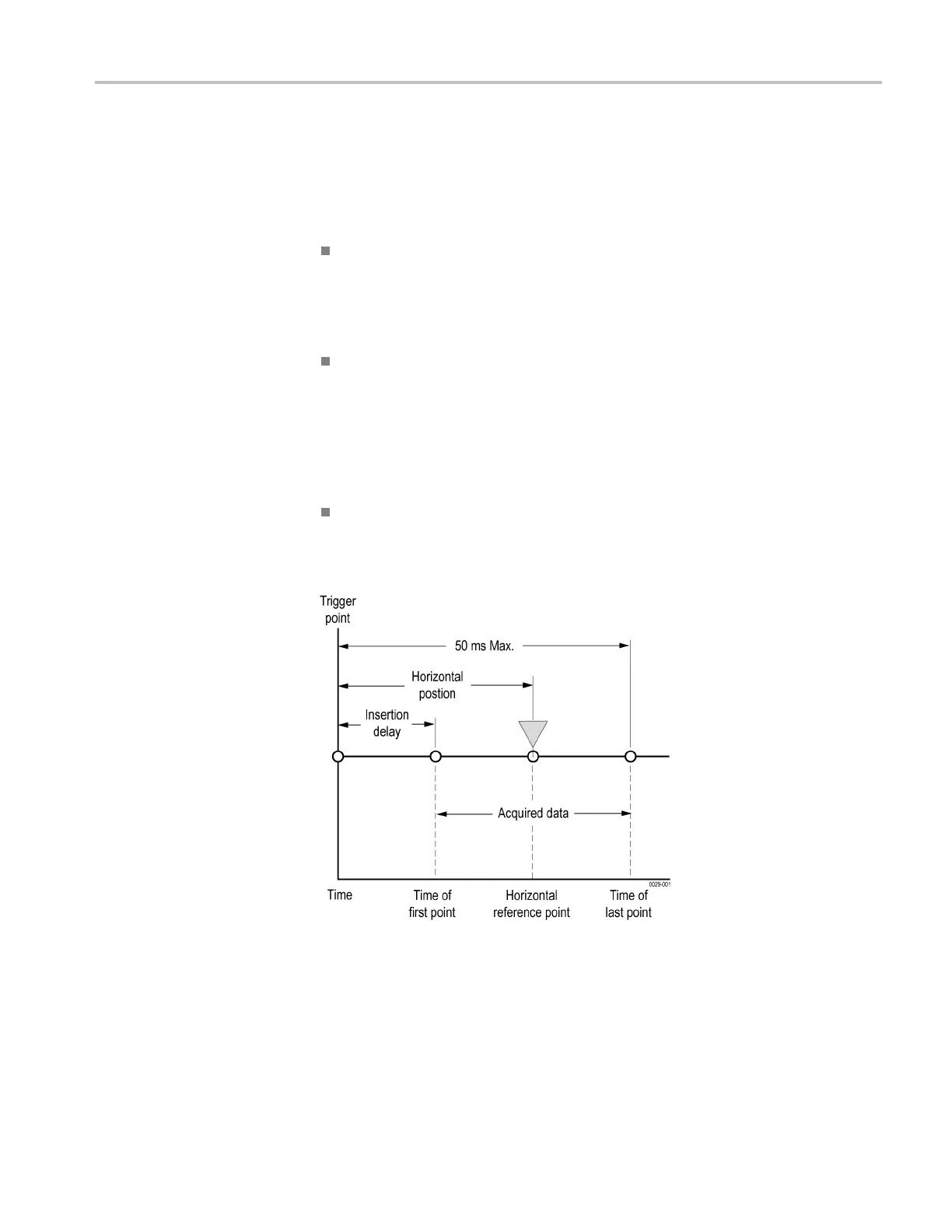

Refer to the illustration below for a diagram of the relationships of horizontal
position, horizontal reference point, time of first point, and time of last point.
The position of the Mag timebase is constrained to be in the domain of the Main
timebase. Changing the Main timebase position can affect the position of each
Mag timebase, but a Mag timebase position cannot affect the Main timebase
position.
Group
Horizontal
DSA/CSA/TDS8X00/B Series Programmer Manual 2-165
