HORizontal:MA
In:SCAle, HORizontal:MAIn:RESolution?
Arguments
NR1 is the record length; valid record lengths are 20, 50, 100, 250, 500, 1000,
2000, and 4000 samples.
Exa
mples
HORIZONTAL:MAIN:RECORDLENG TH 500 sets the record length for the Main
timebase to 500 samples.
HORIZONTAL:MAIN:RECORDLENG TH ? might return
HORIZONTAL:MAIN:RECORDLENG TH 1000 , indicating that the record length for
the Main timebase is set to 1000 samples.
HORizontal:MAIn:REFPoint
This command sets or queries the horizontal reference point for the Main
timebase. The horizontal reference point is the horizontal position around which
the HORizontal:MAIn:SCAle command contracts or expands the waveform,
which affects the acquired and observable horizontal window of data. The
horizontal reference position is set as a fraction of the record; 0.5 (50% of the
record) i s the default.
This command is equivalent to setting a value in the Horizontal Reference
control in the Timebase section of the Horizontal Setup dialog box or moving the
Horizontal Reference Point indicator at the top of the Main view.

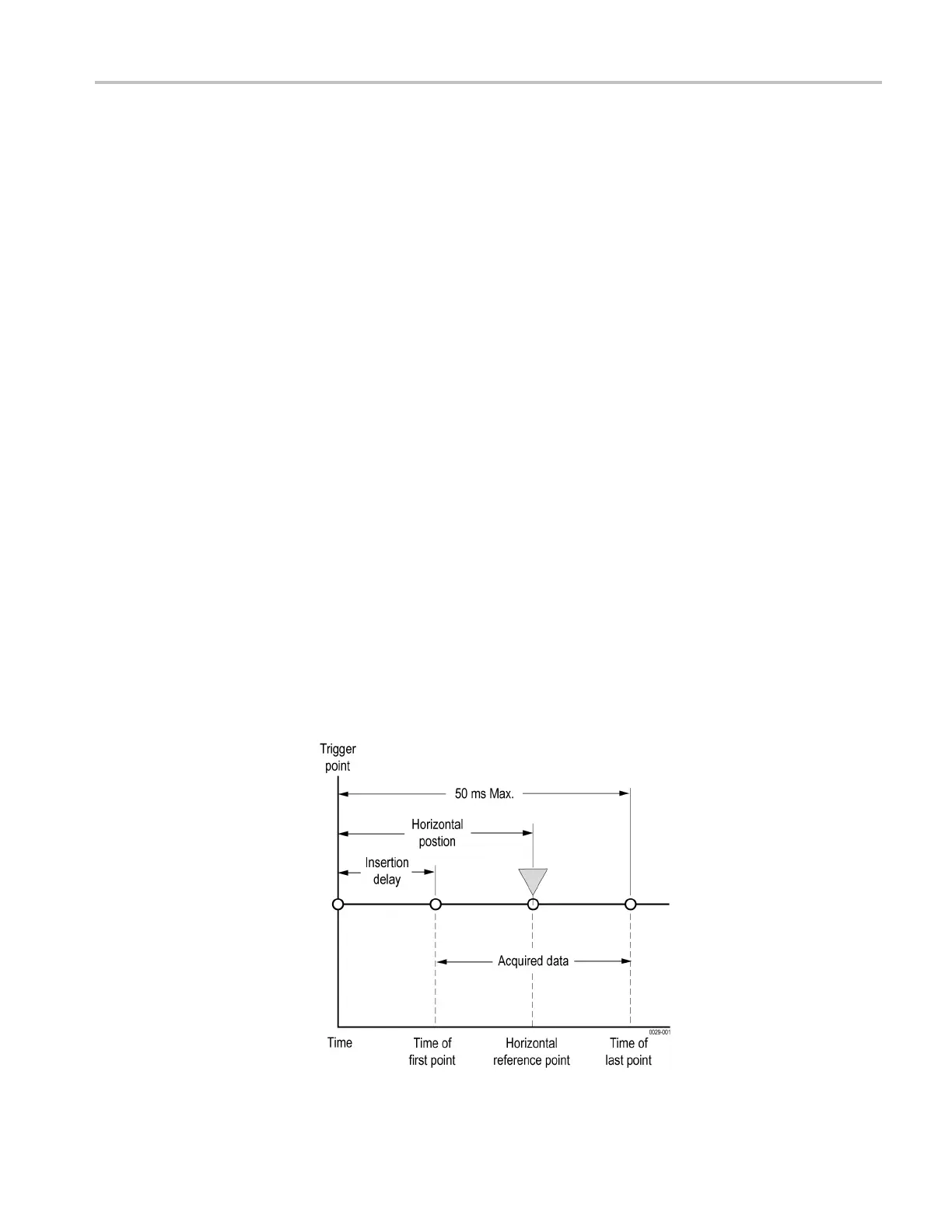

Refer to the illustration below for a diagram of the relationships of horizontal
reference point, time o f first point, time of last point, and horizontal position.
DSA/CSA/TDS8X00/B Series Programmer Manual 2-175
