Series 2600B System SourceMeter® instrument User's Manual Section 4: Operation
2600BS-900-01 Rev. A / August 2021 4-27

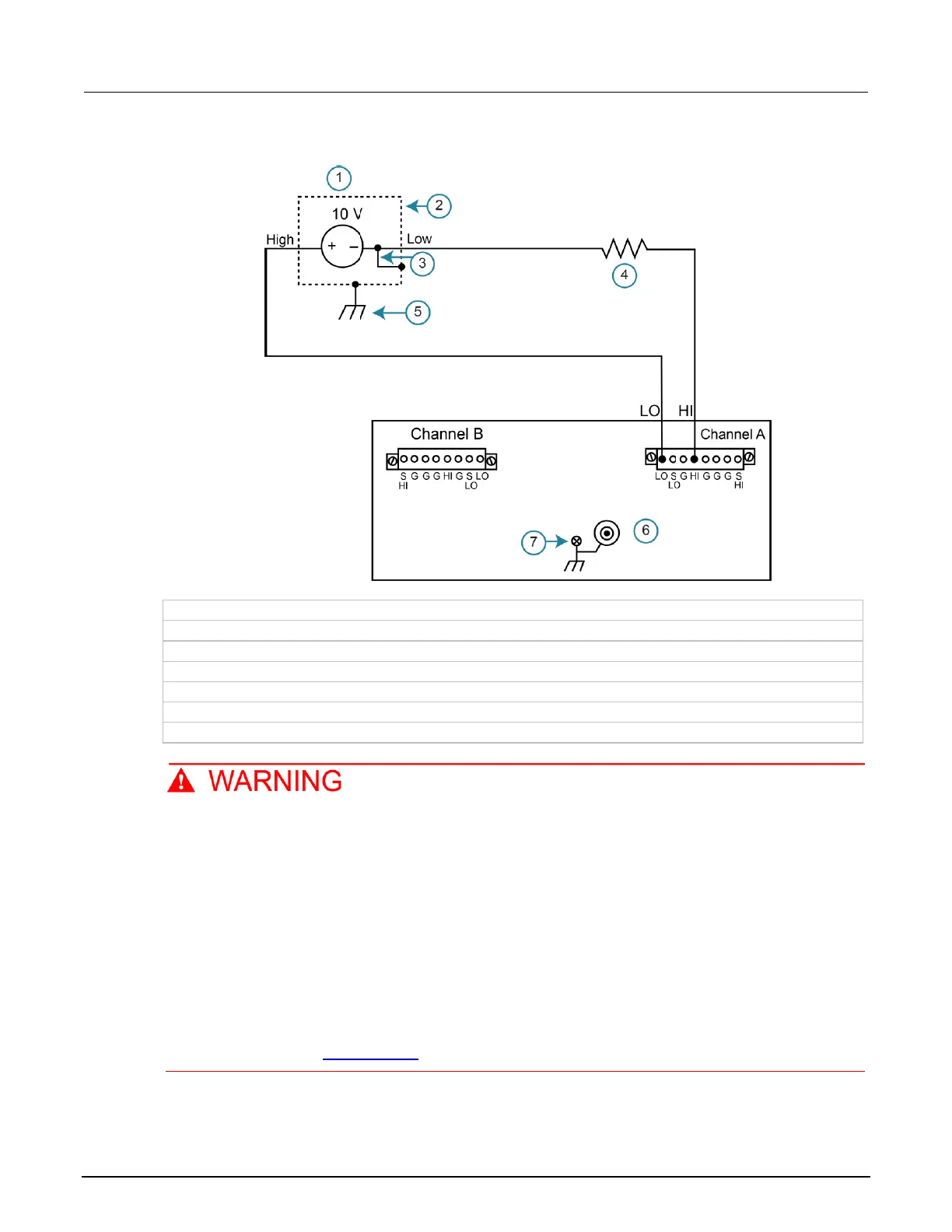

Figure 39: 2601B, 2602B, 2604B, 2611B, 2612B, or 2614B SMU connections
1 External source
2 Chassis
3 Output low connected to chassis
4 DUT
5 Source chassis connected to chassis earth ground through the power cord
6 Low-noise chassis ground banana jack
7 Chassis screw
All measurement connections should be considered to be hazardous.
The maximum floating (common mode) voltage for a source-measure unit (SMU) is ±250 V.
Exceeding this level may cause damage to the instrument and create a shock hazard.
Using an external source to float a SMU could create a shock hazard in the test circuit. A
shock hazard exists whenever >42 V
PEAK
is present in the test circuit. Appropriately rated
cables or insulators must be provided for all connections to prevent access to live parts.
When >42 V is present, the test circuit must be insulated for the voltage used or surrounded
by a metal safety shield that is connected to a known protective earth (safety ground) and
chassis ground (see Safety shield (on page 4-16)).
