8. Display indicators (not shown)
The items listed below represent the possible display indicators and their meanings.
Remote (4-wire) sense is selected
Source or measure autorange is selected
Instrument is in editing mode
Questionable reading or invalid calibration step
Digital filter is enabled
Instrument is addressed to listen
Instrument is in remote mode
Service request is asserted
Instrument is addressed to talk
Readings are being stored in the buffer
Rear panel
The rear panels of the 2600B is shown below. The descriptions of the rear-panel components follow
the figures.

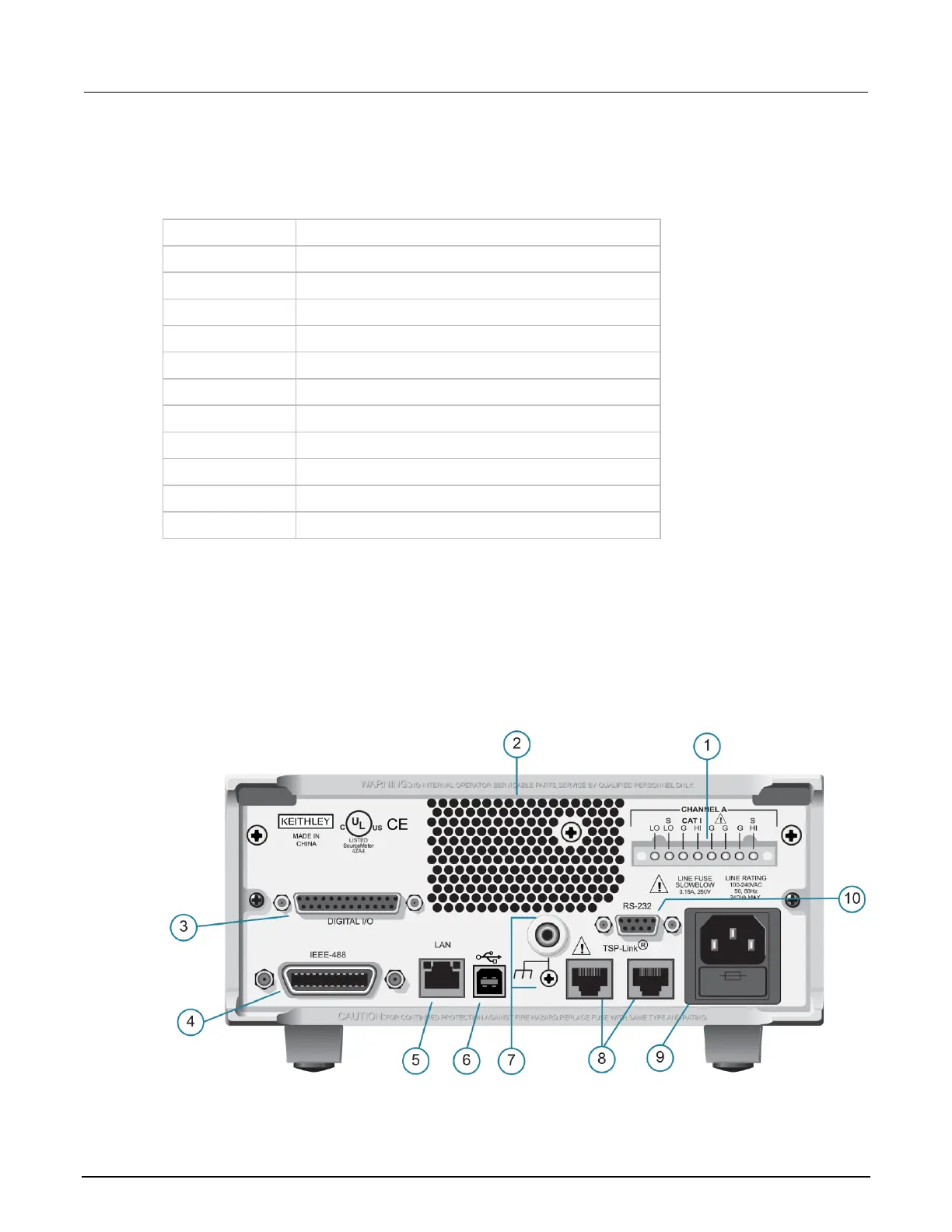

Figure 3: 2601B and 2611B rear panel
