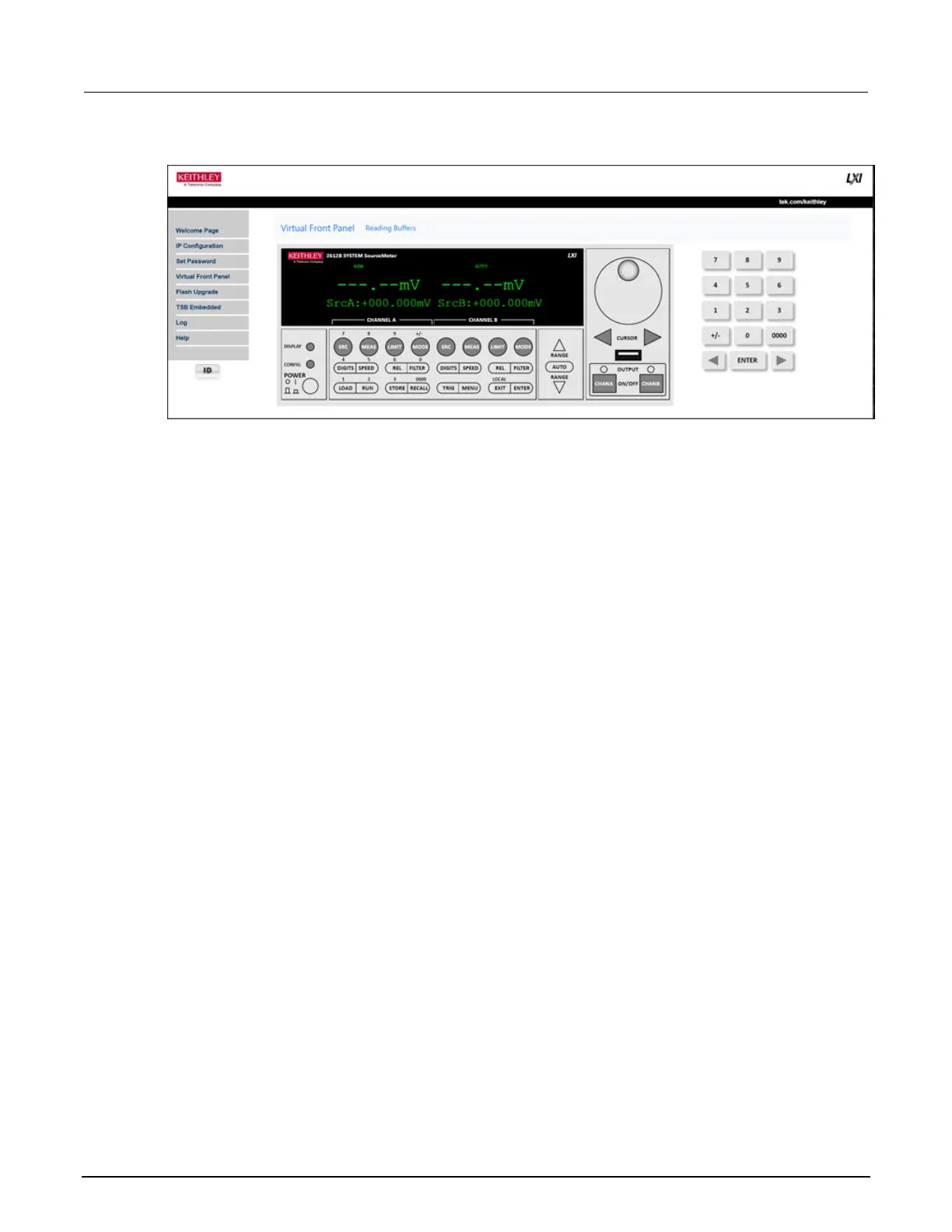

Figure 18: Virtual front panel
View buffer data using the web interface
You can view the data in the reading buffers on the Reading Buffers page of the Virtual Front Panel
web page.
To view the data, at the top of the virtual front panel, select Reading Buffers. On the Reading Buffers
page, select a reading buffer from the Reading Buffer list. The data is displayed in the table.
Initially, the reading number and reading measurement values are displayed. You can display
additional data using the filters to the right of the table. You can choose:
• Measurement: Include or exclude measurement information.
• Source: Include or exclude source information.
• Other: Include or exclude status, status detail, and timestamp information. For detail on the
Status value, refer to “Buffer status” in the Series 2600B Reference Manual.
An example of the Reading Buffers page with the measurement and source functions displayed is
shown in the following figure.
