Analyze Waveform Data

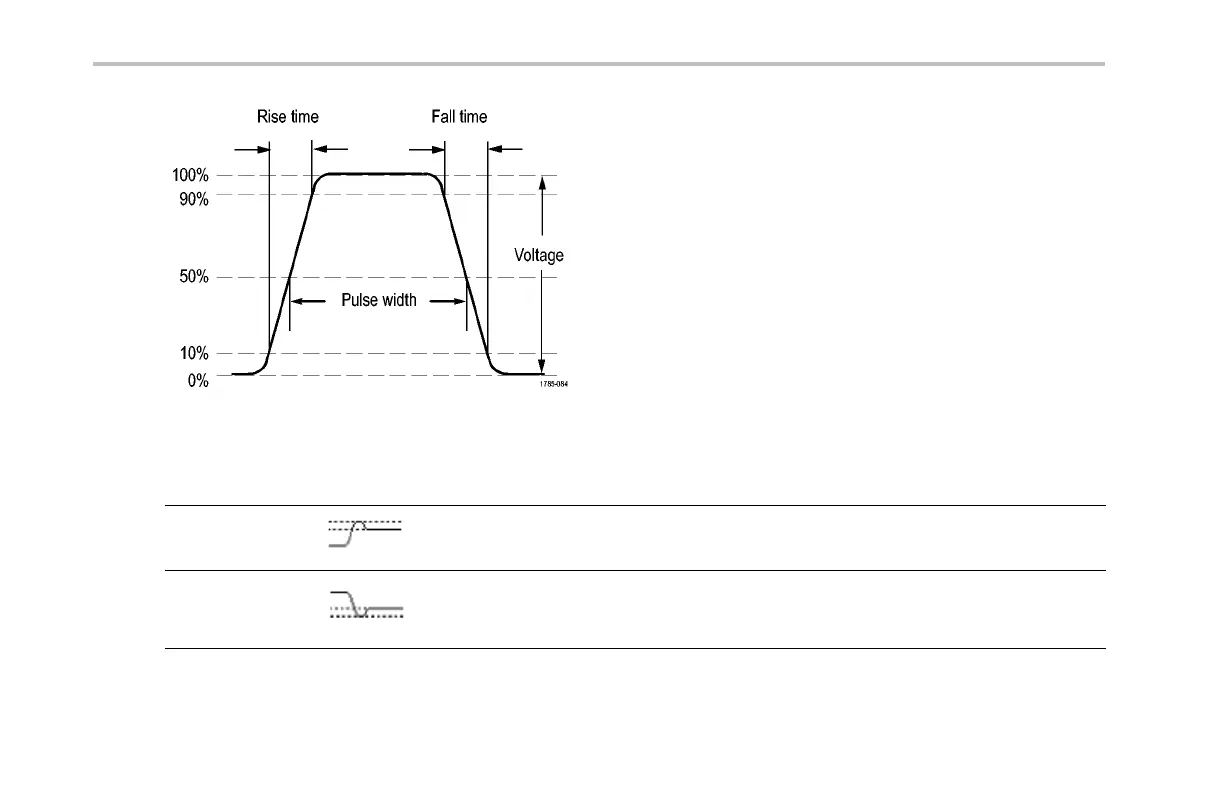

Amplitude Measurements
Measurement Description
Positive
Overshoot
This is measured over the entire waveform or gated region and is expressed a s:
Positive Overshoot = (Maximum – High) / Amplitude x 100% .
Negative
Overshoot
This is measured over the entire waveform or gated region and is expressed a s:
Negative Overshoot = (L ow – Minimum) / Amplitude x 100%.
