Get Acquainted with the Instrument

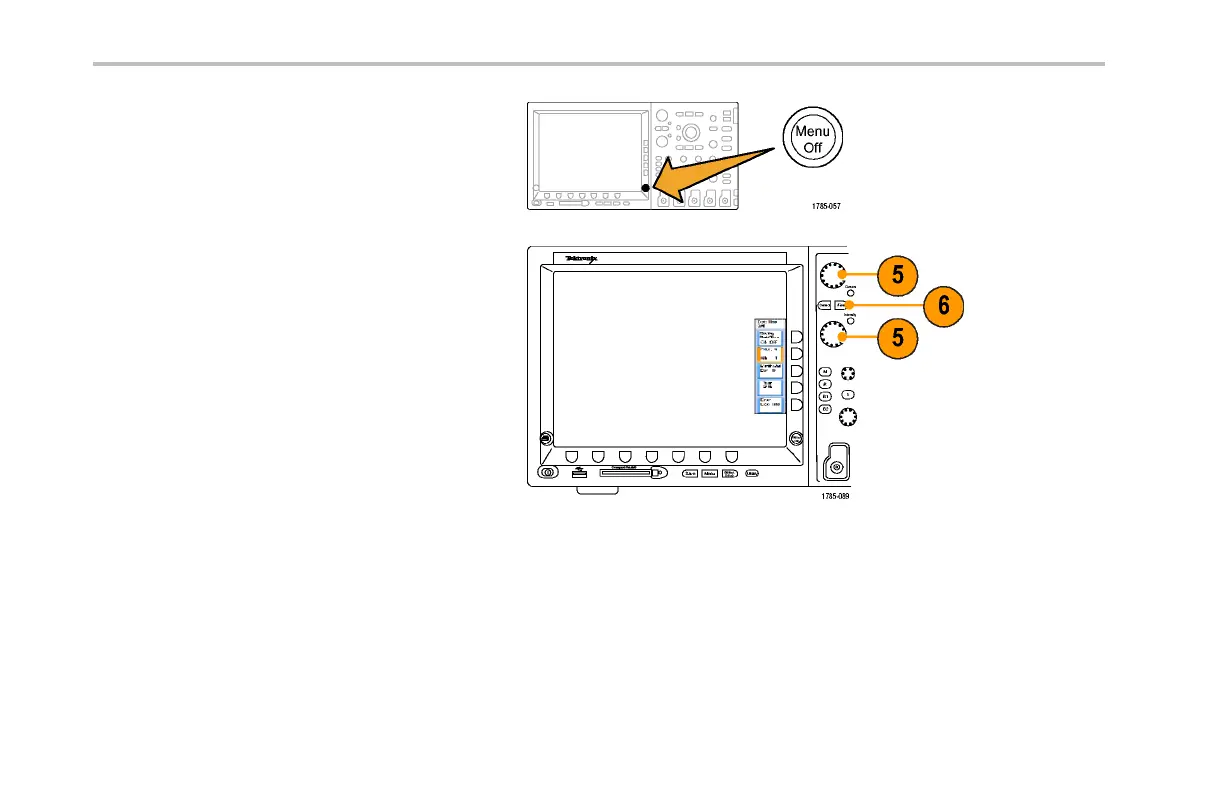

4. To remove a side-bezel menu, pu sh the
lower-bezel button again or push Menu
Off.
5. Certain menu choices require you to set a
numeric value to complet e the setup. Use
the u pper and lower multipurpose knobs a
and b to adjust values.
6. Push Fin e to turn off or on the ability to
make smaller adjustments.
Using the Menu Buttons
Use the menu buttons to perform many functions in the oscilloscope.
56 MSO4000 and DPO4000 S eries Oscilloscopes User Manual
