Get Acquainted with the Instrument

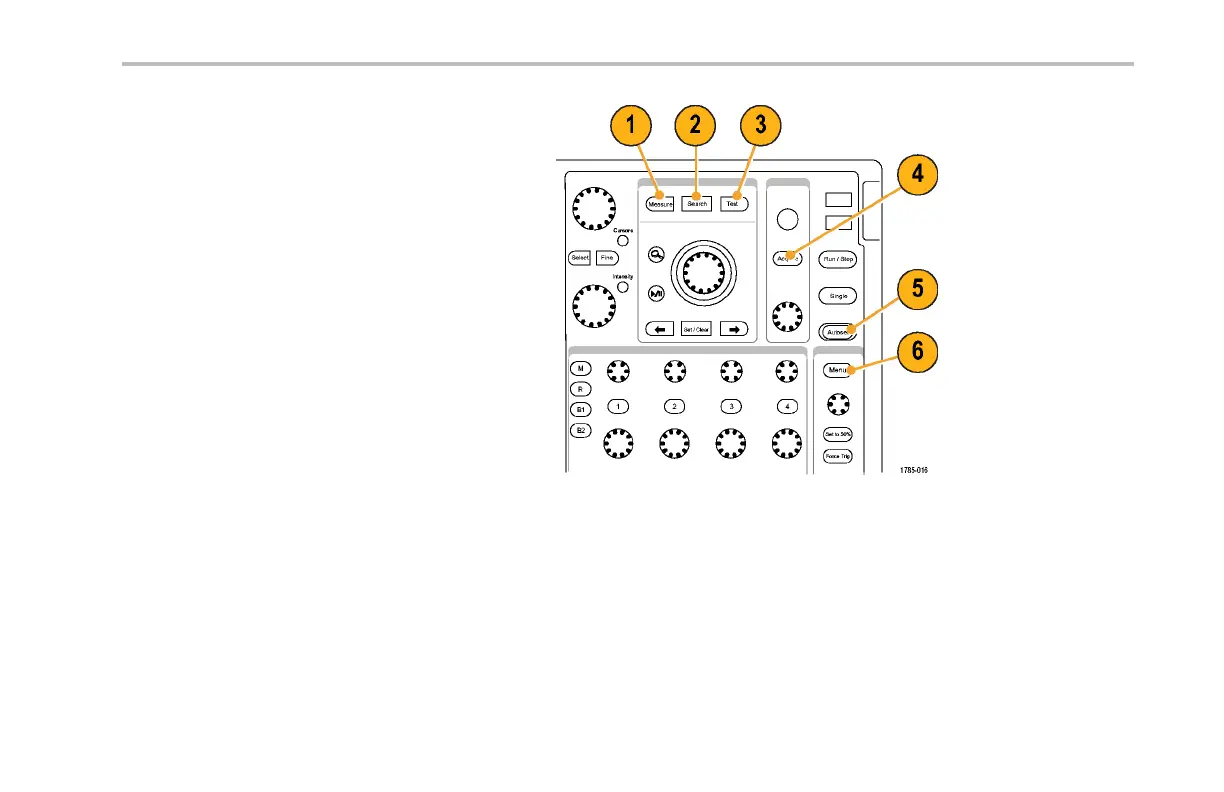

1. Measure. Push to perform automated
measurements o n waveforms or to
configure cursors.
2. Search. Push to search through an
acquisition for user-defined events/criteria.
3. Test. Push to activate advanced or
application-specific testing features.
4. Acquire. Push to set the acquisition mode
and adjust the record length.
5. Autoset. Push to perform an automatic
setup o f oscilloscope settings.
6. Trigger Menu. Push to specify trigger
settings.
MSO4000 and DPO4000 Series Oscilloscopes User Manual 57
