Get Acquainted with the Instrument

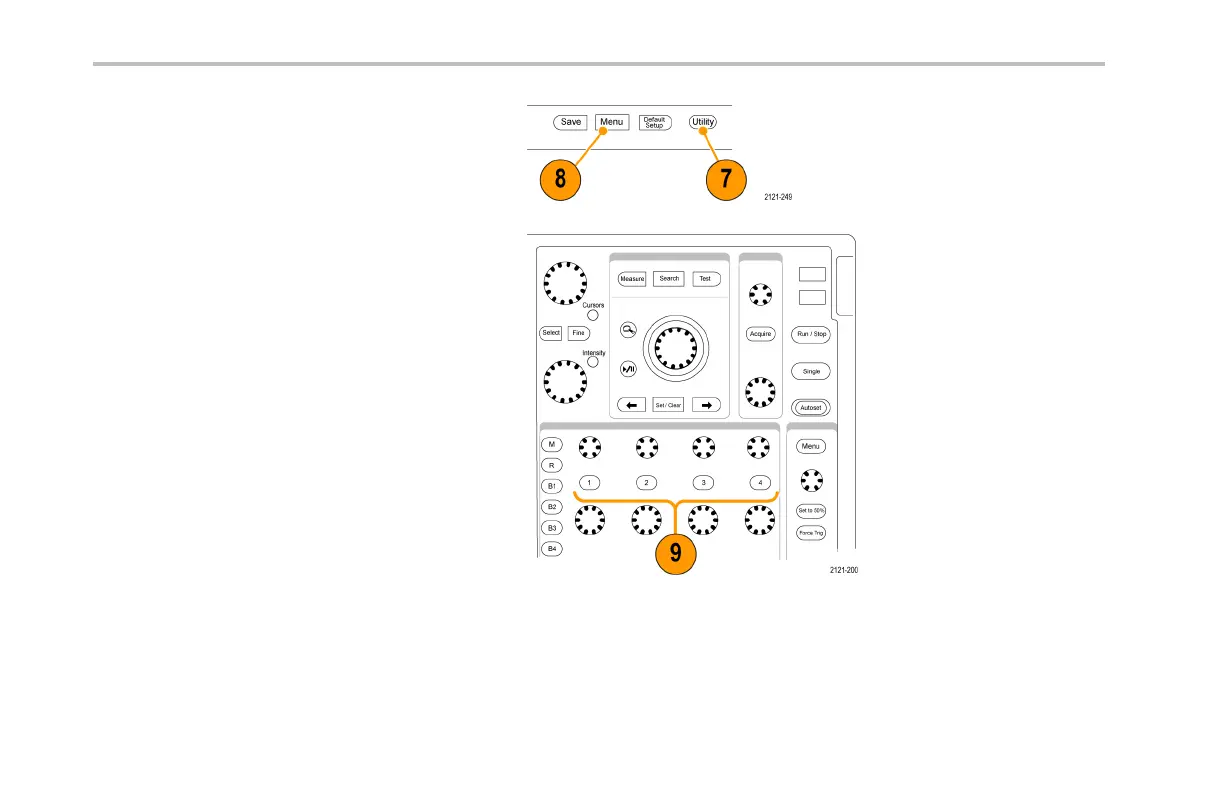

7. Utility. Push to activate the system utility
functions, such as selecting a language or
setting the date/time.
8. Save / Recall Menu. Pushtosave
and recall setups, waveforms, and
screen images to internal m emory, a
CompactFlash card, or a USB flash drive.
9. Channel 1,2,3,or4Menu. Pushtoset
vertical parameters for input waveforms
and to display or remove the corresponding
waveform from the display.
58 MSO4000 and DPO4000 S eries Oscilloscopes User Manual
