Triggering on a Serial Bus
Locate problems by triggering on a serial bus. Serial buses are available on MSO70000, MSO5000, and DPO5000 Series
instruments. Digital channels can be used in bus definitions on MSO instruments.
1. Set up a serial bus. (See page 50,
Setting Up a Bus.)

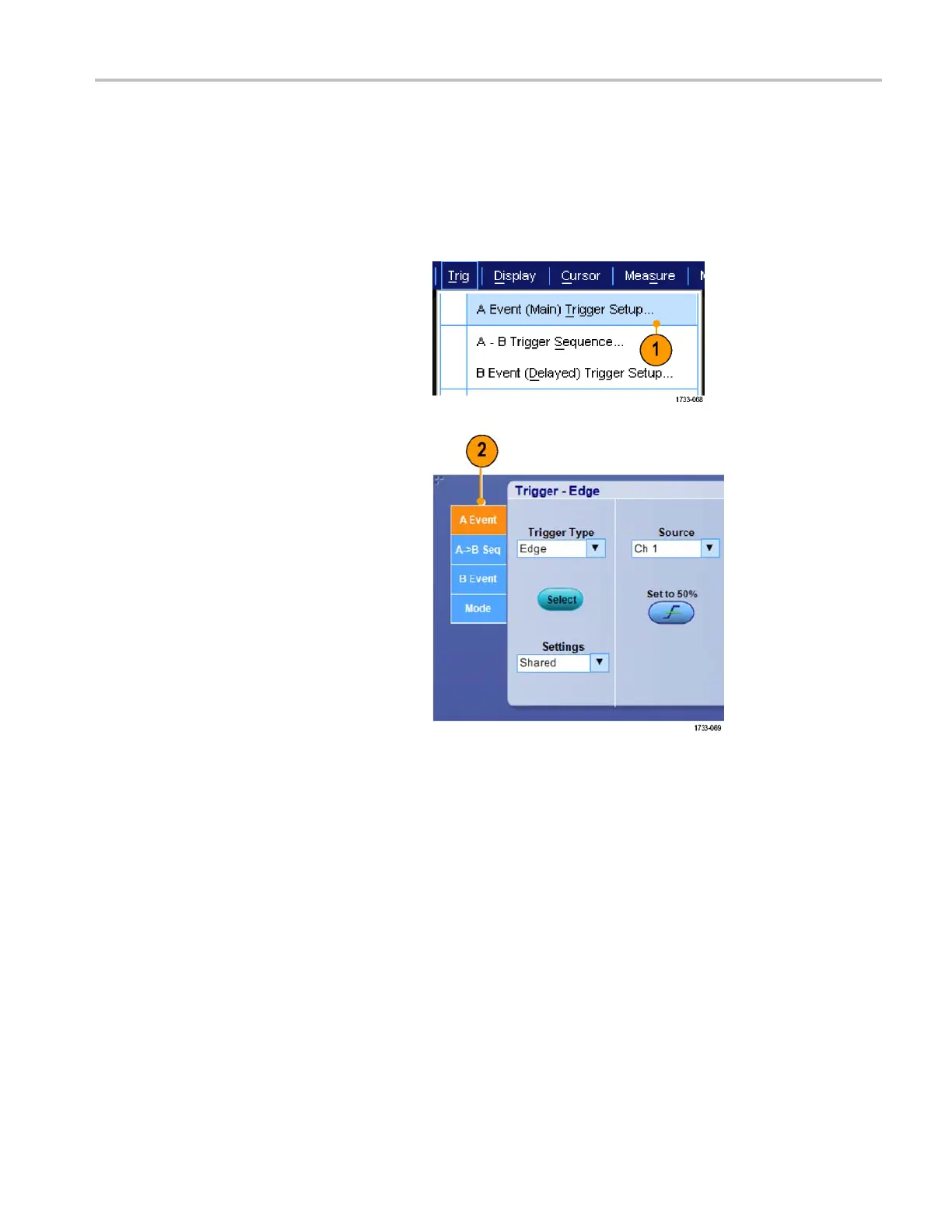

2. Select Trig > A Event (Main) Trigger
Setup....
3. Select the A Event tab.
MSO70000/C, DPO/DSA70000B/C, DPO7000, and MSO/DP O5000 Series U ser M anual 83
