Tektronix MSO70000/C Series User Manual

Saving and Recal
ling Inform ation

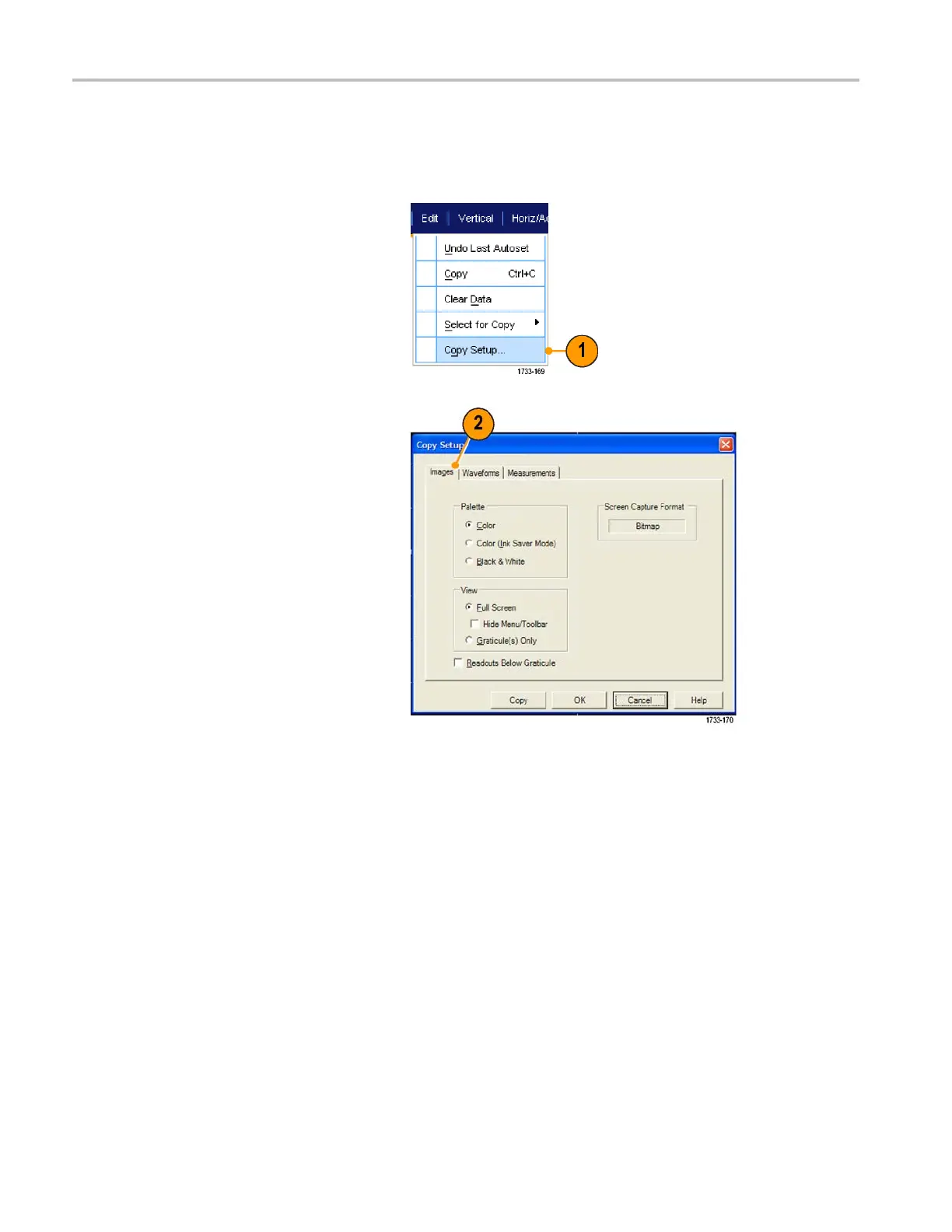

Copying Your Results to the C lipboard
Use the following procedure to set the output content and format for images, waveforms, or m easurements to be c opied
to the Microsoft clipboard.
1. Select Edit > Copy Setup....
2. Click the Images, Waveforms,or
Measurements tab, and then select the
desired options.
154 MSO70000/C, DPO/DSA70000B/C, DPO7000, and MSO/DP O5000 Series U ser M anual

Tektronix MSO70000/C Series Specifications

General

Input Coupling	AC, DC, GND
Channels	4 analog channels, 16 digital channels (MSO)
Memory Depth	Up to 1 Gpts
Input Impedance	50 Ω or 1 MΩ
Trigger Types	Edge, Logic, Timeout
Vertical Resolution	8 bits
Interface	USB, LAN, GPIB
Record Length	Up to 1 Gpts
Sample Rate	Up to 100 GS/s (MSO70000C Series)
