Pinpoint Trigge
rs

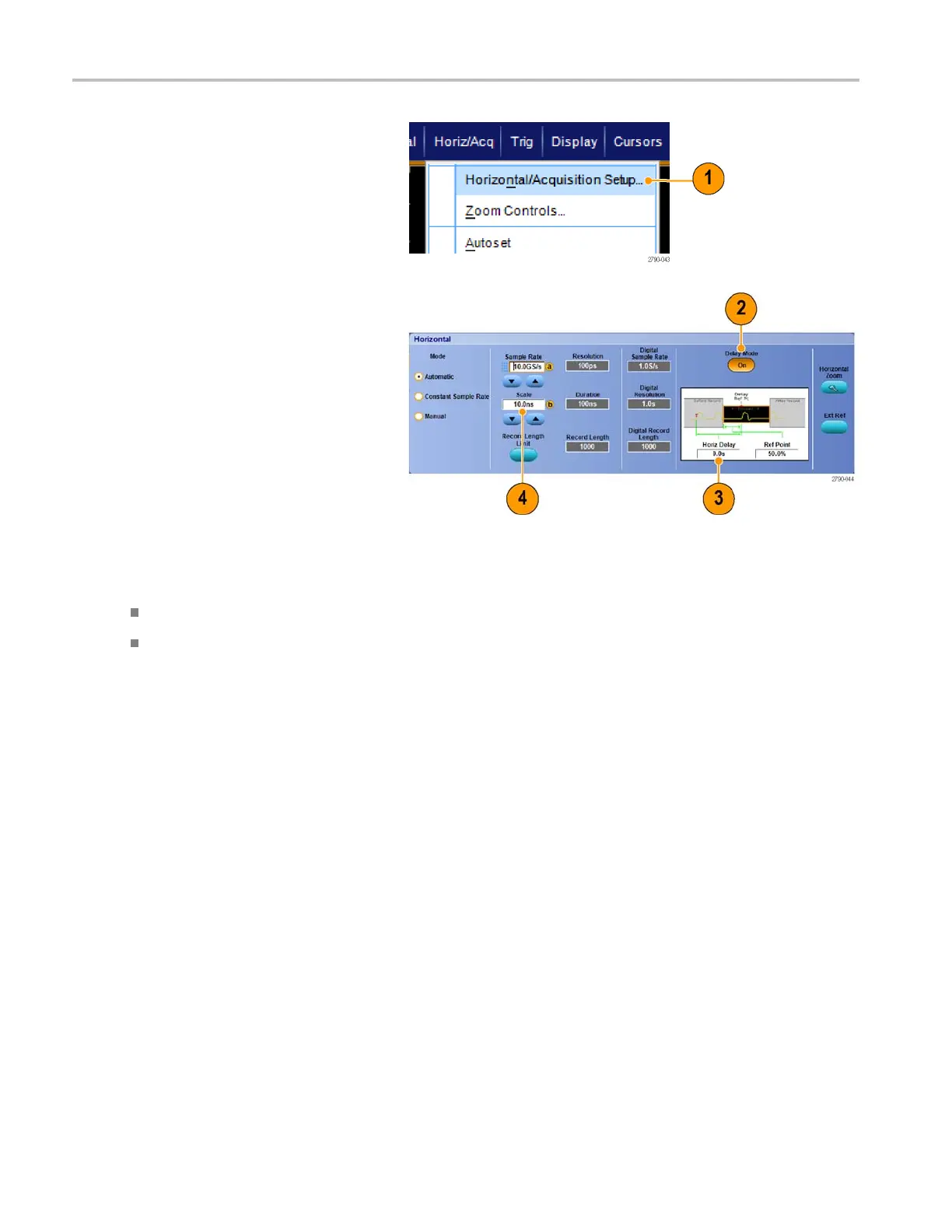

1. Select Horiz/Acq >
Horizontal/Acquisition Setup.
2. Push the Del
ay Mode button to toggle
delay mode on.
3. Adjust the d
elay time with the horizontal
POSITION control, or enter the delay
time in the control window.
4. Adjust the horizontal SCALE to acquire
the detai
l that you need.
Quick Tips
Use MultiView Zoom and Horizontal Delay together to magnify a delayed acquisition.
Toggle Horizontal Delay on and off to quickly compare signal details at two different areas of interest, one near the
trigger location and the other centered at the delay time.
