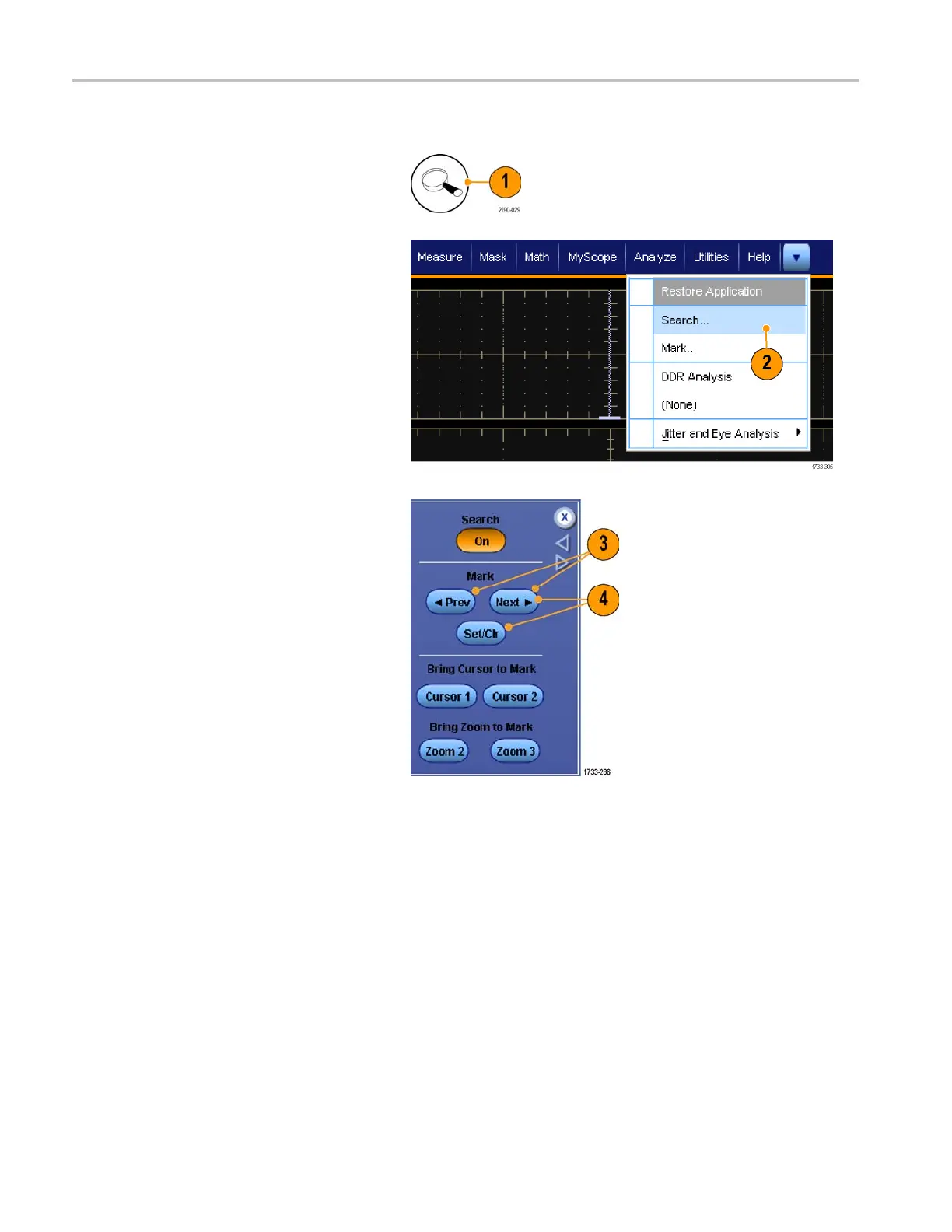

To Manually Set and Clear (d elete) Marks:
1. Push Multiview Zo om . Zoom 1 is used
with marks.
2. Select Analyze > Search.
3. Move (the zoom box) to the area on
the wavef
orm w here you want to set
(or clear) a search mark by turning a
multipurpose knob.
Push the
Next ( )orPrev()arrow
buttontojumptoanexistingmark.
4. Push Set Clr or the front panel Set/Clear
button.
If no se
arch mark is at the screen center,
the instrument will add one.
When a mark is created, the horizontal
zoom f
actor is saved. When you use
Next or Prev to move between marks,
the z oom factor is r estored.
106 MSO70000/C, DPO/DSA70000B/C, DPO7000, and MSO/DP O5000 Series U ser M anual
