Install Your Ins
trument

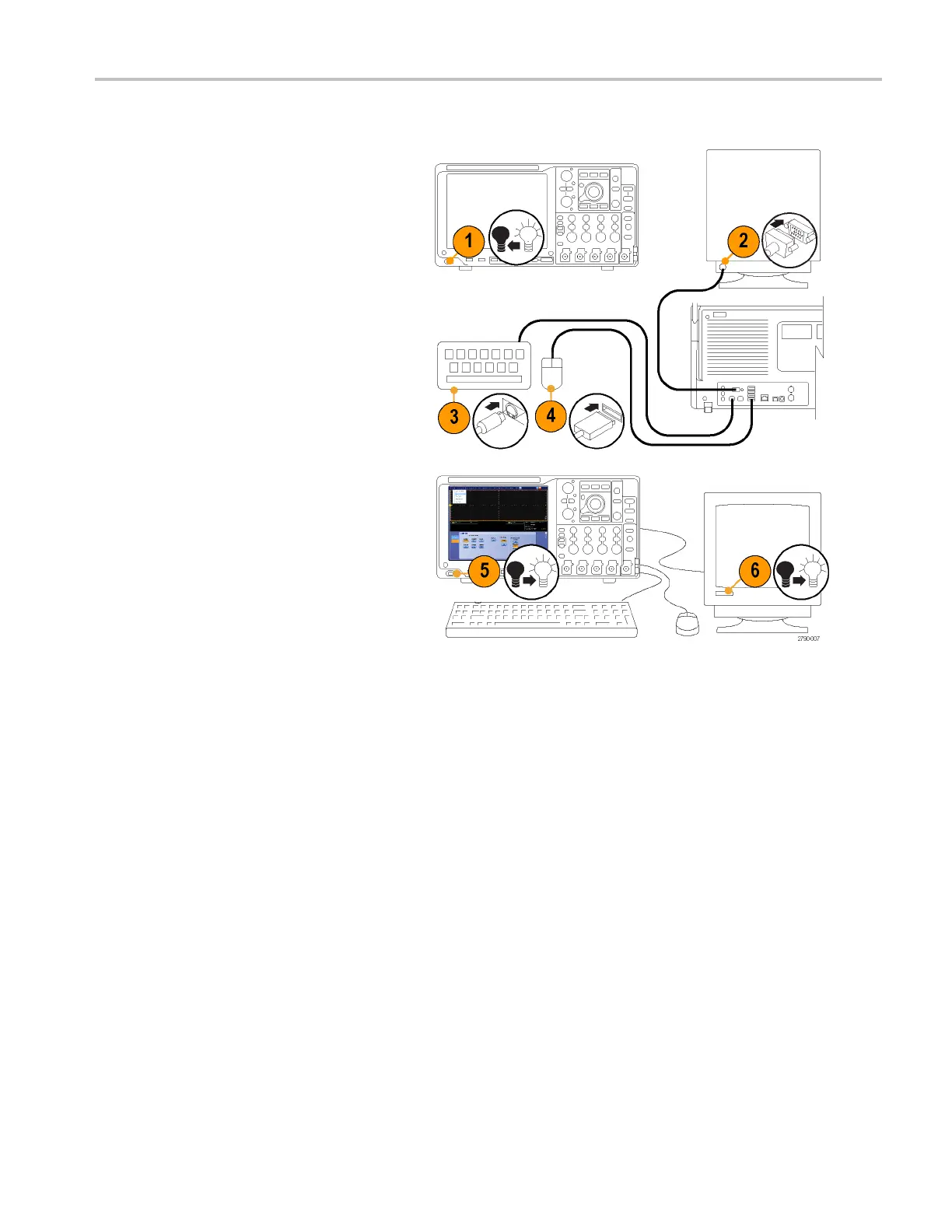

MSO5000 and DPO5000 M odels
1. Turn off power.
2. Connect second monitor.
3. Connect keyboard.
4. Connect m ouse.
5. Turn on instrument power.
6. Turn on monitor power.
MSO5000 and DPO5000 models
MSO70000/C, DPO/DSA70000B/C, DPO7000, and MSO/DP O5000 Series U ser M anual 13
