Acquisition

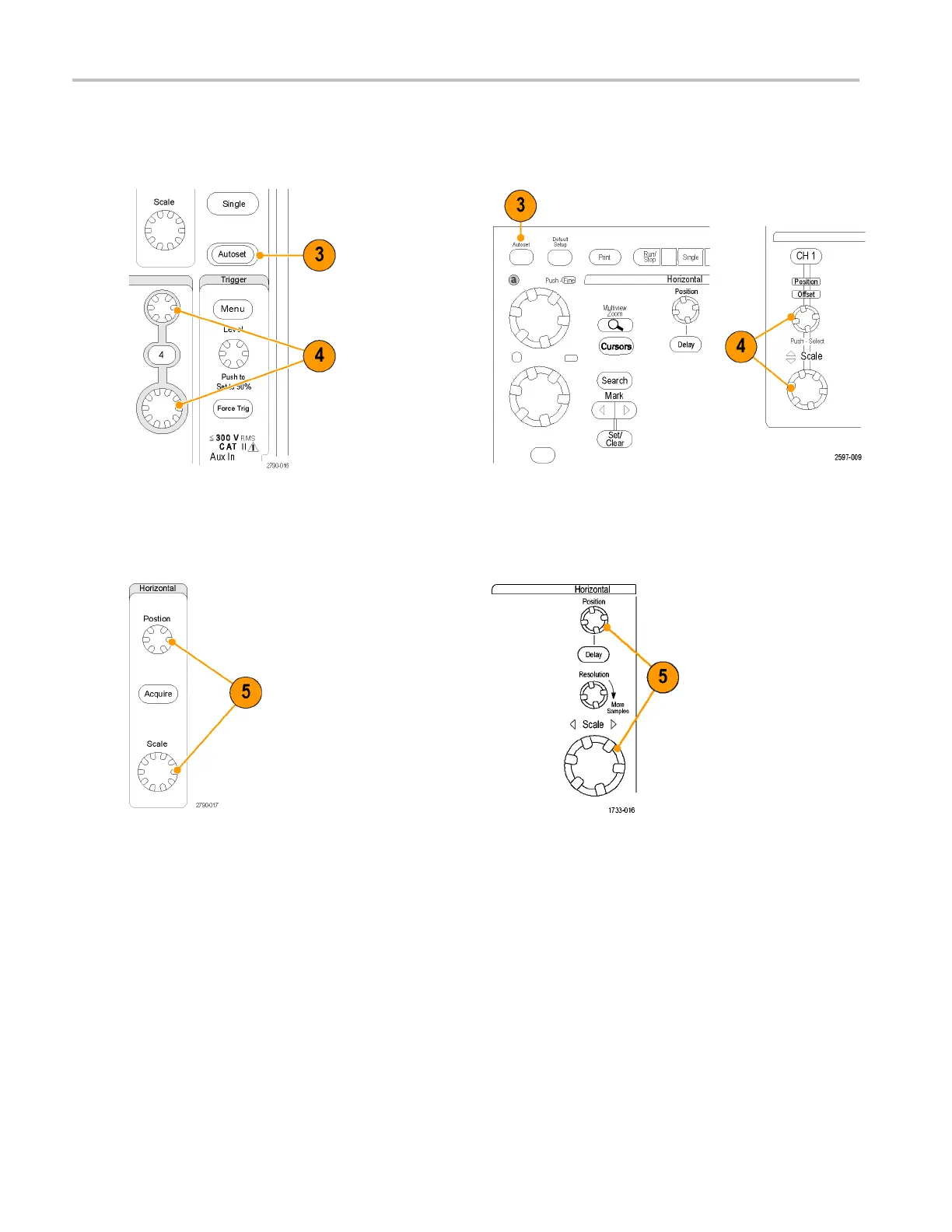

3. Push Autoset.
4. Adjust the ver
tical position, scale, and offset using the front-panel knobs.
MSO5000 a
nd DPO5000 Series
MSO70000/C, DSA70000B/C, DPO70000B/C, and DPO7000
Series
5. Adjust the horizontal position and scale using the front-panel knobs.
The horiz
ontal position determines the number of pretrigger and posttrigger samples.
MSO50
00 and DPO5000 Series
MSO70000/C, DSA70000B/C, DPO70000B/C, and DPO7000
Series
32 MSO70000/C, DPO/DSA70000B/C, DPO7000, and MSO/DP O5000 Series U ser M anual
